BODYWORK

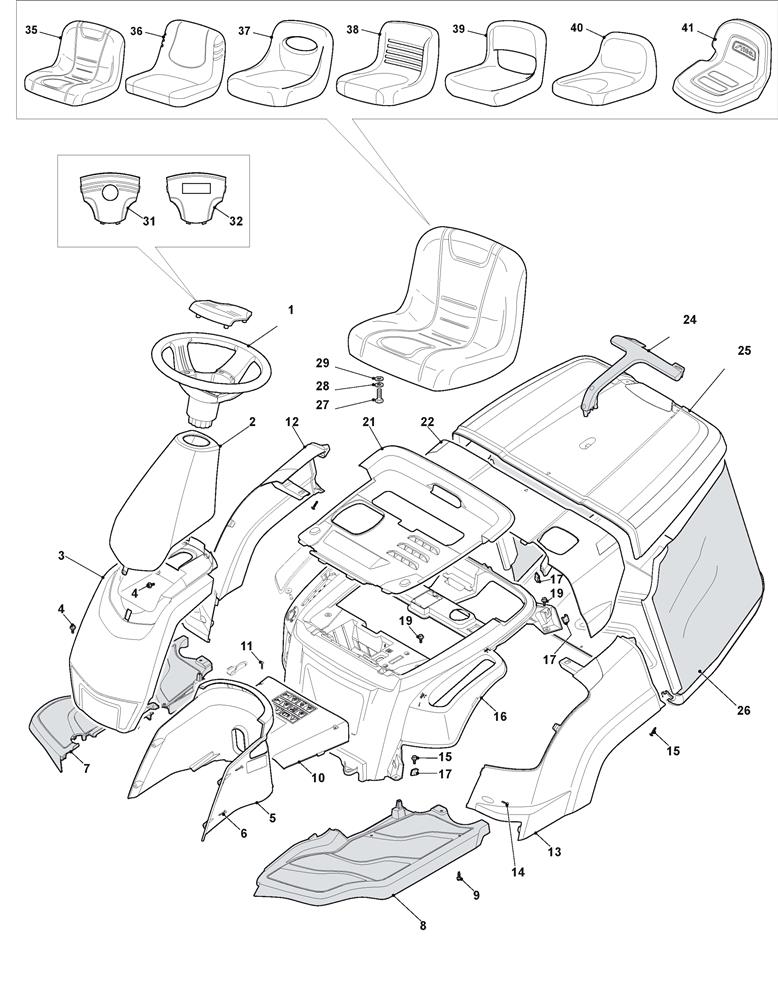

BODYWORK assembly details for Mountfield MTF 66 MQ (2T0050483/CAS) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325961220/0STEERING WHEEL F72 BLACK£53.42 Add to
002327110486/0UPPER STEERING COVER GREY GGP£26.18 Add to
003327110578/0FRONT STEERING COVER [DARK RED]£34.81 Add to
004125943010/0FLANGED SCREW£2.06 Add to
005327110483/0STEERING WHEEL COVER GGP GREY£30.26 Add to
006112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
007327500501/0RIGHT FOOTBOARD [BLACK]£33.39 Add to
008327500500/0LEFT FOOTBOARD [BLACK]£33.39 Add to
009112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
010327110566/0CENTRAL COVER GREY GGP NR66£18.53 Add to
011112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
012327110581/0R/H REAR COVER [DARK RED]£29.14 Add to
013327110582/0L/H REAR COVER [DARK RED]£29.14 Add to
014112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
015112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
016327110480/1FRAME COVER GREY GGP£61.60 Add to
017112437507/0RAPID FIXING PLATE M6£2.06 Add to
019125943010/0FLANGED SCREW£2.06 Add to
021327110481/1BLACK ENGINE COVER£30.26 Add to
022327110580/0REAR COVER [DARK RED]£27.49 Add to
024327394004/0GRASSCATCHER HANDLE [BLACK]£13.00 Add to
025327110579/0GRASSCATCHER TOP COVER [RED]£57.52 Add to
026184106074/0GRASSCATCHER BAG 66cm£87.85 Add to
027112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
028112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
029112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
032325580504/0STEERING WHEEL CAP RECTANGLE£6.42 Add to
040125722487/0LOW BACK SUPPORT SEAT£146.16 Add to
