BODYWORK

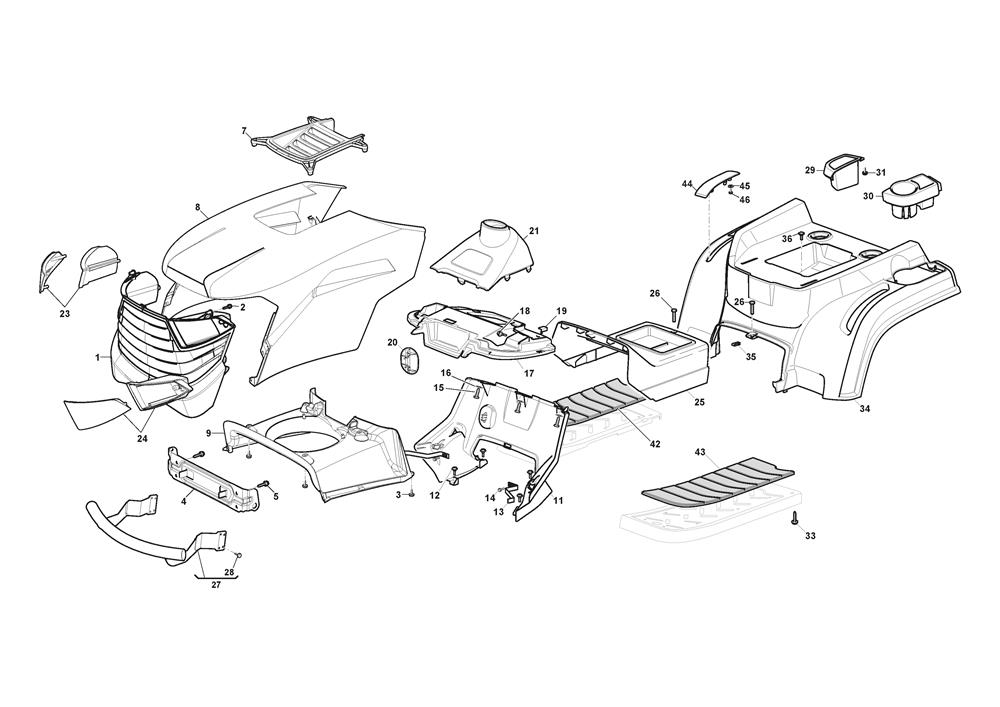

BODYWORK assembly details for Mountfield FREEDOM 30E (2T2200483/M21) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325077004/1FRONT HOOD-HORIZONTAL GRILL [BLACK]£61.71 Add to
002112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004325785551/1ENGINE HOOD SUPPORT£11.67 Add to
005112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
007325263324/0AIR INTAKE COVER [BLACK]£17.59 Add to
008325077014/0ENGINE HOOD [DARK RED] SDR£100.80 Add to
009325108107/0GREY NCS8000N BONNET AIR CONVEYOR SDR£49.92 Add to
011325785298/0DASHBOARD SUPPORT [BLACK]£29.30 Add to
012125943010/0FLANGED SCREW£2.06 Add to
013325270325/0DASHBOARD SUPPORT GUIDE£5.19 Add to
014112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
015112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
016112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
017325120290/0DASHBOARD (BLACK)£34.86 Add to
018125943010/0FLANGED SCREW£2.06 Add to
019325260003/0DASHBOARD GROMMET£2.06 Add to
020325207296/0PARK SLOT COVER (BLACK)£7.59 Add to
021325120291/0HIGH DASHBOARD (BLACK)£18.27 Add to
025325110541/0CENTRAL COVER (GREY)£40.81 Add to
026125943010/0FLANGED SCREW£2.06 Add to
027382869037/0SILENC.PROTECT PIPE ASSY SD 98£38.44 Add to
028112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
029325207198/0R/H WHEEL COVER HOLDER [BLACK]£9.23 Add to
030325207199/1L/H WHEEL COVER HOLDER [BLACK]£12.30 Add to
031112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
033112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
034325110480/1WHEELS COVER [RED]£144.07 Add to
035112437506/0DOUBLE PLATE£2.87 Add to
036125943010/0FLANGED SCREW£2.06 Add to
042325110384/0RIGHT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
043325110385/0LEFT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
044325207203/0COVER [BLACK]£4.82 Add to
045112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
046112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
