TRANSMISSION UNIT , HYDRO-GEAR T2-BDBE-2X1A-16X1

TRANSMISSION UNIT , HYDRO-GEAR T2-BDBE-2X1A-16X1 assembly details for Mountfield 1328H (2T0210483/M18) 2021 model

Parts list

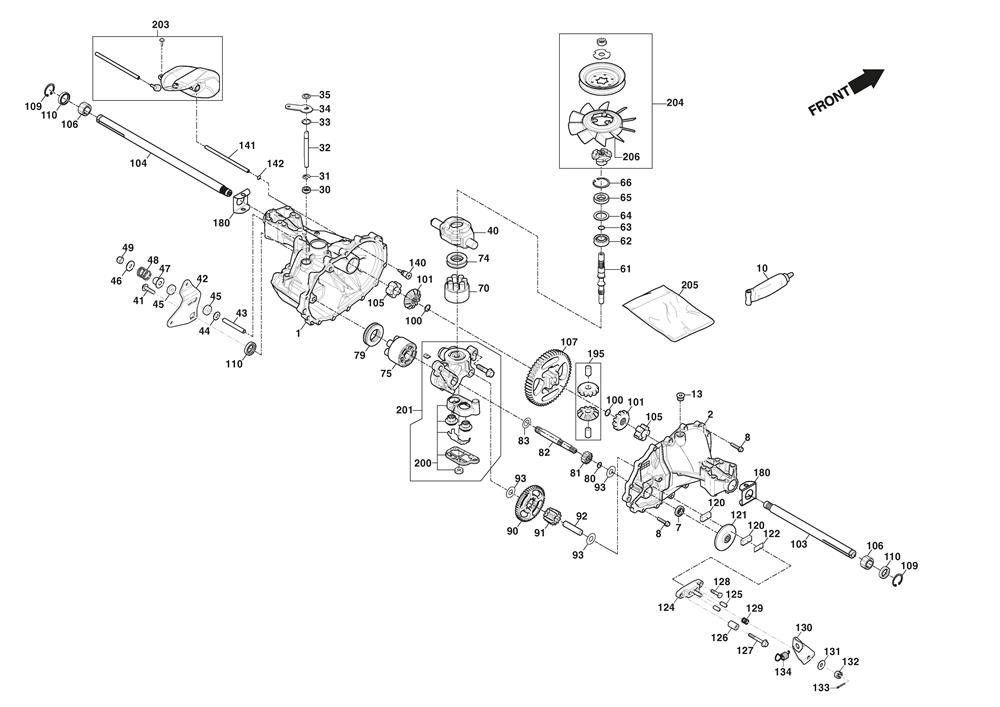

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118870120/0MAIN HOUSING£685.16 Add to
002118870121/0SIDE HOUSING£488.41 Add to
007118870111/0OIL SEAL 0.50 X 1.00 X 0.25£10.93 Add to
030118870079/0SEAL 0.375 X 0.75 X 0.25£10.09 Add to
034118870091/0BY-PASS ARM£14.74 Add to
040118870090/0SWASH PLATE£102.48 Add to
042118870110/0CONTROL ARM£117.57 Add to
045118870087/0PLASTIC WASHER 0.32 x 0.80 x 0.21£4.52 Add to
047118870118/0FLANGED SPACER£4.23 Add to
048118870073/0COMPRESSION SPRING£10.36 Add to
0499743-5121-32LOCK NUT 5/16"£1.79 Add to
061118870092/0INPUT DRIVE SHAFT£91.58 Add to
065118870124/0SEAL KIT£72.18 Add to
070118870125/0PUMP BLOCK ASSEMBLY£132.33 Add to
074118870093/0THRUST BEARING 27 x 47 x 14£41.16 Add to
0751139-2063-01CYLINDER BLOCK£232.10 Add to
0791139-2021-01THRUST BEARING£43.89 Add to
082118870095/0MOTOR SHAFT£69.43 Add to
092118870099/0JACKSHAFT PIN£23.15 Add to
100118870072/0RETAINING RING£6.27 Add to
104118870115/0AXLE SHAFT 0.75 x 16.48 (L/H KEY)£128.77 Add to
105118870086/0AXLE BUSH£10.56 Add to
106118870085/0AXLE BUSH£8.44 Add to
1101139-2204-01SEAL£8.87 Add to
120118870066/0BRAKE PAD£8.19 Add to
121118870101/0BRAKE£24.32 Add to
122118870067/0BRAKE PAD PLATE£4.52 Add to
124118870119/0BRAKE CALLIPER£40.47 Add to
125118870069/0BRAKE PIN£5.87 Add to
130118870064/0BRAKE ARM£36.52 Add to
133118870065/0COTTER PIN 3/32 X 3/4£4.52 Add to
141118870102/0TUBE 0.16 X 0.28 X 5.5£6.09 Add to
180118870112/0SPRING PLATE£13.47 Add to
195118870126/0GEARS & PINS KIT£58.25 Add to
201118870128/0CENTER SECTION KIT£1,000.24 Add to
203118870122/0EXPANSION TANK KIT£65.69 Add to
2041139-2202-01HYDRO FAN KIT£142.15 Add to
205118870124/0SEAL KIT£72.18 Add to
206118870131/0HYDRO GEAR FAN [AJBF/BDBE-2X3C/2X1A-16X1£28.90 Add to
