Optionals on Request

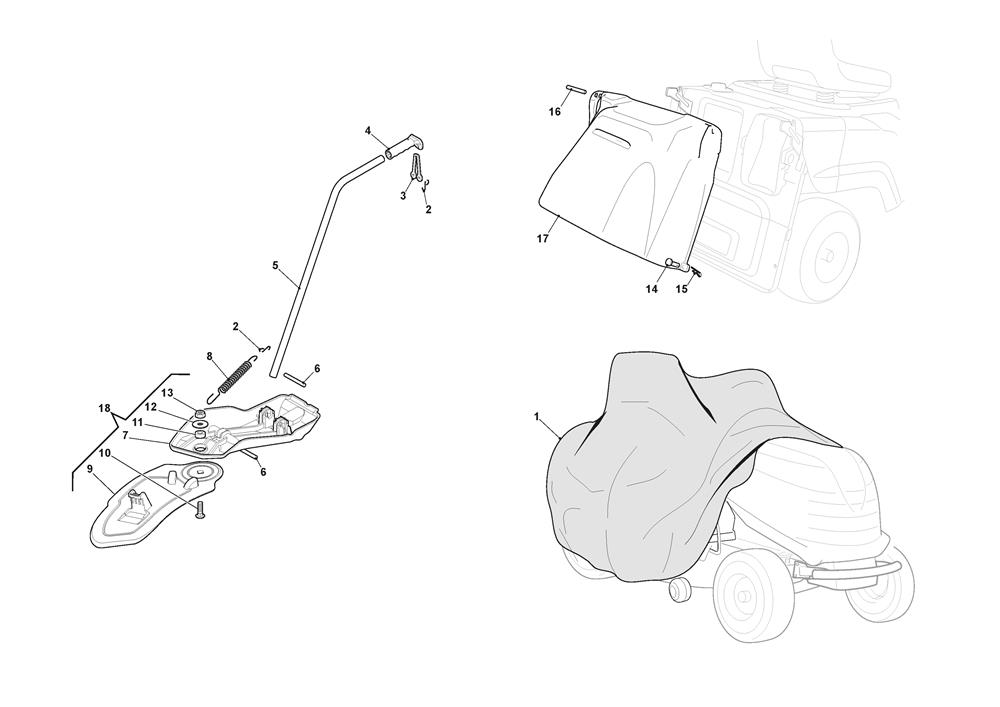

Optionals on Request assembly details for Mountfield 827M (2T0050483/MTF) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-9177-01	RIDE-ON MOWER COVER [STIGA]	£65.50	Add to
002	125253004/0	FIXING HOOK	£2.06	Add to
003	125840011/1	LOCKING RUBBER TIE	£6.27	Add to
004	325280000/1	HAND GRIP KIT MULCHING RO	£3.55	Add to
005	327394003/2	MULCHING PLUG HANDLE F72	£68.42	Add to
006	127510116/0	HANDLE FULCRUM PIN x MULCHING F72	£8.73	Add to
007	384150052/0	MULCHING BAFFLE ASS.Y NR66	£25.21	Add to
008	125430218/1	DECK LIFT SPRING	£6.14	Add to
009	125430218/1	DECK LIFT SPRING	£6.14	Add to
010	112818700/0	SCREW M8 x 25	£2.81	Add to
011	127047013/1	BUSH	£2.18	Add to
012	322672152/0	ANTI-FRICTION WASHER 8.2 x 30 x 0.8	£1.91	Add to
013	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
014	125510022/1	PIN	£3.40	Add to
015	124487998/0	R CLIP D=2	£2.06	Add to
016	127510127/0	DEFLECTOR PIN	£3.15	Add to
017	327600181/0	DEFLECTOR GUARD	£92.95	Add to
018	384150052/0	MULCHING BAFFLE ASS.Y NR66	£25.21	Add to
