Cylinder Barrel

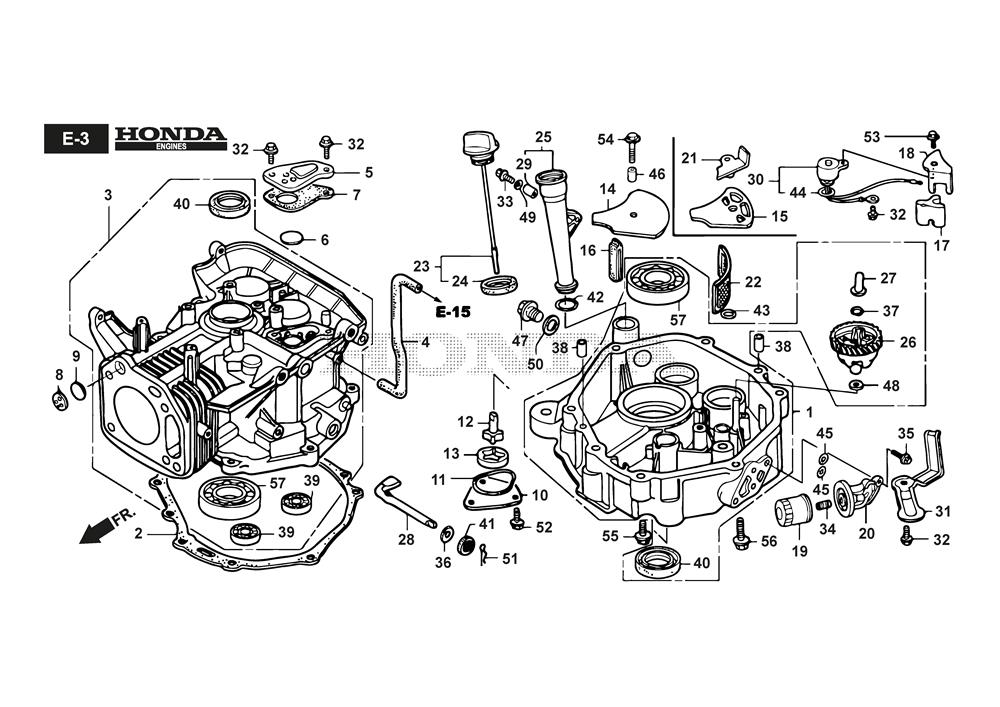

Cylinder Barrel assembly details for Mountfield 3600SH (2T0410383/M11) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551713/0PAN ASSY., OIL£606.68 Add to
002118551720/0PACKING, OIL PAN£19.50 Add to
003118551721/0BARREL ASSY., CYLINDER£1,860.35 Add to
004118551747/0TUBE, BREATHER£16.22 Add to
005118551753/0CAP, BREATHER CHAMBER£15.13 Add to
006118551754/0VALVE, BREATHER£7.10 Add to
007118551756/0PACKING, BREATHER CAP£3.69 Add to
010118551885/0COVER, OIL PUMP£5.87 Add to
011118551886/0O-RING, PUMP COVER£5.19 Add to
012118551891/0ROTOR COMP., INNER£37.08 Add to
013118551892/0ROTOR, OIL PUMP OUTER£30.26 Add to
014118551893/0PLATE, OIL FILTER£7.78 Add to
022118551896/0SCREEN, OIL FILTER£28.90 Add to
023118551907/0CAP ASSY., OIL FILLER£24.95 Add to
025118551909/0EXTENSION COMP., OIL FILLER£37.08 Add to
026118551969/0GOVERNOR ASSY.£49.34 Add to
027118551972/0SLIDER, GOVERNOR£4.64 Add to
028118551979/0SHAFT, GOVERNOR ARM£17.04 Add to
037118552244/0GOVERNOR HOLDER CLIP£1.74 Add to
039118552248/0BEARING, RADIAL BALL, 6202£26.18 Add to
040118552250/0OIL SEAL, 35X52X8 (NOK)£21.40 Add to
047118552272/0BOLT, DRAIN PLUG, 20MM£7.63 Add to
048118552273/0PLAIN WASHER 6MM£1.74 Add to
050118552274/0WASHER, DRAIN PLUG, 20MM£2.87 Add to
057118552278/0BEARING, RADIAL BALL, 6207£49.34 Add to
058118551902/0CAP ASSY., DRAIN£12.82 Add to
060118551915/0ADAPTER, OIL DRAIN EXTENSION£32.99 Add to
