Guards

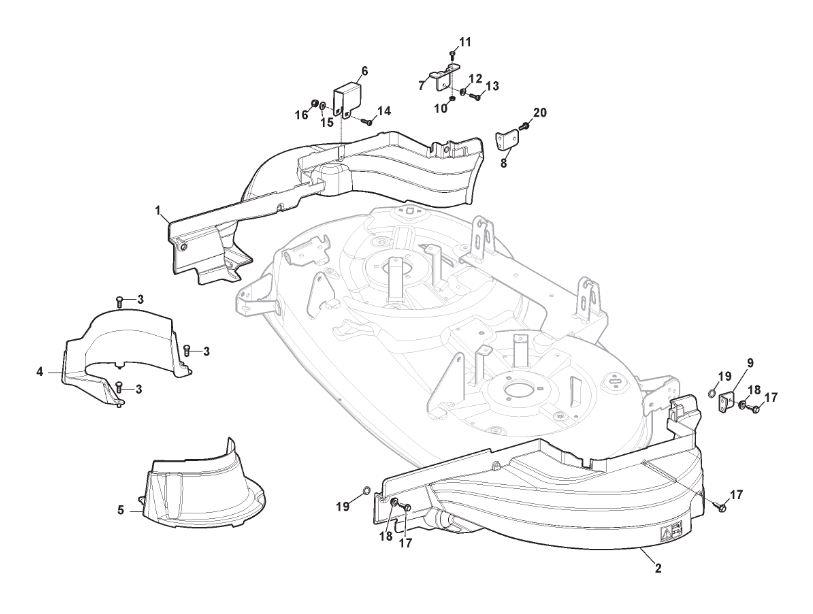

Guards assembly details for Mountfield 2243H (2T1845283/M17) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325060187/0	R/H INTERNAL BELT COVER MTR108 SD	£62.97	Add to
002	325060188/0	L/H INTERNAL BELT COVER MTR108 SD	£62.97	Add to
003	112815210/0	SCREW M6 x 20	£2.06	Add to
004	325060185/0	R/H INTERNAL BELT COVER MTR108 SD	£30.07	Add to
005	325060186/0	L/H INTERNAL BELT COVER MTR108 SD	£30.07	Add to
006	325774267/0	BRACKET	£7.57	Add to
007	325774423/0	CENTRAL BRACKET	£3.15	Add to
008	325774425/0	REAR R/H BRACKET	£3.00	Add to
009	325774421/0	REAR L/H BRACKET	£3.00	Add to
010	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
011	112788910/0	HEX-HEAD SCREW M5 x 16	£2.06	Add to
012	325160039/0	SPACER	£2.06	Add to
013	112735120/0	FLANGED SELF-TAP SCREW 6.3 x 16	£2.06	Add to
014	112815255/0	CUP SQUARE BOLT M6 x 20	£1.79	Add to
015	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
016	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
017	125943014/0	FLANGED SCREW CARTER MOA FIXING	£9.82	Add to
018	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
019	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
020	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
