Body

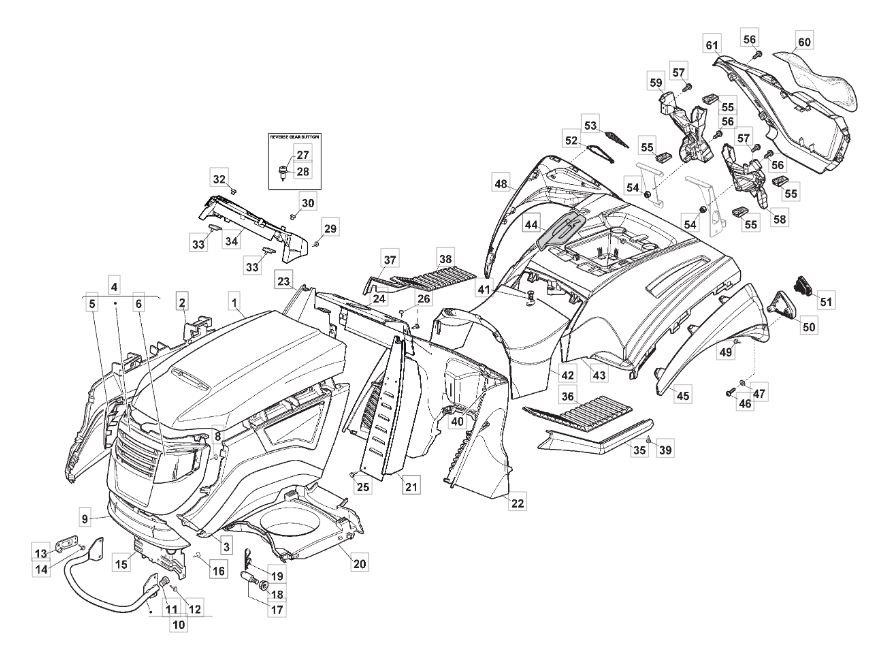

Body assembly details for Mountfield 2243H (2T1845283/M17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325076977/0	UPPER ENGINE HOOD [DARK RED]	£109.29	Add to
002	382394653/0	BONNET R/H [DARK RED]	£89.43	Add to
002	382394653/1	BONNET R/H [DARK RED]	£84.77	Add to
003	382394654/0	BONNET L/H [DARK RED]	£94.13	Add to
003	382394654/1	BONNET L/H [DARK RED]	£89.43	Add to
004	382394613/0	FRONT HOOD [BLACK]	£84.77	Add to
005	325410876/0	RIGHT HEADLIGHTS GRILL	£9.14	Add to
006	325410877/0	LEFT HEADLIGHTS GRILL	£9.14	Add to
008	112735403/0	FLANGED HEX-HEAD SCREW D=6 x 18	£2.06	Add to
009	325076870/1	LOWER FRONT HOOD [BLACK]	£16.91	Add to
010	382869025/0	FRONT BUMPER BAR	£117.75	Add to
011	118737860/0	END CAP D=40	£2.06	Add to
012	112735120/0	FLANGED SELF-TAP SCREW 6.3 x 16	£2.06	Add to
013	325547159/1	PLATE	£5.05	Add to
014	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
015	325774301/2	HOOD SUPPORT	£18.13	Add to
016	112735406/0	FLANGED HEX-HEAD SCREW 6 X 22	£2.06	Add to
017	125510169/1	BONNET PIN (ROUND VERSION)	£3.15	Add to
018	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
019	124487998/0	R CLIP D=2	£2.06	Add to
020	325108031/0	INTAKE CONVEYOR	£57.52	Add to
021	382785021/9	LEFT DASHBOARD SUPPORT	£41.16	Add to
022	325785229/1	DASHBOARD SUPPORT	£68.48	Add to
023	382785022/10	RIGHT DASHBOARD SUPPORT	£42.53	Add to
024	382785137/1	CENTRAL DASHBOARD SUPPORT	£12.27	Add to
025	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
026	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
027	325605003/0	PUSH BUTTON REVERSE GEAR	£42.51	Add to
028	325256250/0	THREADED RING NUT	£2.87	Add to
029	112728440/0	SELF-TAPPING SCREW 4.8 x 13	£1.79	Add to
030	325120233/0	CAP (OBSOLETE)	N/A
032	125120200/0	CAP (OBSOLETE)	N/A
033	125260000/0	ANTI-VIBRATION RUBBER GROMMET	£3.41	Add to
034	325120266/0	DASHBOARD [GREY] TX	£43.89	Add to
035	325599005/0	LEFT FOOTBOARD PROFILE [BLACK]	£17.64	Add to
036	325110279/0	L/H FOOTBOARD COVER [BLACK]	£26.18	Add to
037	325599004/0	RIGHT FOOTBOARD PROFILE [BLACK]	£16.22	Add to
038	325110278/1	R/H FOOTBOARD COVER [BLACK]	£26.18	Add to
039	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
040	112735420/0	FLANGED SCREW D=6 x 16	£4.23	Add to
041	125580020/2	SPRING TENSIONED SCREW	£7.23	Add to
042	325110507/0	CENTRAL COVER [GREY]	£35.71	Add to
043	325109798/0	WHEELS COVER [DARK RED]	£114.74	Add to
044	325207129/0	CAN HOLDER COVER [BLACK]	£24.34	Add to
044	325207129/1	CAN HOLDER COVER [BLACK]	£24.34	Add to
045	325207267/0	L/H REAR SIDE COVER [GREY]	£21.26	Add to
046	112728689/0	SCREW KA50 x 12	£1.79	Add to
047	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
048	325207266/0	R/H REAR SIDE COVER [GREY]	£21.26	Add to
049	112728686/0	TAPTITE SCREW KA50 X 16	£1.76	Add to
050	325596502/0	L/H REAR REFLECTOR SUPPORT	£4.37	Add to
051	325069101/0	L/H REAR REFLECTOR [RED]	£3.83	Add to
052	325596501/0	R/H REAR REFLECTOR SUPPORT	£4.37	Add to
053	325069100/0	R/H REAR REFLECTOR [RED]	£3.83	Add to
054	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
055	112437507/0	RAPID FIXING PLATE M6	£2.06	Add to
056	9893-0616-16	SCREW M6 x 16	£2.47	Add to
057	112735420/0	FLANGED SCREW D=6 x 16	£4.23	Add to
058	325785526/0	L/H REAR COVER SUPPORT [BLACK]	£13.77	Add to
059	325785525/0	R/H REAR COVER SUPPORT [BLACK]	£13.77	Add to
060	325207268/0	REAR FUEL TANK COVER [BLACK]	£15.41	Add to
061	325110490/0	REAR COVER [RED]	£58.87	Add to
