Grass-Catcher

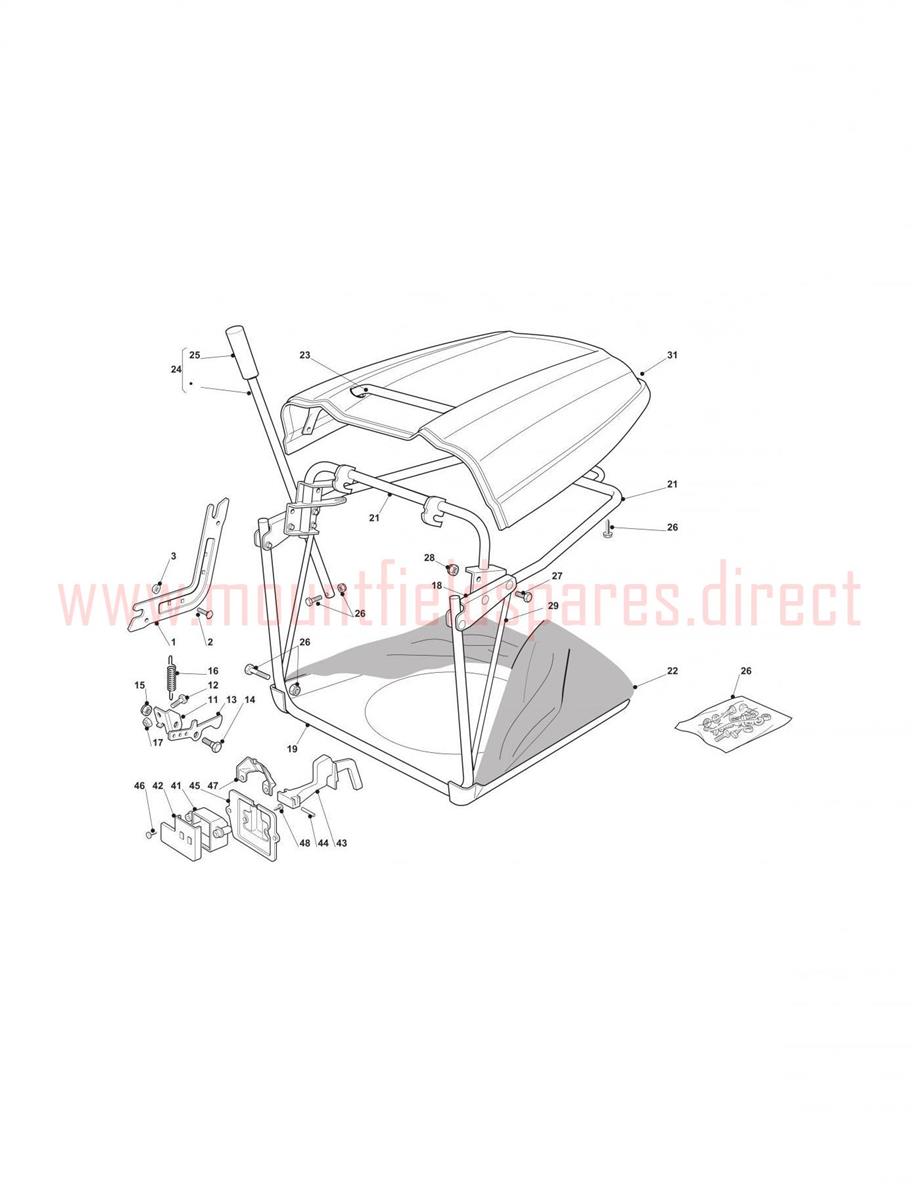

Grass-Catcher assembly details for Mountfield 3600SH (2T0410383) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325785275/0GRASSCATCHER SUPPORT BRACKET£11.18 Add to
0029897-0820-16SCREW M8 x 20£2.32 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
012112789000/0SCREW TE M5 x 12£2.06 Add to
013325774315/1GRASSCATCHER LOWER HOOKING CLAMP£4.37 Add to
014125510080/1CLAMP PIN£2.14 Add to
015112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
016122450432/0TENSION SPRING£2.06 Add to
017112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
018382774251/0SUPPORT BRACKET£8.45 Add to
019382800099/0GRASSCATCHER OPEN FRAME£32.92 Add to
020382800103/0GRASSCATCHER HOOKING FRAME£80.68 Add to
021382800101/1UPPER GRASSCATCHER FRAME£80.68 Add to
022182105973/0GRASSCATCHER BAG NJ 92-102cm£143.37 Add to
023382394003/0FRONT GRASSCATCHER HANDLE£20.49 Add to
024382869023/0TIPPING LEVER£28.68 Add to
025125394508/0KNOB£4.52 Add to
026382180048/0SCREW ASSEMBLY KIT [GRASSCATCHER]£7.51 Add to
027112815240/0SCREW M6 x 40£1.91 Add to
028112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
029325650115/0REINFORCING BAR£12.96 Add to
031325110320/0GRASSCATCHER COVER [RED]£107.93 Add to
041125600041/0MICRO PROTECTION COVER£2.32 Add to
042125600042/0MICRO PROTECTION COVER£3.41 Add to
043125318124/0MICRO CONTROL LEVER£2.32 Add to
044112400030/0PIN D=3 L=30£1.91 Add to
045325785272/0MICRO SWITCH COVER£5.50 Add to
046112728510/0SELF-TAP SCREW 4.8 x 13£3.15 Add to
047125600048/0MICRO SWITCH COVER£2.06 Add to
048112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
