Brake And Gearbox Controls

Brake And Gearbox Controls assembly details for Mountfield 3600SH (2T0410383) 2016 model

Parts list

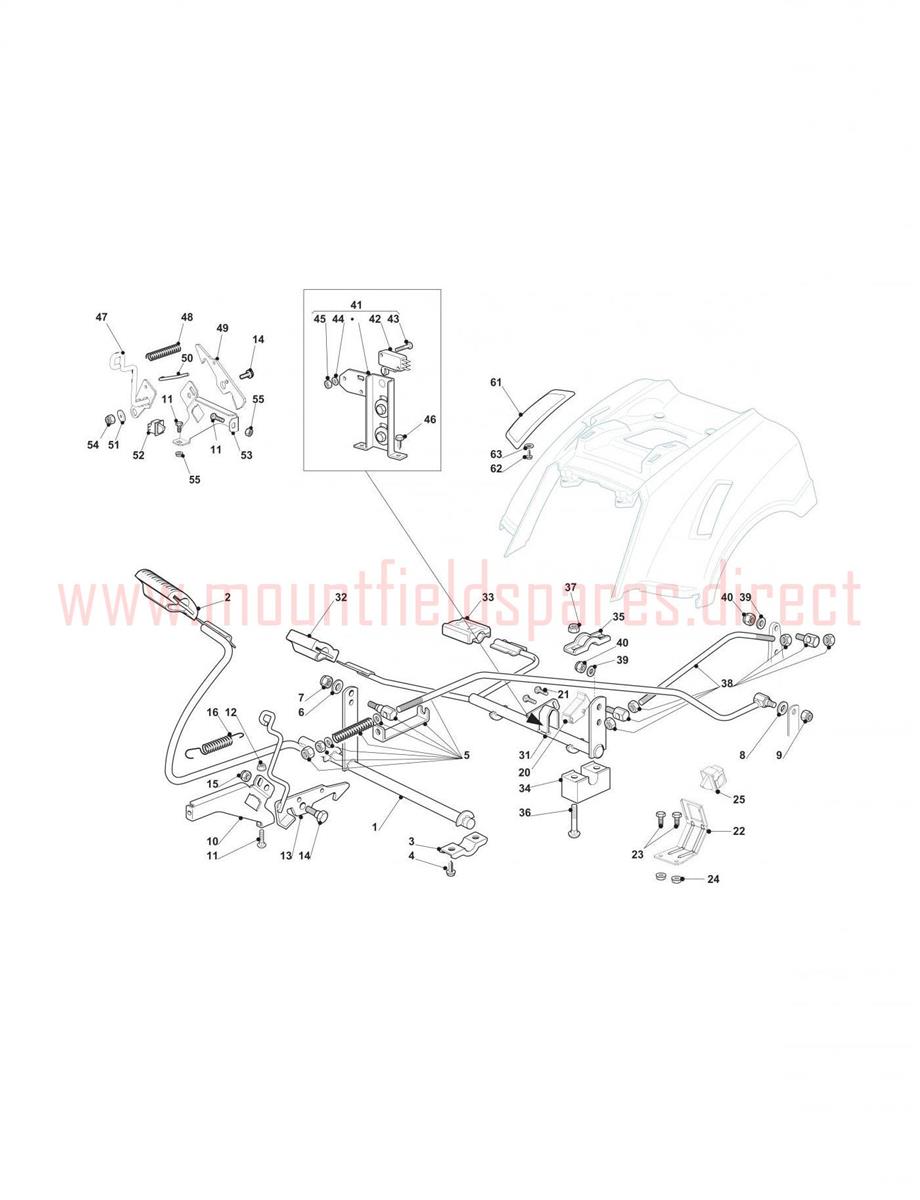

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500029/1CLUTCH/BRAKE PEDAL ASSEMBLY£65.87 Add to
002325110416/0PEDAL COVER [BLACK]£9.41 Add to
003327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
004112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
005382000542/1CONTROL ROD ASSEMBLY (TUFF TORQ)£41.16 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010325785261/0SUPPORT PLATE£5.87 Add to
011112815200/0SCREW TTDQ M6X16£2.06 Add to
012112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
013382318289/0PARKING BRAKE LEVER£26.18 Add to
014122524970/3SEAT FULCRUM PIN£2.06 Add to
016125430213/0SPRING£2.06 Add to
020325060034/1REVERSE SWITCH CAM£2.47 Add to
021112735404/0FLANGED HEX-HEAD SCREW D5 x 16 WZ£2.06 Add to
022325547375/0MICRO SUPPORT PLATE£5.87 Add to
023112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
025119410614/0MICRO SWITCH N.C.£6.55 Add to
031382000605/1GEAR LEVER ASSEMBLY£69.78 Add to
032325110417/0FRONT PEDAL COVER [BLACK]£9.41 Add to
033325110418/0REAR PEDAL COVER [BLACK]£9.41 Add to
034325785185/0AXLE SUPPORT BLOCK£4.10 Add to
036112815245/0SCREW M6 x 45£2.06 Add to
037112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
038382000543/0FEED/REVERSE GEAR CONTROL ROD£31.26 Add to
039112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
040112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
041382394853/0LCMICRO SWITCH ASSEMBLY£57.52 Add to
042119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
043112735602/0"SELF-FORMING SCREW M3 x 20 ""TAPTITE""£2.06 Add to
044112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
045112290791/0HEXAGON NUT M3 UNI 5588 ACC.6S£2.06 Add to
046112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
049325253007/1PARKING BRAKE HOOK£6.69 Add to
050125033119/0ROD£7.36 Add to
051122041980/0SPACER ROLLER BUSH£2.06 Add to
052119410622/1MICRO SWITCH N.O.£7.10 Add to
054112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
061325207171/0COVER [HYDRO]£7.97 Add to
062112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
063112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
