Guards And Conveyor

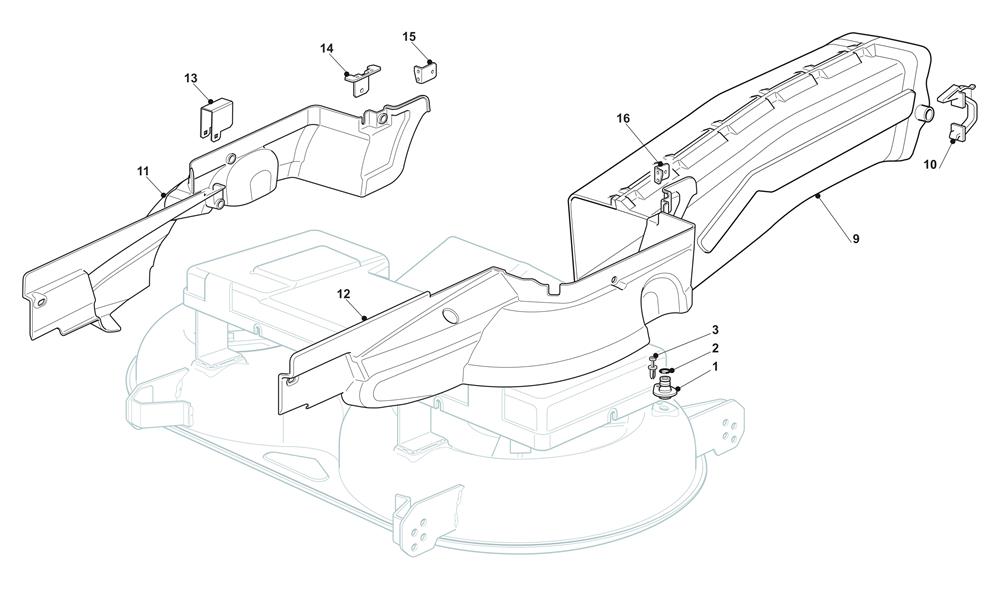

Guards And Conveyor assembly details for Mountfield 2040H Twin (2T0951283) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
002119035000/0O RING 10.77 x 2.62£5.46 Add to
003112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
009382108016/1DISCHARGE CHUTE£66.43 Add to
010325774373/0RELEASE CLAMP£3.41 Add to
011325060144/0RIGHT BELT PROTECTION GUARD£24.03 Add to
012325060145/0LEFT BELT PROTECTION GUARD£24.03 Add to
013325774267/0BRACKET£7.57 Add to
014325774423/0CENTRAL BRACKET£3.15 Add to
015325774425/0REAR R/H BRACKET£3.00 Add to
016325774421/0REAR L/H BRACKET£3.00 Add to
