Ride-on 66 Engine - GGP WBE0704 (2)

Ride-on 66 Engine - GGP WBE0704 (2) assembly details for Mountfield 827H (2T0065483) 2015 model

Parts list

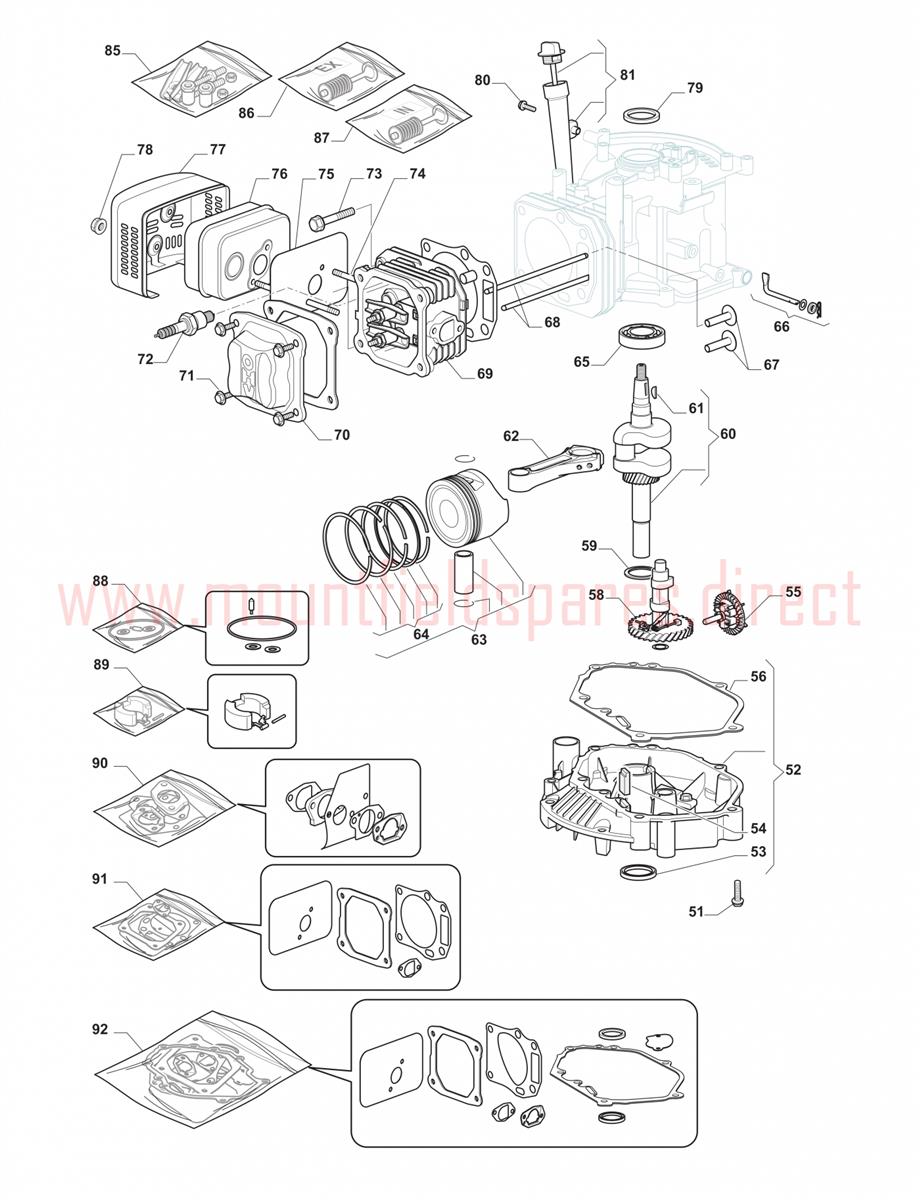

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
051112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
052118550310/0CRANKCASE COVER ASSEMBLY£139.79 Add to
053118550379/0OIL SEAL£7.10 Add to
054118550775/0RUBBER GROMMET£2.78 Add to
055118550313/0SPEED GOVERNOR ASSEMBLY£15.23 Add to
056118550414/1CRANKCASE GASKET£17.18 Add to
058118550272/0CAMSHAFT£46.61 Add to
059118550283/0WASHER£3.69 Add to
060118550282/0CRANKSHAFT ASSEMBLY£109.29 Add to
061118550288/0WOODRUFF KEY£6.55 Add to
062118550285/0CONNECTING ROD ASSEMBLY£42.53 Add to
063118550279/0PISTON ASSEMBLY£54.79 Add to
064118550287/0PISTON RING SET£28.90 Add to
065118550280/0BALL BEARING£23.72 Add to
066118550308/0GOVERNOR ARM SHAFT£10.77 Add to
067118550291/0VALVE LIFTER£10.09 Add to
068118550290/0PUSH RODS£12.15 Add to
069118550245/0CYLINDER HEAD ASSEMBLY£143.37 Add to
070118550296/1CYLINDER HEAD COVER£15.00 Add to
071112791213/1SCREW M6 X 18£1.74 Add to
0729400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
073118550297/0SCREW£6.69 Add to
074118550298/0STUD BOLT£7.04 Add to
075118550270/0MUFFLER GASKET£12.55 Add to
076118550269/0MUFFLER£35.71 Add to
077118550268/1MUFFLER GUARD£34.35 Add to
078112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
079118550300/0OIL SEAL£7.63 Add to
080112674550/0SCREW TE M6 x 30£2.06 Add to
081118550311/0OIL DIPSTICK ASSEMBLY£26.18 Add to
085118550273/0VALVE ARM SET£14.18 Add to
086118550295/0EXHAUST VALVE ASSEMBLY£24.65 Add to
087118550293/0VALVE INTAKE ASSEMBLY£23.15 Add to
088118550388/0CARBURETTOR FLOAT KIT£14.89 Add to
089118550389/0CARBURETTOR REPAIR KIT£10.09 Add to
090118550744/0CARBURETTOR GASKET KIT£16.94 Add to
091118550429/0CYLINDER HEAD GASKET£28.90 Add to
092118550742/0ENGINE GASKET SET (WBE0704)£45.26 Add to
