Ride-on SD98 - 108 Optionals On Request

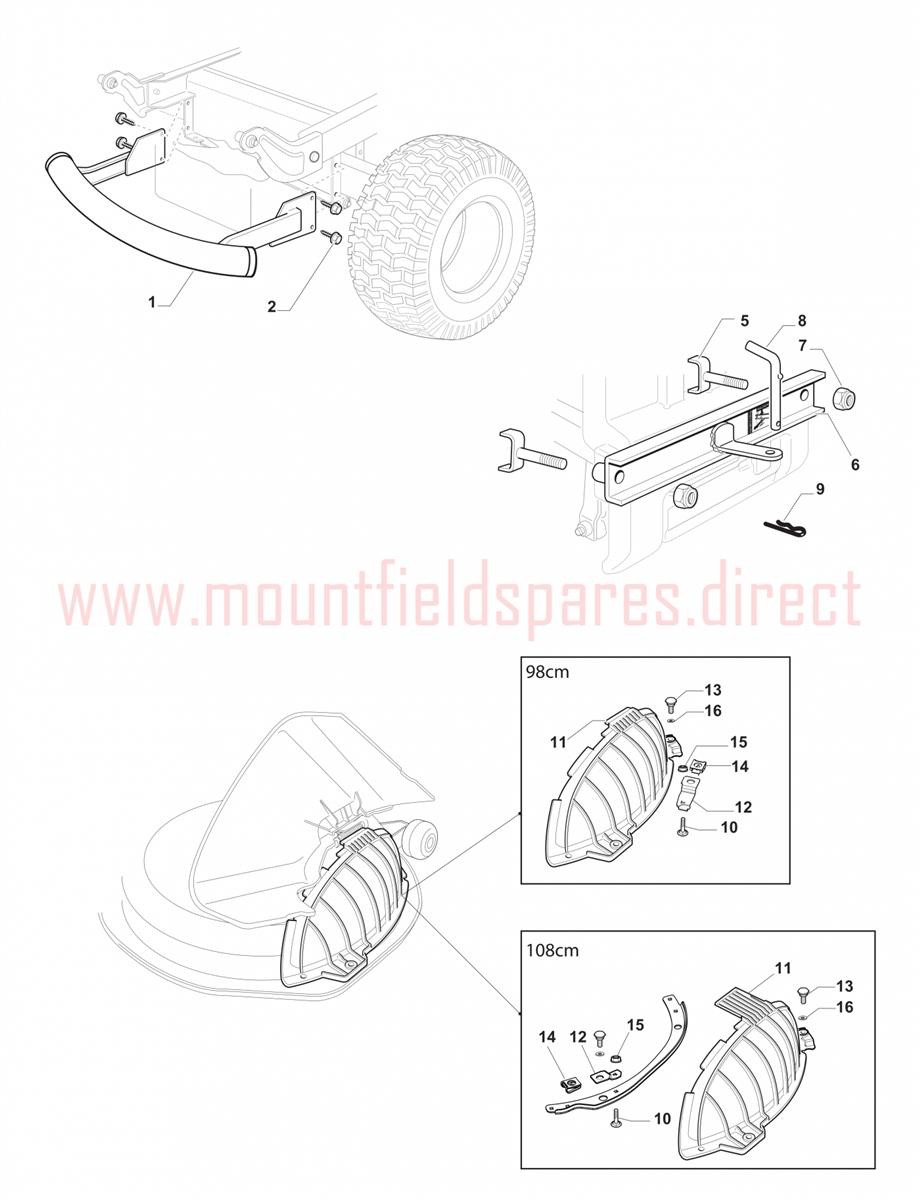

Ride-on SD98 - 108 Optionals On Request assembly details for Mountfield 1538H-SD (2T0630483) 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382869038/0	FRONT BUMPER BAR	£37.33	Add to
002	125943008/0	SCREW TE 1/4 x 20	£2.38	Add to
005	382650211/0	REINFORCEMENT PIN	£5.46	Add to
006	382033111/0	TOW BAR	£32.06	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
008	125510021/1	HITCH PIN	£9.54	Add to
009	124487999/0	R CLIP D=3	£1.91	Add to
010	112815206/0	SCREW M6 x 12 UNI5732 8.8 WHITE ZINC	£2.05	Add to
011	325140105/0	MULCHING PLUG SD98	£12.46	Add to
012	325785471/0	SUPPORT PLATE	£3.41	Add to
013	125580040/0	MULCH PLUG PIN	£2.87	Add to
014	118737221/0	FIXING CLIP	£7.04	Add to
015	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
016	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
