Grasscatcher

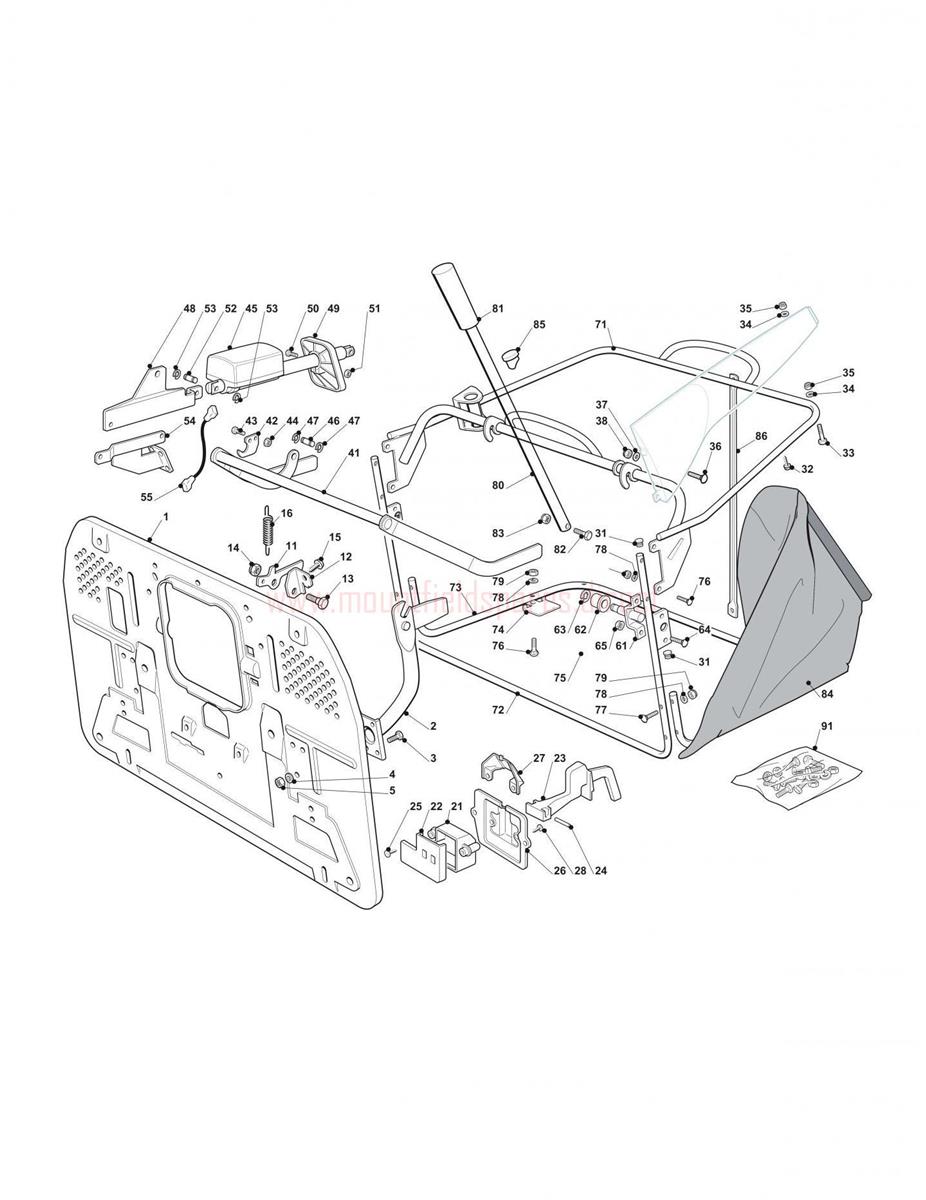

Grasscatcher assembly details for Mountfield MIPL2012_20120203_2448H 4WD 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382547053/0	ELECT. LIFTING REAR PLATE TCX	£145.22	Add to
002	382774245/0	GRASSCATCHER SUPPORT BRACKET	£60.24	Add to
003	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
004	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
011	325774417/0	HOOKING LEVER	£7.04	Add to
012	325755031/1	CLAMP BRACKET (OBSOLETE) (OBSOLETE)	N/A
013	125510080/1	CLAMP PIN	£2.14	Add to
014	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
015	112735122/0	HEX-HEAD SELF-TAP SCREW 6.3 x 16	£2.06	Add to
016	127430579/0	CLUTCH SPRING	£3.24	Add to
021	125600041/0	MICRO PROTECTION COVER	£2.32	Add to
022	125600042/0	MICRO PROTECTION COVER	£3.41	Add to
023	125318124/0	MICRO CONTROL LEVER	£2.32	Add to
024	112400030/0	PIN D=3 L=30	£1.91	Add to
025	112728510/0	SELF-TAP SCREW 4.8 x 13	£3.15	Add to
026	325785272/1	MICRO SWITCH COVER	£2.47	Add to
027	125600048/0	MICRO SWITCH COVER	£2.06	Add to
028	112728450/0	SELF-TAP SCREW 4.8 x 19	£2.81	Add to
031	118566110/0	HANDLE CAP D=22 [BLACK]	£2.06	Add to
032	112735410/0	FLANGED HEX-HEAD SCREW D=6 x 35	£2.06	Add to
033	112689500/0	SCREW M6 x 40	£2.06	Add to
034	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
035	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
036	112815220/0	SCREW M6 x 35	£2.06	Add to
041	382000507/1	GRASSBOX LIFTING AXLE	£128.77	Add to
042	25774317/0	Plate (OBSOLETE)	N/A
043	112815210/0	SCREW M6 x 20	£2.06	Add to
045	118001000/0	ELECTRIC ACTUATOR	£944.84	Add to
046	25510083/0	Pin (OBSOLETE)	N/A
047	112000955/0	CIRCLIP D=8	£1.79	Add to
048	25785197/0	Support (OBSOLETE)	N/A
049	325600060/0	BLACK ACTUATOR PROTECTION HF2	£3.15	Add to
050	112727795/0	CHEESE-HEAD SCREW M5 x 20	£1.79	Add to
051	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
054	82650209/0	Stiffening (OBSOLETE)	N/A
055	125065030/0	CABLE,ELECTRIC GRASSBOX LIFTING	£11.18	Add to
061	82785147/0	Support (OBSOLETE)	N/A
062	125690001/1	BUSH	£8.45	Add to
063	112000956/0	CIRCLIP D=9	£1.79	Add to
064	9897-0820-16	SCREW M8 x 20	£2.32	Add to
071	382800123/1	UPPER GRASSCATCHER FRAME	£203.53	Add to
072	382800089/1	FRONT GRASSCATCHER FRAME	£80.68	Add to
073	325800031/0	LOWER GRASSCATCHER FRAME	£71.14	Add to
074	325547131/0	STOPPING PLATE	£4.10	Add to
077	112815245/0	SCREW M6 x 45	£2.06	Add to
080	125869029/1	TIPPING LEVER	£28.43	Add to
081	125394508/0	KNOB	£4.52	Add to
082	112674550/0	SCREW TE M6 x 30	£2.06	Add to
