Optionals On Request

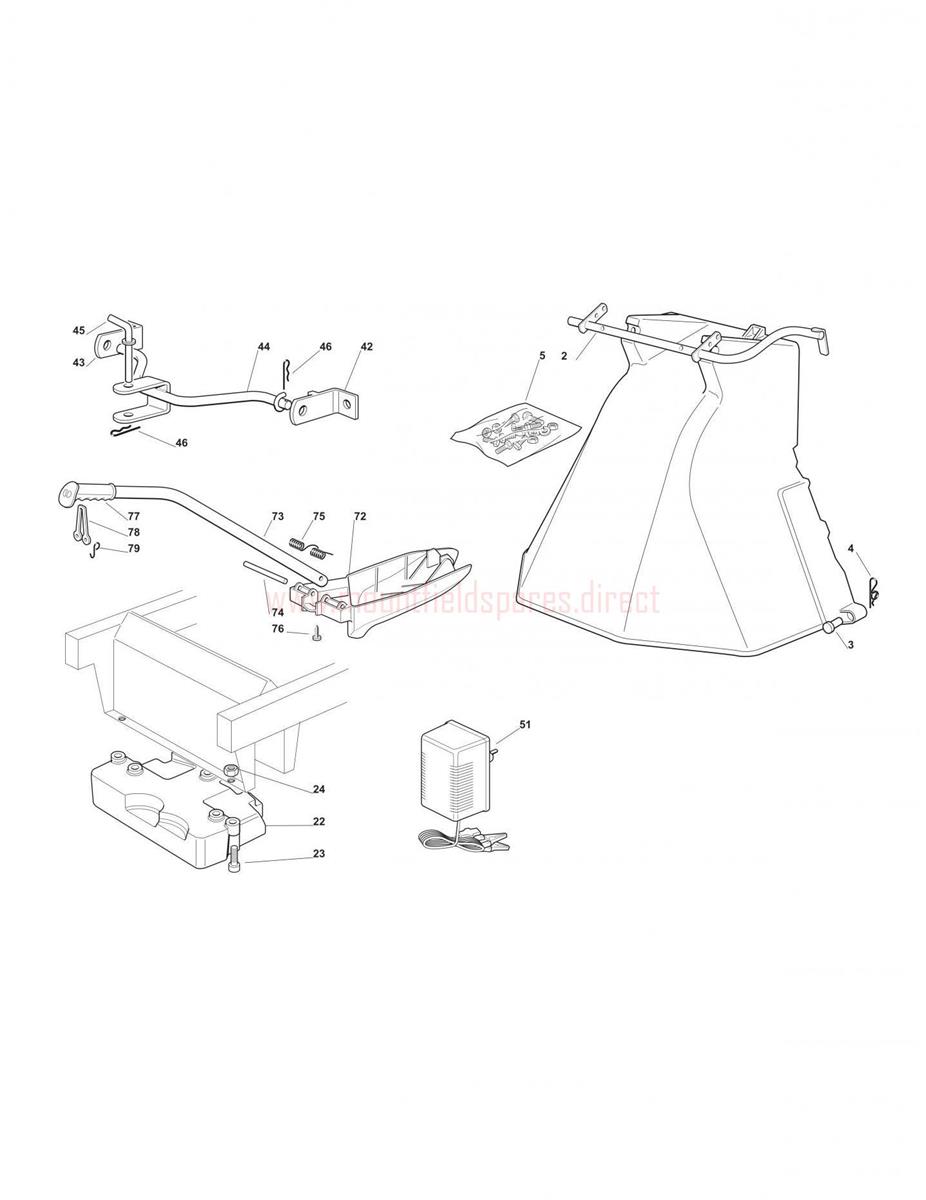

Optionals On Request assembly details for Mountfield MIPL2012_20120203_1540H_4000 SH-TH 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002382869035/0SUPPORT TUBE£36.69 Add to
003125510022/1PIN£3.40 Add to
004124487998/0R CLIP D=2£2.06 Add to
00582180062/0Screws Outfit (OBSOLETE)N/A
022112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
023112760520/0HEXAGON SOCKET HEAD SCREW M8 x 45£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
042382735502/0BRACKET R/H£12.00 Add to
043325774213/0BRACKET L/H£5.05 Add to
044382033117/0TOW BAR ROD£53.42 Add to
045125510021/1HITCH PIN£9.54 Add to
046124487999/0R CLIP D=3£1.91 Add to
051182180190/0BATTERY CHARGER KIT 1A UK-CE PLUG£71.14 Add to
051182180190/0BATTERY CHARGER KIT 1A UK-CE PLUG£71.14 Add to
072325140097/0MULCH DEFLECTOR SHOE£33.46 Add to
073325394005/0HANDLE£18.53 Add to
074125510077/0FULCRUM PIN£3.69 Add to
075125430245/0SPRING£3.28 Add to
076112735405/0FLANGED SELF-TAP SCREW D=6 x 30£2.06 Add to
077325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
078125840011/1LOCKING RUBBER TIE£6.27 Add to
079125253004/0FIXING HOOK£2.06 Add to
