Cutting Plate

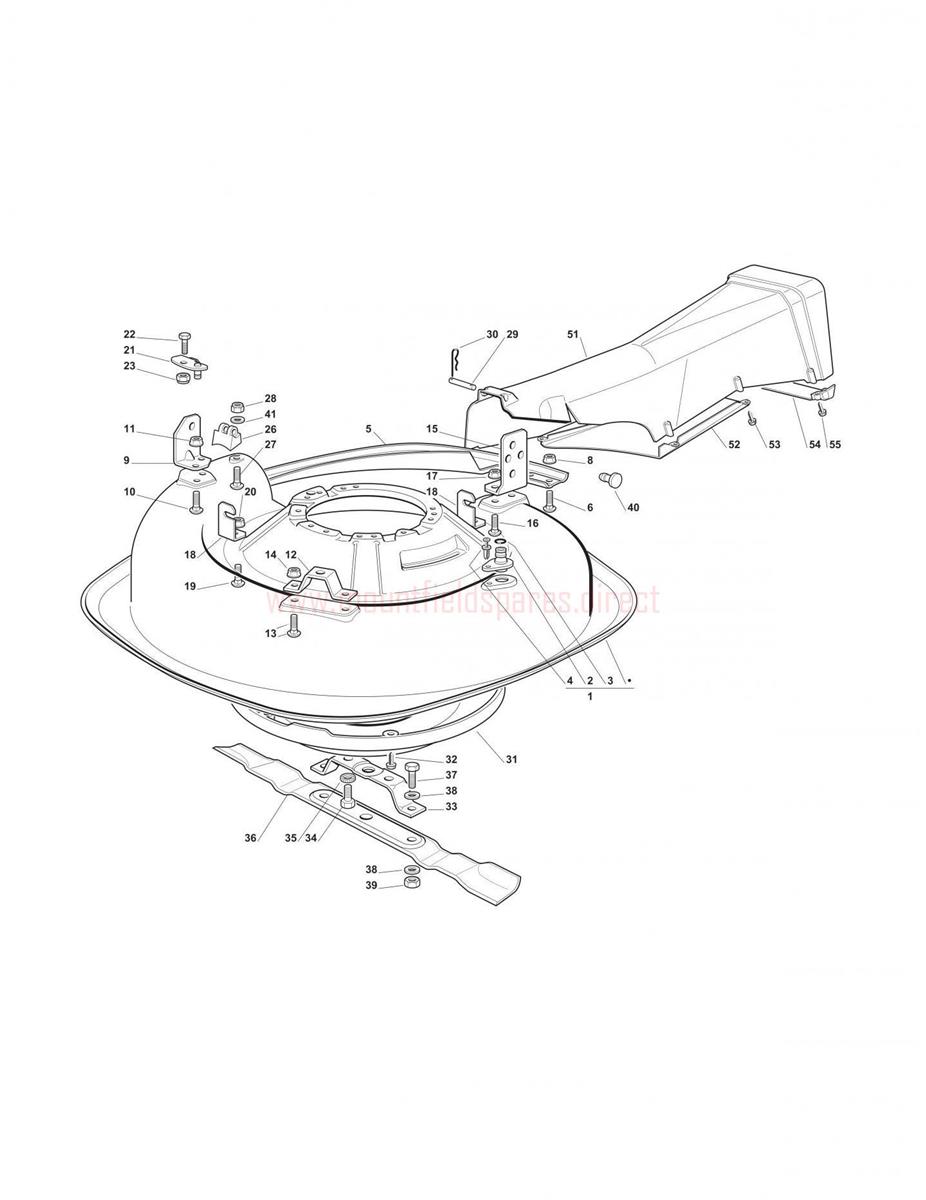

Cutting Plate assembly details for Mountfield MIPL2012_20120201_R25V 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384564095/1CUTTING DECK CASING 63cm [BLACK]£300.07 Add to
001384564104/1CUTTING PLATE RED£246.02 Add to
001384564117/0CUTTING DECK YELLOW STIGA (RIC)£242.88 Add to
002125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
004112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
005384650103/0REINFORCEMENT DECK PLATE£19.90 Add to
006112815200/0SCREW TTDQ M6X16£2.06 Add to
008112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
009327772119/0RIGHT FRONT DECK CLAMP£3.64 Add to
0109897-0820-16SCREW M8 x 20£2.32 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012327772133/0LEFT DECK FRONT CLAMP£4.52 Add to
015327772127/2REAR DECK BRACKET£4.52 Add to
016112818700/0SCREW M8 x 25£2.81 Add to
018327753071/0CLUTCH AND GUIDE PULLEY WIRE S£7.12 Add to
021384545063/0CLUTCH LOCK PLATE£12.14 Add to
022112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
023112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
026327230200/2HOOK BRACKET£2.06 Add to
027112815210/0SCREW M6 x 20£2.06 Add to
028112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
029127510097/1FIXING PIN£2.74 Add to
030124487997/0SPRING CLIP D=1.8£2.06 Add to
031327600122/0PLASTIC CLUTCH GUARD (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
032112728903/0SCREW£1.69 Add to
033327787045/1BLADE BRACKET£4.52 Add to
034112794110/1SCREW TE M10 x 1.5 L=20£2.18 Add to
035112530150/0SPRING WASHER M12£1.79 Add to
036184109504/0MULCHING BLADE 63cm/25"£38.44 Add to
037112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
038112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
039112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
040127275000/0RUBBER GROMMET FOR BRAKE PEDAL£3.55 Add to
041112521330/0WASHER M6 6.4 x 12 x 1.6£2.06 Add to
051127107502/0REAR DISCHARGE CHUTE£42.53 Add to
052327140056/0DEFLECTOR CHUTE£12.00 Add to
053112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
054127650120/0SUPPORT PLATE (OBSOLETE) (OBSOLETE)N/A
055112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
