Blades Engagement - GGP Engine

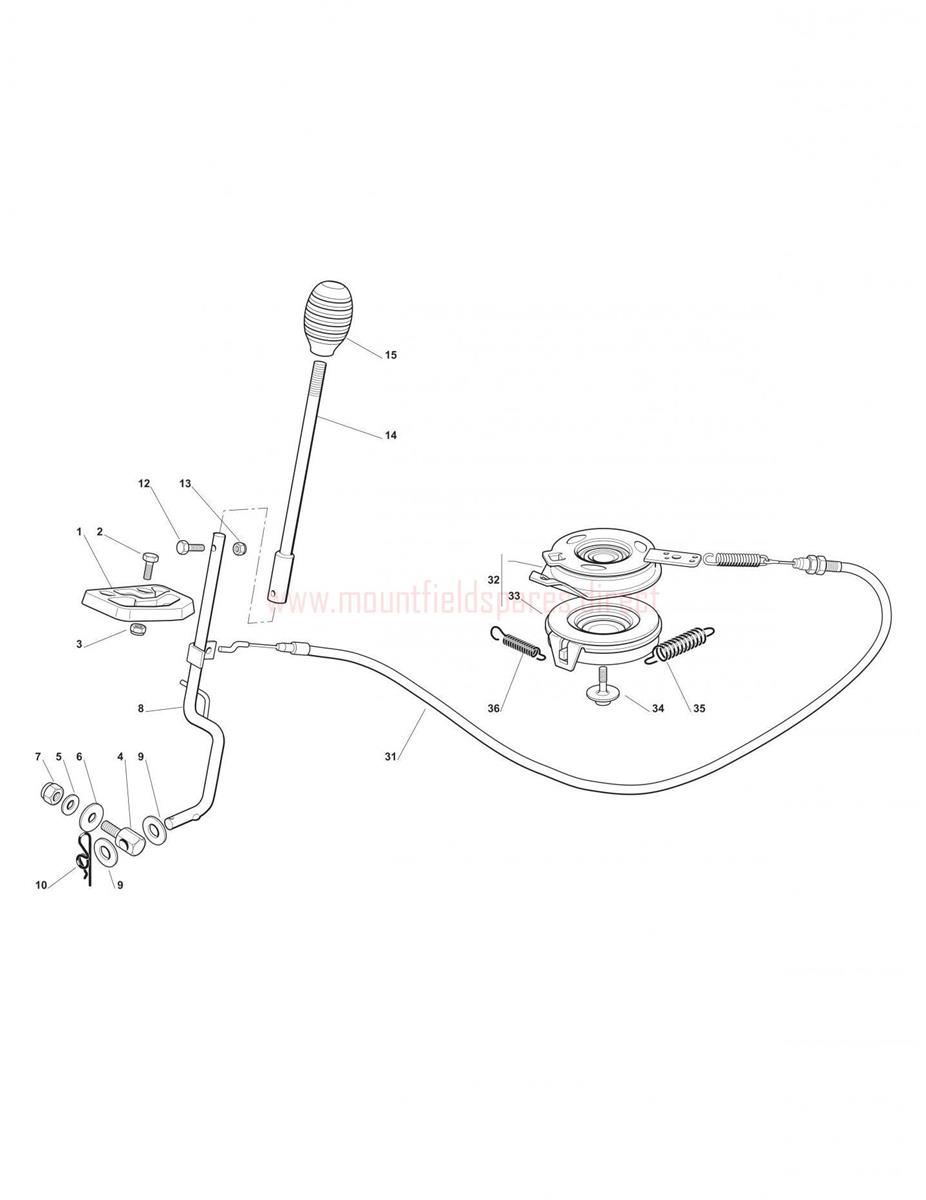

Blades Engagement - GGP Engine assembly details for Mountfield MIPL2012_20120201_R25V 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127487001/0PLASTIC GUIDE SHOE£1.96 Add to
002112791200/1SCREW TE M6 x 16£1.70 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
004127510107/0FULCRUM PIN£4.68 Add to
005325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£1.96 Add to
006322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.82 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
008384317073/1LOWER PTO LEVER ASS.Y£26.25 Add to
009321660100/0WASHER 13 x 22 x 0.5£2.21 Add to
010124487998/0R CLIP D=2£1.96 Add to
012112789020/0HEX-HEAD SCREW M5 x 25£1.96 Add to
013112154330/0LOW SELF-LOCKING NUT M5£1.96 Add to
014184317079/0GEARSHIFT£18.18 Add to
015125394510/0CONTROL KNOB [BLACK]£4.14 Add to
031384207104/1PTO CABLE£31.42 Add to
032118399065/1MECHANICAL CLUTCH£231.31 Add to
033118399066/1CLUTCH LOWER HALF£201.43 Add to
034112735460/0CLUTCH BOLT£8.64 Add to
035127430579/0CLUTCH SPRING£3.09 Add to
036122450110/0ROLLER SPRING£7.28 Add to
