Body

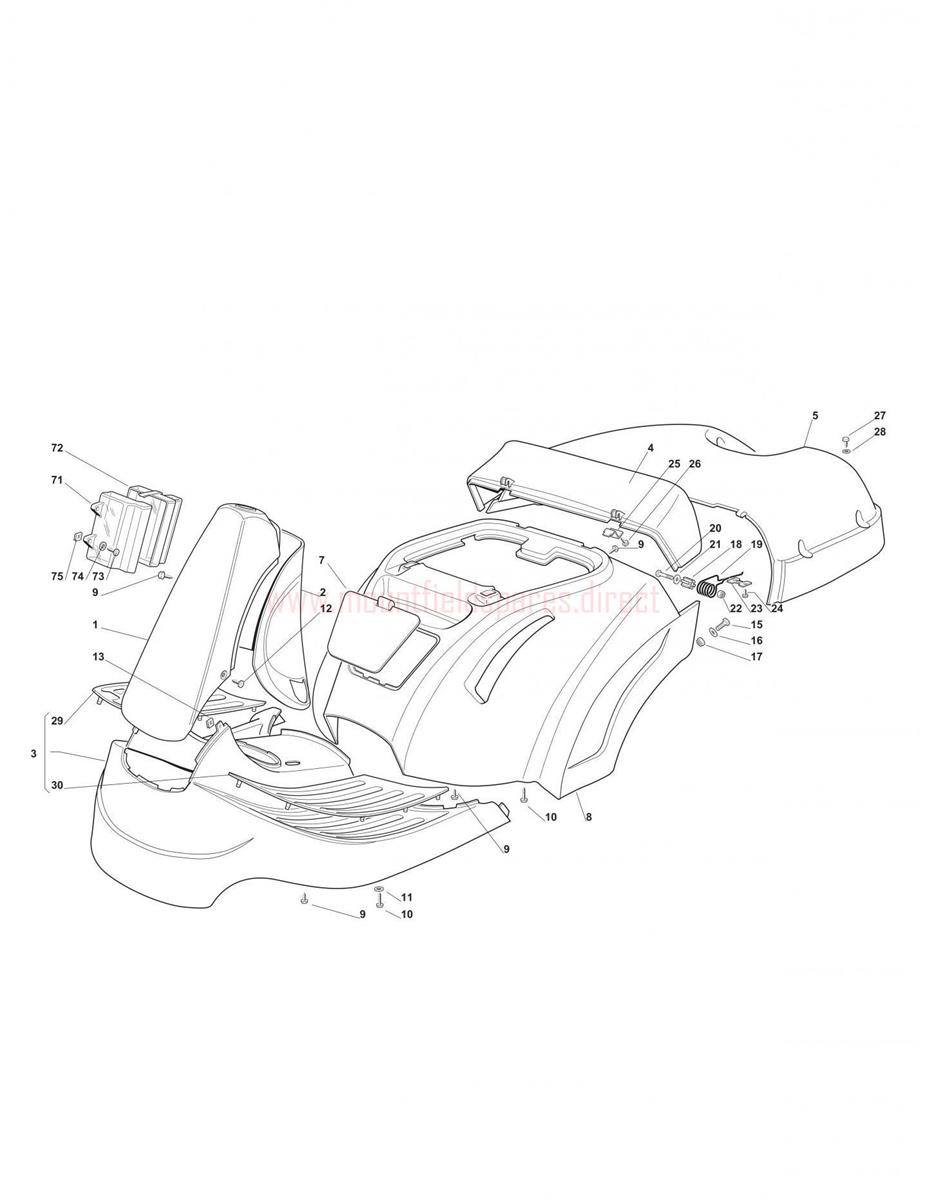

Body assembly details for Mountfield 2800SH (20120201) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	84598064/1	Front Cover Red (OBSOLETE)	N/A
002	327600091/1	REAR COVER [RED]	£24.64	Add to
003	327110574/0	FOOTBOARDS COVER [DARK RED]	£150.18	Add to
004	327110302/3	FIXED GRASSCATCHER COVER [RED]	£41.97	Add to
005	327110303/2	GRASSCATCHER TOP [RED]	£71.33	Add to
007	327109501/1	FRONT COVER CAP [RED]	£11.83	Add to
008	384110107/5	WHEELS COVER [RED]	£181.49	Add to
009	112735402/0	FLANGED HEX-HEAD SCREW D=6 x 18 WZ	£2.06	Add to
010	112735410/0	FLANGED HEX-HEAD SCREW D=6 x 35	£2.06	Add to
011	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
012	112727790/0	CHEESE-HEAD SCREW M5 x 10	£2.06	Add to
013	112437503/0	LOCK PLATE	£2.06	Add to
015	112791200/1	SCREW TE M6 x 16	£1.79	Add to
017	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
018	127047003/0	BUSH	£2.06	Add to
019	127430551/1	SPRING	£3.15	Add to
020	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
021	112523070/0	WASHER M8 8.5 x 32 x 2.5	£2.06	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
023	327546001/0	SPRING PLATE	£1.79	Add to
025	327546003/0	COVER PLATE	£2.06	Add to
027	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
028	112521331/0	WASHER M6 6,4X12,5X1,6 BLACK	£2.06	Add to
029	127110304/0	RIGHT FOOTBOARD COVER [BLACK]	£10.23	Add to
030	127110305/0	LEFT FOOTBOARD COVER [BLACK]	£11.04	Add to
071	125600020/0	UPPER GUARD	£9.62	Add to
072	125600021/1	LOWER GUARD	£10.25	Add to
073	112728460/0	SELF-TAPP.SCREW 4.8X38 UNI 6954	£2.06	Add to
074	112521320/0	WASHER M5 5.3 x 10 x 1	£2.06	Add to
075	112437502/0	PLATE	£2.06	Add to
