Body

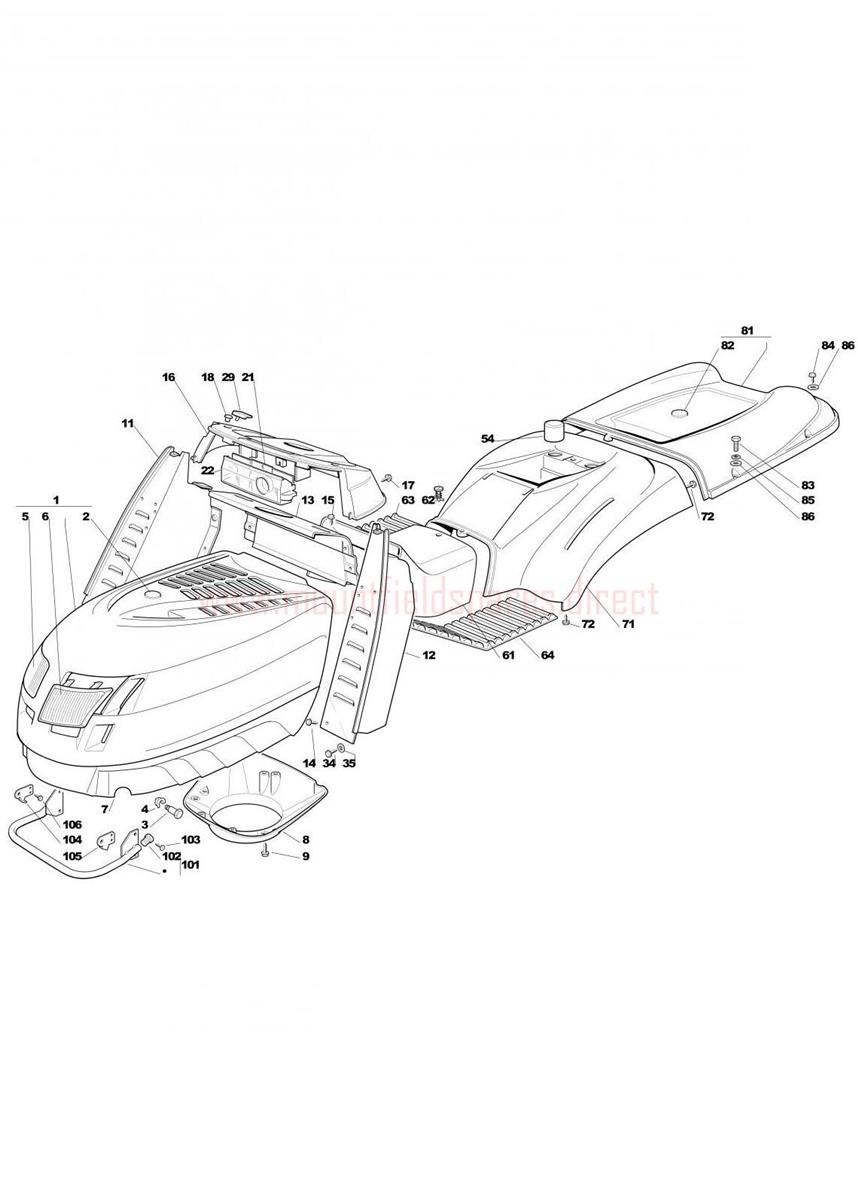

Body assembly details for Mountfield TM40 (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382076841/3	ENGINE HOOD [RED] FROM 01/09/2004	£102.06	Add to
002	325547025/1	COVER [RED]	£2.18	Add to
003	125510023/1	PIN	£3.69	Add to
004	112436050/1	PIN PLATE D=8	£5.21	Add to
005	125410860/0	RIGHT HEADLIGHT	£10.42	Add to
006	125410861/0	LEFT HEADLIGHT	£10.42	Add to
007	125076808/0	LOWER ENGINE HOOD	£45.64	Add to
008	325108028/0	LONG AIR CONVEYOR	£8.14	Add to
009	112728686/0	TAPTITE SCREW KA50 X 16	£1.76	Add to
011	382785022/8	RIGHT DASHBOARD SUPPORT	£31.63	Add to
012	382785021/7	LEFT DASHBOARD SUPPORT	£31.63	Add to
013	382785137/0	CENTRAL DASHBOARD SUPPORT	£16.16	Add to
014	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
016	125120153/1	BLACK DASHBOARD	£39.80	Add to
017	112728440/0	SELF-TAPPING SCREW 4.8 x 13	£1.79	Add to
018	125120200/0	CAP (OBSOLETE)	N/A
021	125600009/0	PROTECTIVE COVER	£3.00	Add to
022	125600051/0	PC BOARD PROTECTION COVER	£10.49	Add to
023	125735110/3	FUEL TANK [7 LITRES]	£53.42	Add to
034	112731350/0	SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15	£2.06	Add to
035	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
054	325122000/2	PROTECTION CAP	£2.06	Add to
061	325110136/1	CENTRAL COVER [RED]	£32.99	Add to
061	325110239/1	CENTRAL COVER [RED] HYDRO	£32.99	Add to
062	125580020/2	SPRING TENSIONED SCREW	£7.23	Add to
063	125110270/0	RIGHT FOOTBOARD COVER	£26.93	Add to
064	125110260/2	LEFT FOOTBOARD COVER	£24.95	Add to
071	325109700/1	WHEELS COVER [RED]	£124.29	Add to
071	325109701/1	WHEELS COVER [RED] HYDRO	£129.74	Add to
071	325109702/1	WHEELS COVER RED	£131.92	Add to
071	325109703/1	WHEEL COVER [RED]	£126.41	Add to
072	112735402/0	FLANGED HEX-HEAD SCREW D=6 x 18 WZ	£2.06	Add to
081	382110200/1	GRASSCATCHER TOP [RED]	£152.39	Add to
083	112674701/0	SCREW TE M6 x 35	£2.06	Add to
084	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
085	112582101/0	WASHER M6	£2.06	Add to
086	112521331/0	WASHER M6 6,4X12,5X1,6 BLACK	£2.06	Add to
101	382869006/1	MUFFLER TUBE GUARD	£34.35	Add to
102	118566110/0	HANDLE CAP D=22 [BLACK]	£2.06	Add to
103	112735120/0	FLANGED SELF-TAP SCREW 6.3 x 16	£2.06	Add to
104	325547089/1	RIGHT PLATE	£4.52	Add to
105	325547091/1	LEFT PLATE	£4.52	Add to
106	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
