Electrical Parts

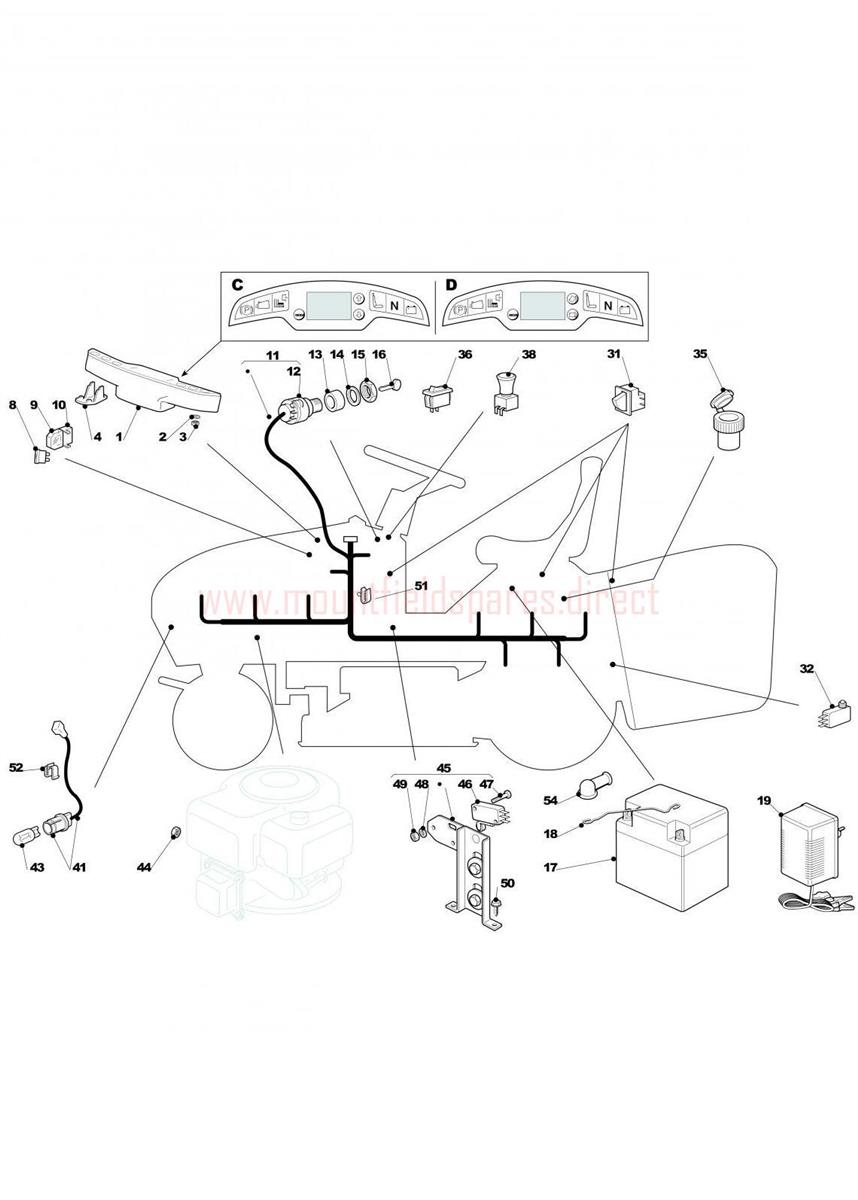

Electrical Parts assembly details for Mountfield 2448H_4WD (20110221) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382722422/3PC BOARD ASSEMBLY TCX HIGH-END£463.60 Add to
002112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
003112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
004325031501/0BUZZER SOUND AMPLIFIER£6.69 Add to
008133340035/0FUSE 15A£2.06 Add to
008133340036/0FUSE 25A£2.06 Add to
008133340040/0FUSE 10A£2.47 Add to
009133215000/0FUSE HOLDER COVER£3.83 Add to
010133500007/0FUSE HOLDER£7.64 Add to
011182040149/0WIRING HARNESS£313.70 Add to
012118450072/0IGNITION SWITCH£32.19 Add to
013118550136/0PLASTIC RING NUT£2.06 Add to
014118550135/0RING NUT WASHER£2.06 Add to
015118400862/0THREADED RING NUT£4.64 Add to
016118210022/0IGNITION KEY [PAIR]£8.73 Add to
017118120057/0BATTERY 12V 22AH£110.66 Add to
018125430230/0SPRING ROD£3.55 Add to
019182180190/0BATTERY CHARGER KIT 1A UK-CE PLUG£71.14 Add to
031119410622/1MICRO SWITCH N.O.£7.10 Add to
032119410605/1MICRO SWITCH£36.77 Add to
033119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
0359400-0317-01SOCKET£26.31 Add to
036118450084/0HEADLIGHT SWITCH£4.35 Add to
038118450068/0CLUTCH SWITCH [YELLOW]£55.89 Add to
041182040073/0HEADLIGHTS CABLE£18.68 Add to
043118459100/0HEADLIGHT BULB£2.47 Add to
044112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
051133320506/0CABLE CLIP£1.79 Add to
052133320504/0CABLE CLIP£2.06 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
