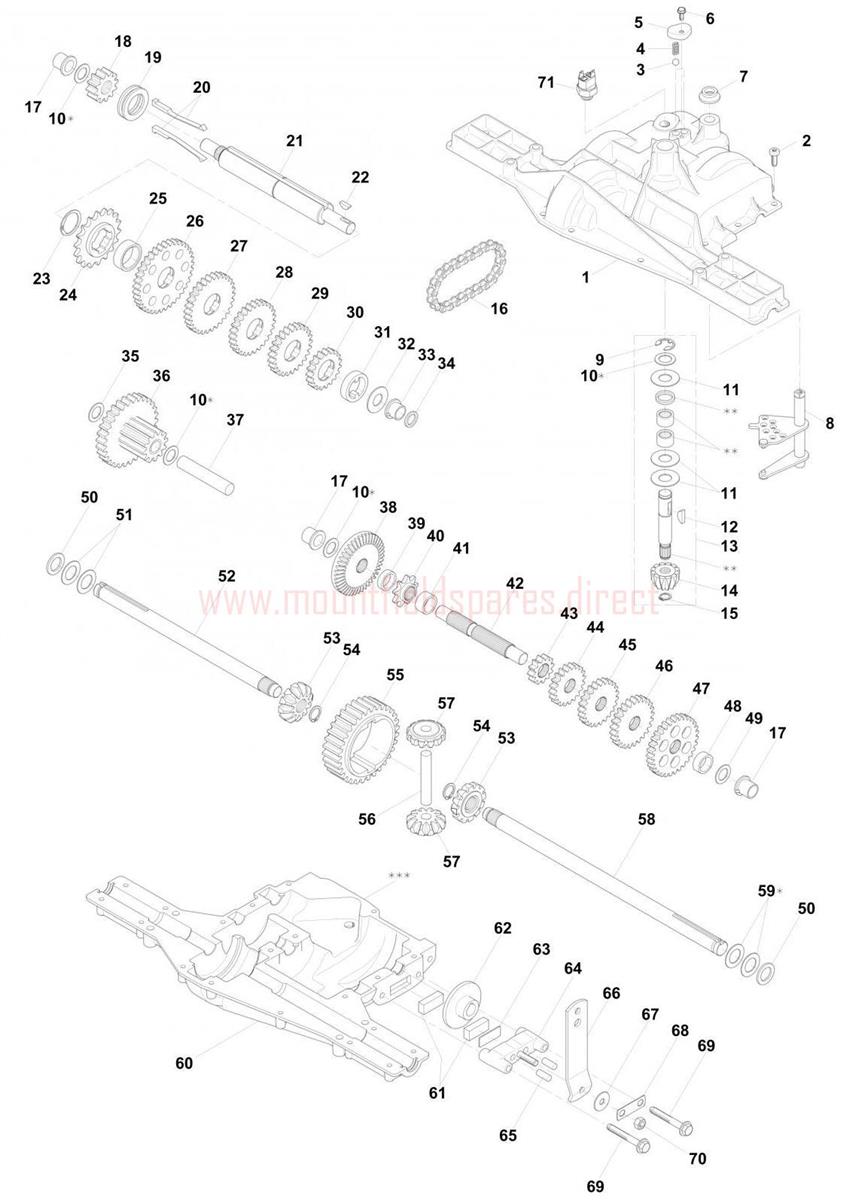

Transmission (2) assembly details for Mountfield 1436M_2T0320483M10 (20110218) 2011 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | F000-5962-AC | Housing, Upper (OBSOLETE) | N/A | |
002 | F000-1919-00 | SCREW,TAP | £5.45 | Add to |
003 | F000-5947-00 | DETENT BALL (OBSOLETE) | N/A | |
004 | F000-5948-00 | SPRING DETENT (OBSOLETE) | N/A | |
005 | F000-5950-00 | Cover, Detent (OBSOLETE) | N/A | |
006 | F084-0052-00 | SCREW | £5.92 | Add to |
007 | F000-7010-00 | V-RING (OBSOLETE) (OBSOLETE) (OBSOLETE) | N/A | |
008 | F000-6517-00 | Assy, Kit, Shifter (OBSOLETE) | N/A | |
009 | F000-1106-00 | CIRCLIP (OBSOLETE) | N/A | |
010 | F000-4689-00 | ASSY,KIT,SHIM,625 SHAFT (OBSOLETE) | N/A | |
011 | F000-3876-00 | WASHER | £9.14 | Add to |
012 | F000-1746-00 | WOODRUFF KEY (OBSOLETE) | N/A | |
013 | F000-6595-01 | INPUT SHAFT SERVICE KIT | £165.76 | Add to |
014 | F000-6595-01 | INPUT SHAFT SERVICE KIT | £165.76 | Add to |
015 | F000-3624-00 | CIRCLIP | £6.39 | Add to |
016 | F000-3625-00 | CHAIN,24 PITCHES | £101.13 | Add to |
017 | F000-5510-00 | FLANGE BEARING | £20.16 | Add to |
018 | F000-5627-00 | GEAR, SPUR 12T | £18.42 | Add to |
019 | F000-5303-00 | SHIFTER BOOT | £88.08 | Add to |
020 | F000-4758-00 | Assy, Kit, Clutch Keys (OBSOLETE) | N/A | |
021 | F000-5737-00 | Shaft, Intermediate (OBSOLETE) | N/A | |
022 | F000-1375-00 | WOODRUFF KEY (OBSOLETE) | N/A | |
023 | F000-3627-00 | RING,RETAINING | £7.73 | Add to |
024 | F000-3830-00 | SPROCKET,18T | £68.94 | Add to |
025 | F000-3841-00 | Spacer, 1.131 X 1.45 X.494 (OBSOLETE) | N/A | |
026 | F000-5365-00 | SPUR GEAR 37T (OBSOLETE) | N/A | |
027 | F000-3867-00 | GEAR,SPUR,30T | £159.45 | Add to |
028 | F000-5014-00 | GEAR,SPUR,27T | £50.94 | Add to |
029 | F000-3783-00 | GEAR,SPUR,25T | £109.10 | Add to |
030 | F000-5202-00 | GEAR,SPUR, 19T | £88.77 | Add to |
031 | F000-5027-00 | SPACER | £20.31 | Add to |
032 | F000-3628-00 | Washer, Plain, .640 X1.37 X .061 (OBSOLETE) | N/A | |
033 | F000-5511-00 | Bearing, Flange (OBSOLETE) | N/A | |
034 | F000-5508-00 | Seal, Oil (OBSOLETE) | N/A | |
035 | F000-1425-00 | WASHER (OBSOLETE) | N/A | |
036 | F000-6358-00 | Assy, Gear, Comb., 12T& 30T (OBSOLETE) | N/A | |
037 | F000-3967-00 | Shaft, Idler (OBSOLETE) | N/A | |
038 | F000-7003-00 | GEAR, BEVEL, 36T (OBSOLETE) | N/A | |
039 | F000-3630-00 | SPACER | £6.22 | Add to |
040 | F000-3645-00 | SPROCKET,9T (OBSOLETE) | N/A | |
041 | F000-5016-00 | SPACER | £7.82 | Add to |
042 | F000-5015-00 | Shaft, Drive (OBSOLETE) | N/A | |
043 | F000-5364-00 | GEAR, SPUR 12T | £15.91 | Add to |
044 | F000-3866-00 | GEAR,SPUR,20T | £61.73 | Add to |
045 | F000-5013-00 | GEAR,SPUR,23T | £45.52 | Add to |
046 | F000-3719-00 | GEAR SPUR 25T | £90.57 | Add to |
047 | F000-3683-00 | GEAR SPUR 31T | £130.18 | Add to |
048 | F000-3714-00 | SPACER | £12.21 | Add to |
049 | F000-1145-00 | WASHER, PLAIN | £5.21 | Add to |
050 | F000-5130-00 | SEAL | £17.26 | Add to |
051 | F000-3184-00 | WASHER,PLAIN | £9.62 | Add to |
052 | F000-7070-10 | Axle, Lh (OBSOLETE) | N/A | |
053 | F000-5622-00 | GEAR, MITER 12T SPLINED (OBSOLETE) | N/A | |
054 | F000-5270-00 | RETAINING RING | £2.32 | Add to |
055 | F000-3839-00 | Gear, Spur, 32T (OBSOLETE) | N/A | |
056 | F000-3919-00 | SHAFT,CROSS | £38.33 | Add to |
057 | F000-5623-00 | GEAR MITER 12T IDLER (OBSOLETE) | N/A | |
058 | F000-7070-20 | WHEEL AXLE-RH | £52.73 | Add to |
059 | F000-4691-00 | KIT SHIM (OBSOLETE) | N/A | |
060 | F000-5304-R0 | HOUSING-LOWER | £223.99 | Add to |
061 | F000-7109-00 | FRICTION PAD (OBSOLETE) (OBSOLETE) | N/A | |
062 | F000-5960-00 | BRAKE DISC (OBSOLETE) (OBSOLETE) | N/A | |
063 | F000-3758-00 | SPACER (OBSOLETE) (OBSOLETE) | N/A | |
064 | F000-5554-00 | BRAKE JAW (OBSOLETE) | N/A | |
065 | F000-3843-00 | DOWEL PIN (OBSOLETE) | N/A | |
066 | F000-7026-00 | Lever, Actuating (OBSOLETE) | N/A | |
067 | F000-3760-00 | WASHER,PLAIN | £4.52 | Add to |
068 | F000-5555-00 | ANTI-ROTATION BRACKET (OBSOLETE) | N/A | |
069 | F000-5562-00 | SCREW | £6.69 | Add to |
070 | F000-3847-00 | NUT, LOCK (OBSOLETE) | N/A | |
071 | 119410610/0 | NEUTRAL SWITCH [MECHANICAL] | £54.79 | Add to |
072 | F000-4300-00 | GREASE | £88.63 | Add to |
