Drive Controls

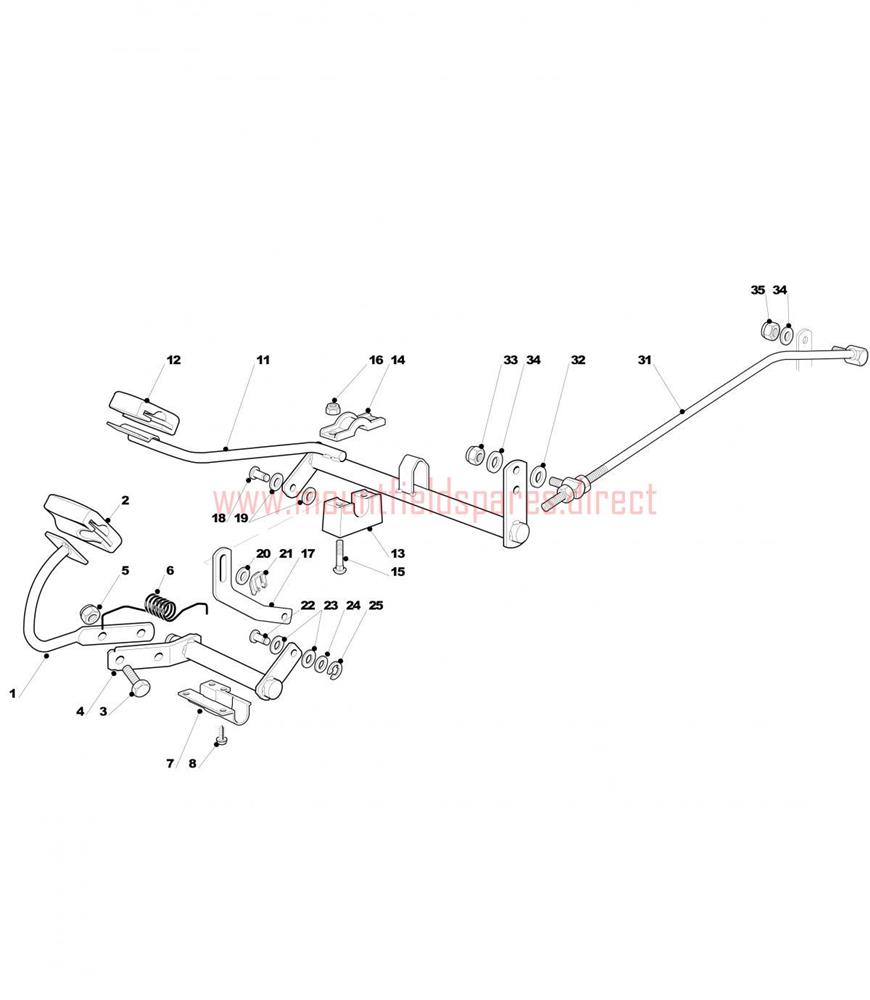

Drive Controls assembly details for Mountfield 2448 H 4WD (20100406) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382500031/0	PEDAL ASSY	£40.10	Add to
002	325110275/0	REVERSE PEDAL COVER [BLACK]	£4.23	Add to
003	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
004	382000559/0	AXLE	£23.64	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	125430246/0	Spring (OBSOLETE)	N/A
007	25547133/0	Plate (OBSOLETE)	N/A
008	112731601/0	SELF-TAP SCREW 4.8 x 16	£2.32	Add to
011	382000557/0	AXLE	£62.06	Add to
012	325110274/0	FRONT PEDAL COVER [BLACK]	£6.27	Add to
013	325785185/0	AXLE SUPPORT BLOCK	£4.10	Add to
014	327546015/2	WZ FLAT FULCR.AXLE FIX PLATE	£2.06	Add to
015	112815245/0	SCREW M6 x 45	£2.06	Add to
016	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
017	325547207/0	PLATE	£7.92	Add to
018	12551085/0	PIN BOLT (OBSOLETE)	N/A
019	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
020	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
021	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
025	112000930/0	CIRCLIP D=6	£0.79	Add to
031	382000572/0	ROD	£51.08	Add to
032	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
034	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
