5102.09BQ

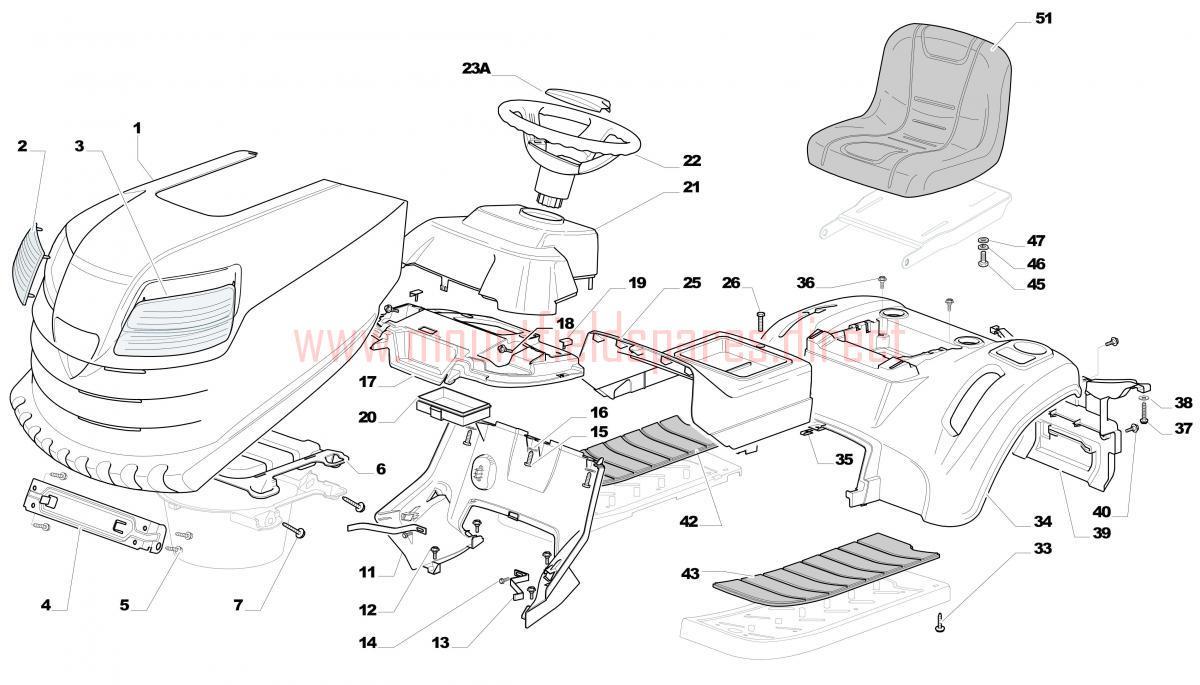

5102.09BQ assembly details for Mountfield T38-SD (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076900/0Engine Hood Grey (OBSOLETE)N/A
002325410887/0RIGHT HEADLIGHT£9.54 Add to
003325410888/0LEFT HEADLIGHT£9.54 Add to
004325785317/0HOOD SUPPORT£11.27 Add to
005112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
006325263302/0BLACK AIR GRILL HOOD SD 98£17.81 Add to
007112728692/0SELF-TAP SCREW KA50 x 20£2.14 Add to
011325785298/0DASHBOARD SUPPORT [BLACK]£29.30 Add to
012125943010/0FLANGED SCREW£2.06 Add to
013325270325/0DASHBOARD SUPPORT GUIDE£5.19 Add to
014112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
015112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
016112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
017325120209/0DASHBOARD [BLACK] (FROM 01-SEPT 2014 TO 31-AUG 20£38.73 Add to
019325260003/0DASHBOARD GROMMET£2.06 Add to
020325600080/0PC BOARD COVER£8.98 Add to
021325120203/0DASHBOARD COVER [BLACK]£18.20 Add to
022325961219/0STEERING WHEEL [BLACK]£34.72 Add to
025325110398/1CENTRAL COVER [GREY]£34.35 Add to
034325110401/0WHEELS COVER [GREY]£143.37 Add to
035112437506/0DOUBLE PLATE£2.87 Add to
039325547208/0325547208/0 Plate (OBSOLETE)N/A
041125722463/0SEAT£205.11 Add to
042325110384/0RIGHT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
043325110385/0LEFT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
045112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
046112540260/0INNER TOOTHED WASHER M8£2.06 Add to
047112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
051125722472/0SEAT [BLACK]£184.64 Add to
23A325580503/0STEERING WHEEL CAP ROUND£6.42 Add to
