Chassis

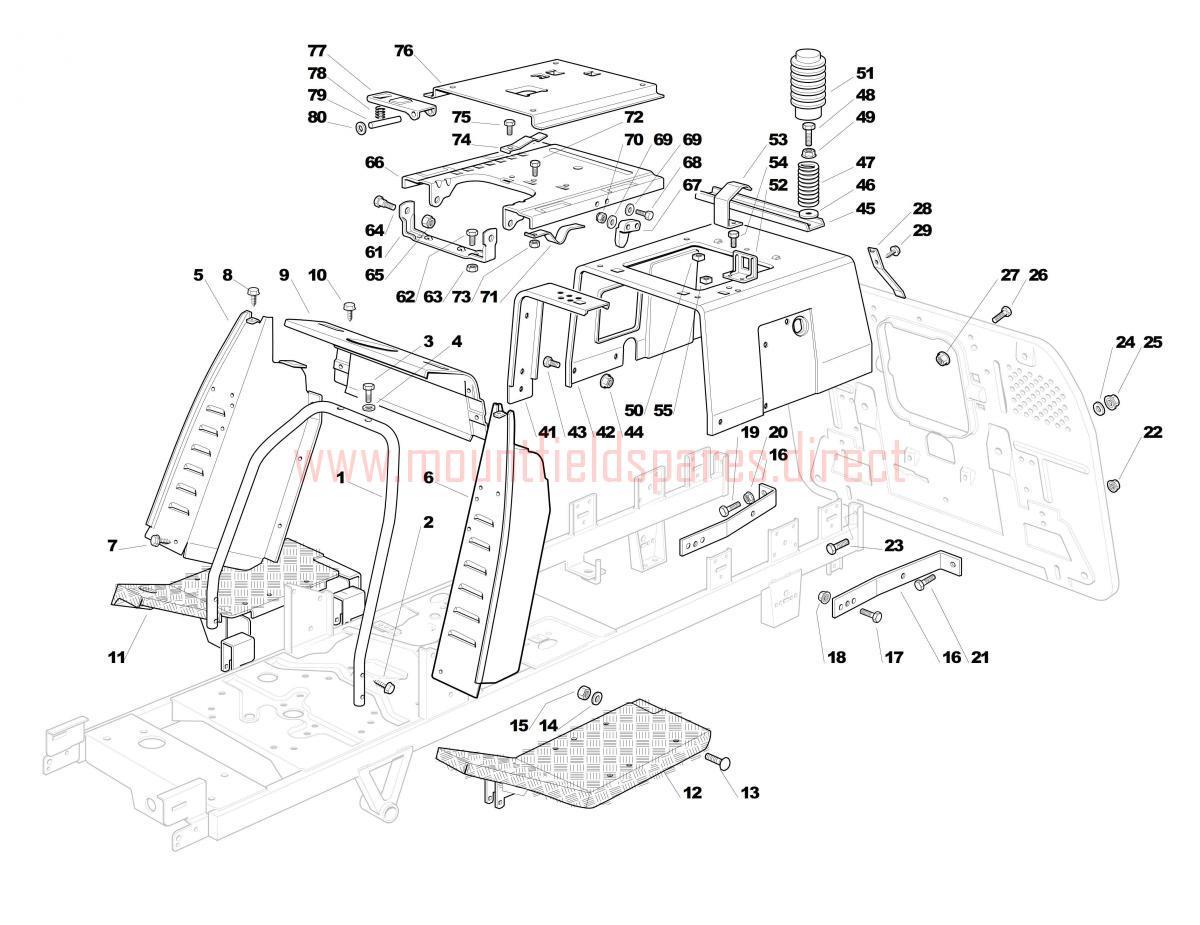

Chassis assembly details for Mountfield 2348H-4WD (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325650121/1FRONT TUBULAR REINFORCEMENT TC H£18.76 Add to
002112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
003112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
004112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
005382785022/8RIGHT DASHBOARD SUPPORT£31.63 Add to
006382785021/7LEFT DASHBOARD SUPPORT£31.63 Add to
007112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
009382785171/0Central Dashboard Supp (OBSOLETE)N/A
011382510071/0FOOTBOARD RIGHT£35.91 Add to
012382510070/0FOOTBOARD LEFT£200.38 Add to
013112815245/0SCREW M6 x 45£2.06 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
016325774273/2REINFORCING BRACKET£9.28 Add to
017112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
019119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
023112794300/0SCREW TE M10 x 30£1.91 Add to
024112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
025112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
026112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
027112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
028125430238/1SPRING£4.52 Add to
029112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
041325650133/0SEAT REINFORCEMENT£8.73 Add to
042325785133/4SEAT SUPPORT£66.70 Add to
045325650067/1REINFORCING PLATE£6.27 Add to
046112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
047125430205/1SEAT SHOCK ABSORBER SPRING£6.01 Add to
048125943001/1SCREW£2.06 Add to
050112360420/0NUT£2.06 Add to
051325737002/0PROTECTION COVER£6.01 Add to
052325755025/2SEAT SWITCH SUPPORT£6.27 Add to
053325430255/0SEAT PROTECTION SPRING£4.37 Add to
055112437502/0PLATE£2.06 Add to
061382774305/0SEAT SUPPORT BRACKET£11.76 Add to
064122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
065112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
066325785149/2FIXED SEAT SUPPORT TC/TCP£27.27 Add to
067325060033/0SEAT SWITCH CAM£2.06 Add to
068112815050/0SCREW M5 x 25£2.06 Add to
069112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
070112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
071125430223/2SEAT LIFTING SPRING£6.55 Add to
072112789000/0SCREW TE M5 x 12£2.06 Add to
074125430203/1SPRING£3.69 Add to
076325785147/2MOVING SEAT SUPPORT£38.26 Add to
07725318109/0STOP LEVER£2.86 Add to
078125430202/1SPRING£2.06 Add to
079125510000/0PIN£1.79 Add to
080112604897/0STARLOCK WASHER D=5£2.06 Add to
