Engine

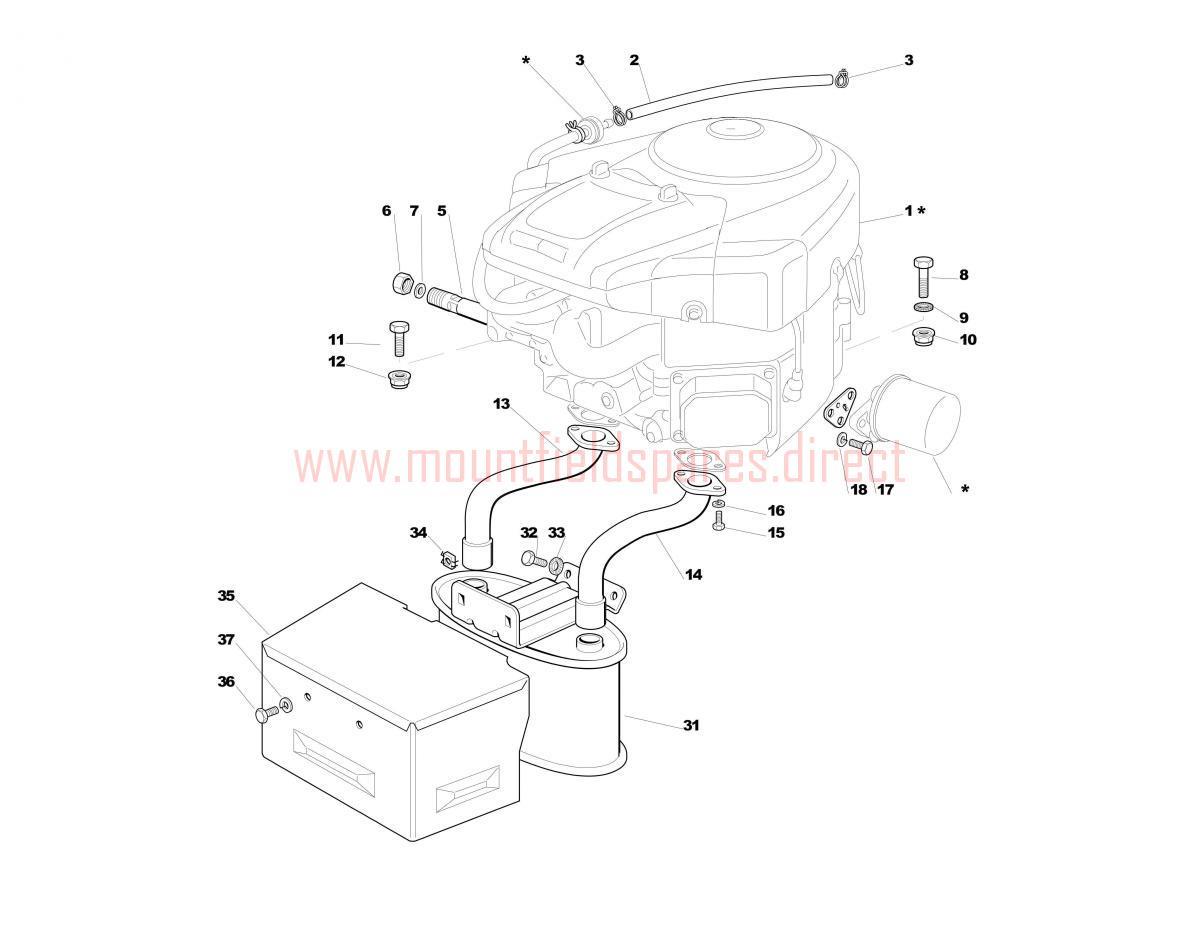

Engine assembly details for Mountfield 2040H (20100406) 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	325869016/1	CONNECTING TUBE	£7.10	Add to
005	125598050/0	OIL DISCHARGE TUBE	£8.04	Add to
006	118737849/0	OIL DRAIN PLUG	£2.47	Add to
007	118401001/1	OIL DRAIN SEAL	£2.06	Add to
008	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
009	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
010	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
011	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
013	118738214/0	EXHAUST PIPE R/H	£91.78	Add to
014	118738215/0	EXHAUST PIPE L/H	£93.36	Add to
015	112735530/0	SCREW 5/16" x 3/4"	£1.91	Add to
016	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
017	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
018	112582100/0	LOCK WASHER M6	£2.06	Add to
031	182750003/0	MUFFLER ASSY	£124.29	Add to
032	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
034	112360425/0	SQUARE NUT M8	£2.18	Add to
035	382598005/2	MUFFLER PROTECTION GUARD	£34.35	Add to
036	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
