Steering

Steering assembly details for Mountfield 1840H (20100406) 2009 model

Parts list

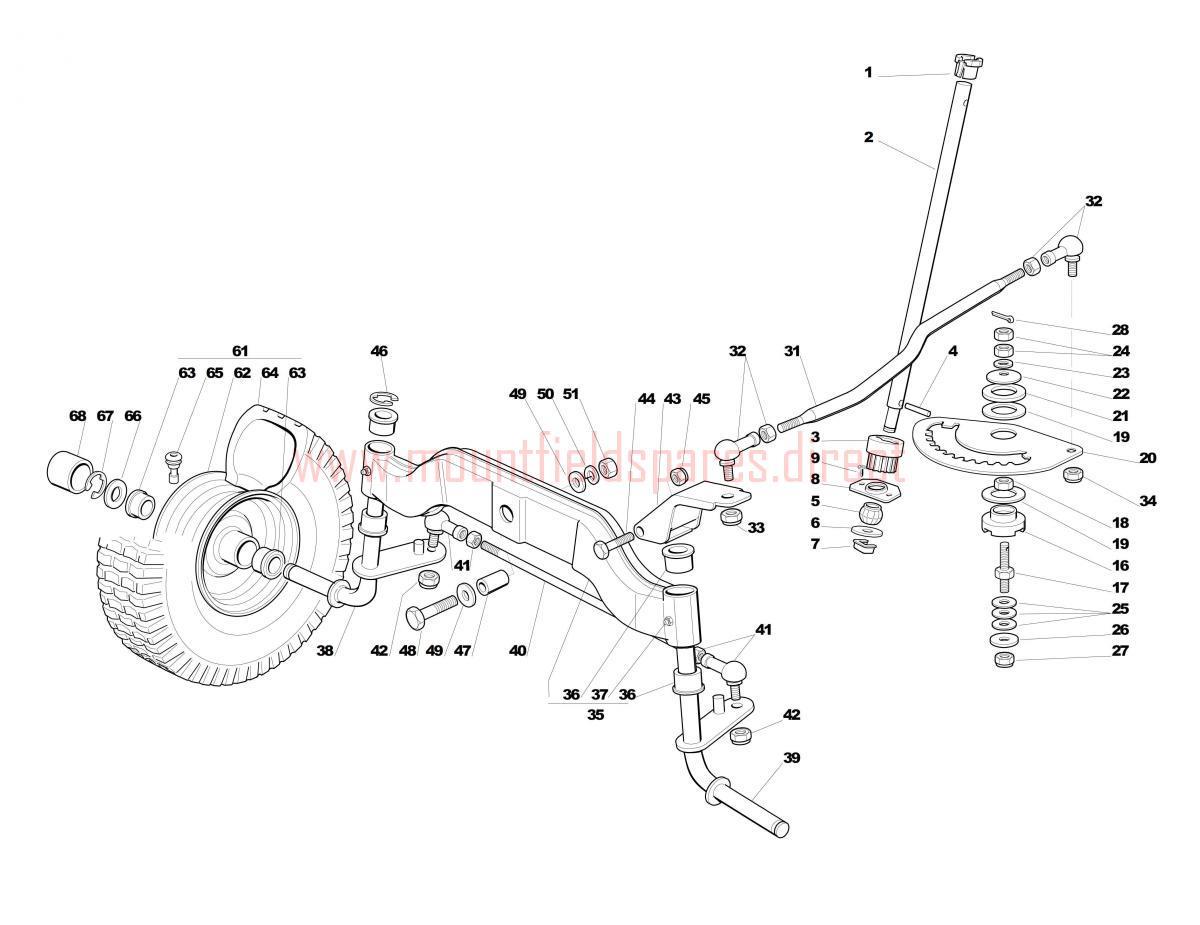

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125034004/0STEERING COLUMN BUSH£6.09 Add to
002125520005/0STEERING COLUMN (OBSOLETE) (OBSOLETE)N/A
003125570000/2STEERING PINION£13.23 Add to
004112645710/0CYLINDRICAL PIN D=6 X 32£2.14 Add to
005325743000/0JOINT£3.00 Add to
006112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
007112436030/0PIN PLATE£1.91 Add to
008325785213/1STEERING JOINT SUPPORT£2.32 Add to
009112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
016125040617/0BUSH£10.66 Add to
01725510065/1Pin (OBSOLETE)N/A
018112295200/0HEXAGON NUT M10£1.79 Add to
019325670012/0WASHER£2.87 Add to
020325735507/0STEERING QUADRANT£43.46 Add to
02125670014/0Washer (OBSOLETE)N/A
022122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
023112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
025322672150/0ANTI-FRICTION WASHER 10.2 X 30 X 0.8 C70£1.91 Add to
026112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
027112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
028112141418/0SPLIT PIN 3 x 20£1.76 Add to
031125033003/1STEERING ROD£36.77 Add to
032122746609/0ANGULAR JOINT M10£18.53 Add to
035382034001/3FRONT AXLE ASSEMBLY£167.33 Add to
036125034002/1BUSH£3.96 Add to
037112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
038382230361/1RIGHT STUB AXLE£39.80 Add to
039382230359/1LEFT STUB AXLE£45.26 Add to
040325840001/1TIE ROD£15.13 Add to
043382318185/0STEERING ARM£23.23 Add to
044112692395/1SCREW M10 X 60 L=60MM£3.64 Add to
045112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
046112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
047125160005/1SPACER£5.37 Add to
048112694100/0HEX-HEAD SCREW M16 x 80£3.69 Add to
049112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
050112587900/0WASHER£2.06 Add to
051112295800/0HEXAGON NUT£1.91 Add to
061382680007/1FRONT WHEEL ASSEMBLY 15" [CARLISLE]£129.74 Add to
062182000590/1FRONT WHEEL RIM£69.78 Add to
063125122200/2WHEEL BEARING D=20£12.05 Add to
064125590020/0TYRE 15 x 6.00-6 WANDA£52.13 Add to
065125950000/0PNEUMATIC VALVE£5.73 Add to
066125670005/2SPINDLE WASHER£3.69 Add to
068122110230/0HUB COVER£2.06 Add to
