BODY WORK 1435E

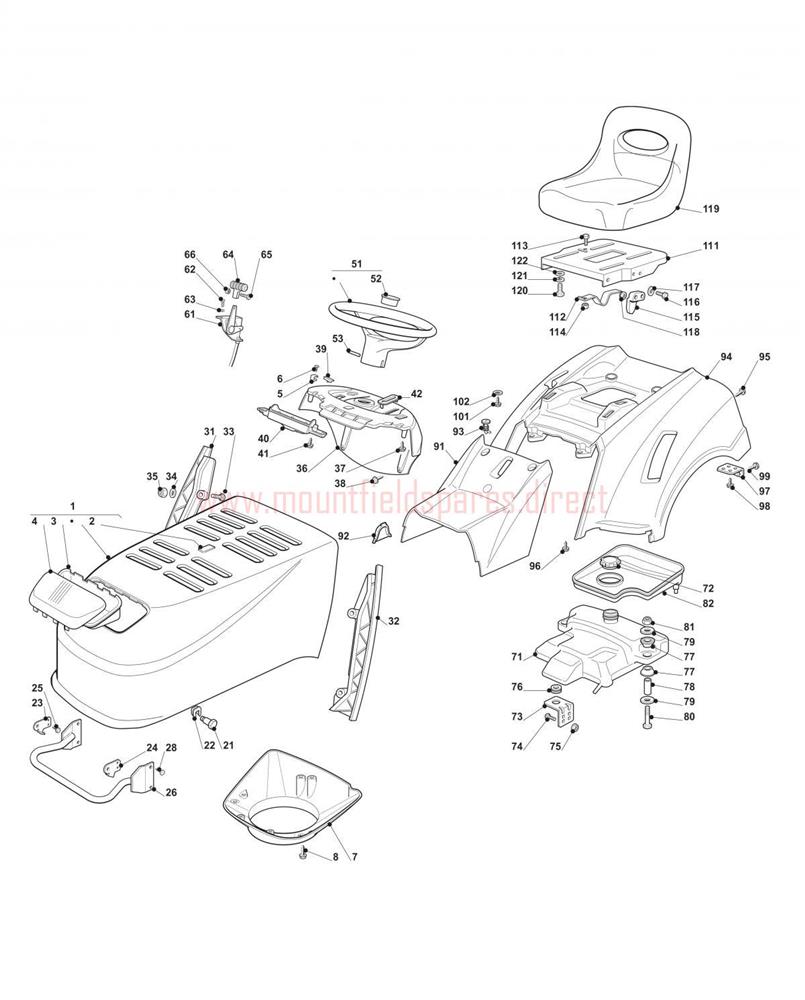

BODY WORK 1435E assembly details for Mountfield 1235M_1435H_1436H_14H36H_1636M_1636H (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076817/2ENGINE HOOD [RED]£225.56 Add to
002325547016/2RED INJECTION PLATE£2.06 Add to
003125485001/0HEADLIGHTS SUPPORT£6.69 Add to
004125410865/0GRILL£23.31 Add to
005125430215/1SPRING CLIP£3.00 Add to
006112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
007325108028/0LONG AIR CONVEYOR£8.14 Add to
008112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
021125510039/0PIN£4.66 Add to
022112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
023325547089/1RIGHT PLATE£4.52 Add to
024325547091/1LEFT PLATE£4.52 Add to
025112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
026382869031/0SILENC.PROTECT PIPE ASSY£38.19 Add to
028112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
03125599008/0RIGHT FOOTBOARD PROFILE 2009£9.49 Add to
03225599009/0LEFT FOOTBOARD PROFILE 2009£9.49 Add to
033112815221/0SCREW M6 x 35£1.79 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
03625120189/0BLACK DASHBOARD 2009£37.56 Add to
037112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
038112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
039125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
040325600074/0PC BOARD COVER£9.07 Add to
04225547181/0BLACK INJECTION PLATE 2009£7.29 Add to
051125961217/1STEERING WHEEL [BLACK]£93.73 Add to
052325120230/0COVER£3.55 Add to
053112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
061182000200/1THROTTLE CABLE£23.79 Add to
062112788512/0SCREW M4 x 12£2.06 Add to
063112581200/0WASHER M4 4.1 x 7.1 x 0.9£2.06 Add to
064125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
065112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
066112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
071325735123/0FUEL TANK (OBSOLETE) (OBSOLETE)N/A
072125795001/1FUEL TANK CAP£8.32 Add to
07325785259/025785259/0 Support (OBSOLETE)N/A
074112815200/0SCREW TTDQ M6X16£2.06 Add to
075112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
076118564522/0GROMMET 4673CA01XS£2.61 Add to
077112712001/0EXTERNAL TANK RUBBER HF 1211 (HONDA)£3.41 Add to
078125040625/0TANK FIXING SLEEVE£5.61 Add to
079112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
080112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
081112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
08225600073/025600073/0 Guard (OBSOLETE)N/A
09125110324/0RED WHEELS COVER 2008£45.23 Add to
092325207172/0COVER CLOSE CAP£4.52 Add to
093125580020/2SPRING TENSIONED SCREW£7.23 Add to
094325110322/0WHEELS COVER [RED] (OBSOLETE)N/A
097325755041/0ANGLE BRACKET£2.06 Add to
099112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
102112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
111325547033/1SEAT PLATE£38.44 Add to
112125430223/2SEAT LIFTING SPRING£6.55 Add to
113112789000/0SCREW TE M5 x 12£2.06 Add to
114112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
115327063021/1MICRO SEAT OPERATION CAM£2.74 Add to
116112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
117112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
119125722453/1SEAT£187.79 Add to
120112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
121112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
122112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
