ELECTRICAL EQUIPMENT 725M

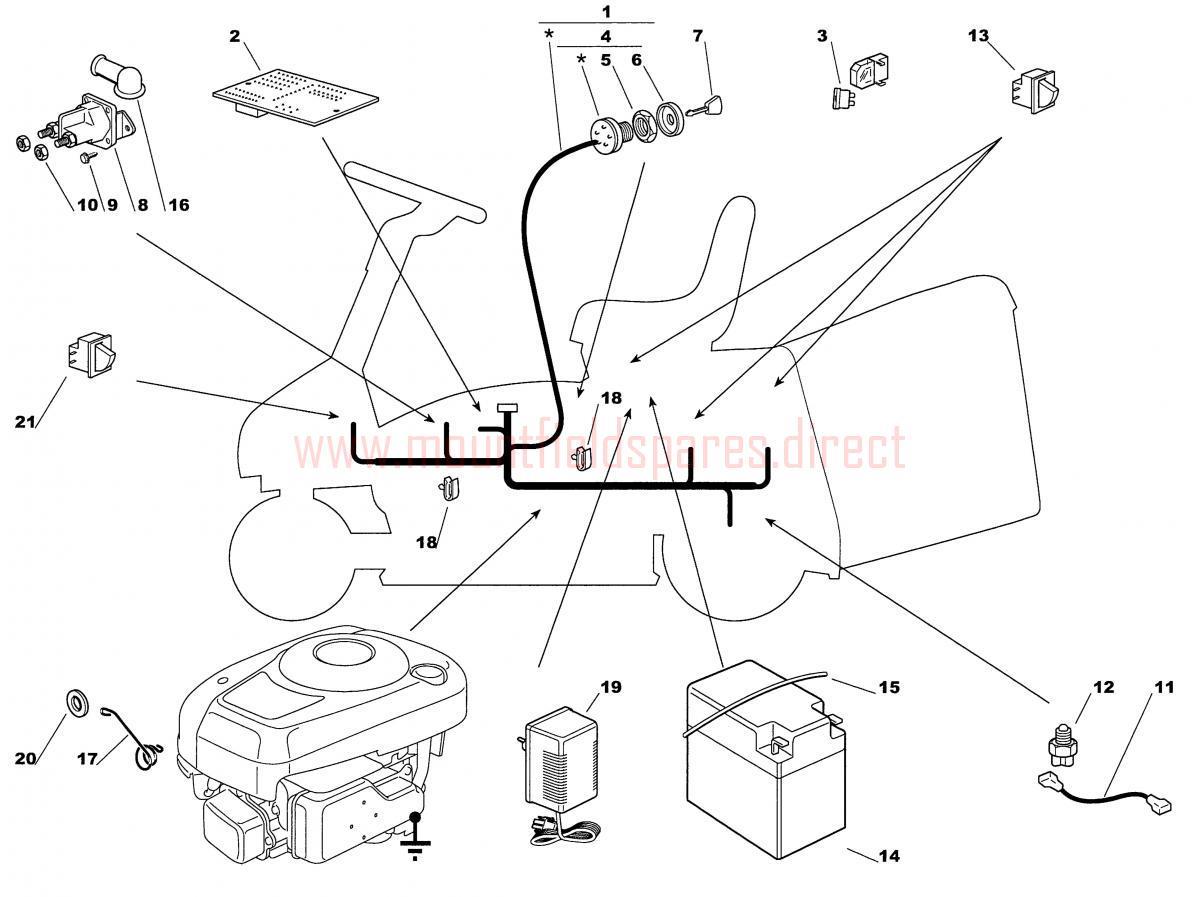

ELECTRICAL EQUIPMENT 725M assembly details for Mountfield 625M-725M 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1136-1639-02	Cable harness (OBSOLETE)	N/A
002	127722354/2	PC BOARD No returns on this item	£101.13	Add to
003	133340040/0	FUSE 10A	£2.47	Add to
004	118450065/1	STARTING SWITCH	£32.99	Add to
005	118400861/0	LOCKING RING	£5.32	Add to
006	118565351/0	LOCKING RING COVER	£6.14	Add to
007	118210016/1	IGNITION KEY [PAIR]	£13.17	Add to
008	118736112/0	SOLENOID	£39.80	Add to
009	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
010	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
011	127065060/0	NEUTRAL SWITCH/HARNESS CONNECT	£13.49	Add to
012	119700046/0	MICRO NEUTRAL SWITCH	£64.32	Add to
013	119410622/1	MICRO SWITCH N.O.	£7.10	Add to
014	118120004/0	BATTERY 12V 7.2AH [No Returns on This Item]	£97.50	Add to
015	127430572/0	BATTERY FIXING ROD	£1.91	Add to
016	118564861/1	RED RUBBER TERMINAL COVER	£7.90	Add to
017	1136-0957-01	Spring (OBSOLETE)	N/A
018	133320506/0	CABLE CLIP	£1.79	Add to
019	182180190/0	BATTERY CHARGER KIT 1A UK-CE PLUG	£71.14	Add to
020	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
021	119410614/0	MICRO SWITCH N.C.	£6.55	Add to
