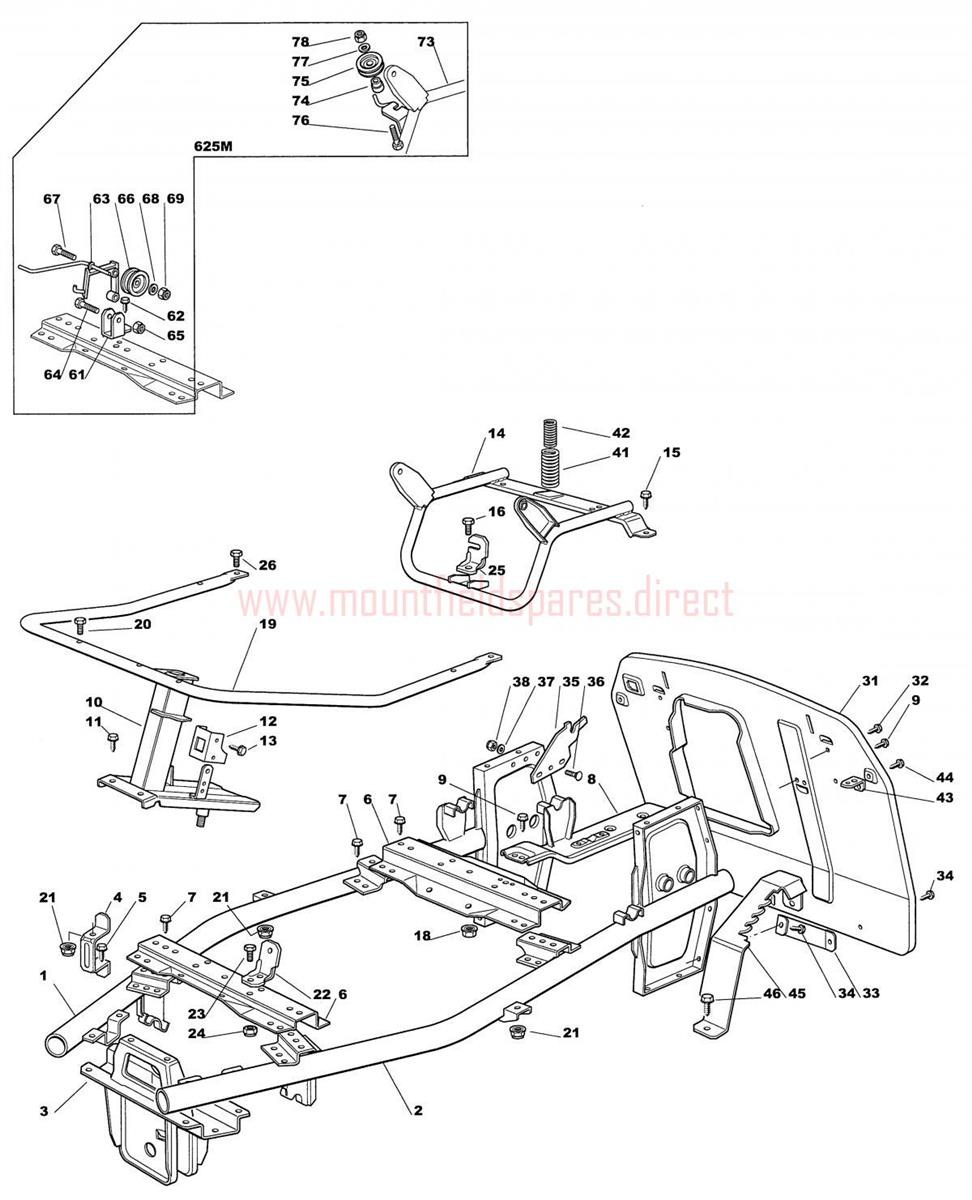

CHASSIS assembly details for Mountfield 625M-725M 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1136-1085-01	Side frame-RH (OBSOLETE)	N/A
002	1136-1086-01	Side frame-LH (OBSOLETE)	N/A
003	1136-1100-01	Support (OBSOLETE)	N/A
004	1136-1005-01	Clamp (OBSOLETE)	N/A
005	112735122/0	HEX-HEAD SELF-TAP SCREW 6.3 x 16	£2.06	Add to
006	1136-0988-01	Reinforcement (OBSOLETE)	N/A
008	1136-1094-01	Reinforcement (OBSOLETE)	N/A
010	384783037/0	STEERING COLUMN SUPPORT EL 63	£61.09	Add to
012	327772095/0	SUPPORT BRACKET	£2.06	Add to
013	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
014	384801117/1	SEAT SUPPORT FRAME	£50.18	Add to
016	112793701/0	HEX-HEAD SCREW M8 x 30	£1.76	Add to
018	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
019	1136-1018-01	Support (OBSOLETE)	N/A
020	112792099/0	HEX HEAD SCREW M6 x 30	£1.79	Add to
021	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
022	1136-1010-01	Angle bracket (OBSOLETE)	N/A
023	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
025	1136-1206-01	Angle bracket (OBSOLETE)	N/A
026	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
031	1136-1090-01	Plate-rear (OBSOLETE)	N/A
033	1136-0987-01	Reinforcement (OBSOLETE)	N/A
035	1136-1007-01	Clamp (OBSOLETE)	N/A
036	9897-0820-16	SCREW M8 x 20	£2.32	Add to
037	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
038	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
041	1136-0960-01	Spring (OBSOLETE)	N/A
042	1136-0962-01	Spring (OBSOLETE)	N/A
043	1136-0999-01	Angle bracket (OBSOLETE)	N/A
044	1136-1634-01	Screw (OBSOLETE)	N/A
045	1136-0997-01	Rack (OBSOLETE)	N/A
061	1136-1274-01	Angle bracket (OBSOLETE)	N/A
063	384783037/0	STEERING COLUMN SUPPORT EL 63	£61.09	Add to
064	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
066	1136-1279-01	Wheel (OBSOLETE)	N/A
067	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
068	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
073	1136-1277-01	Support (OBSOLETE)	N/A
074	1136-1224-01	Spacer (OBSOLETE)	N/A
