BRAKE CONTROL

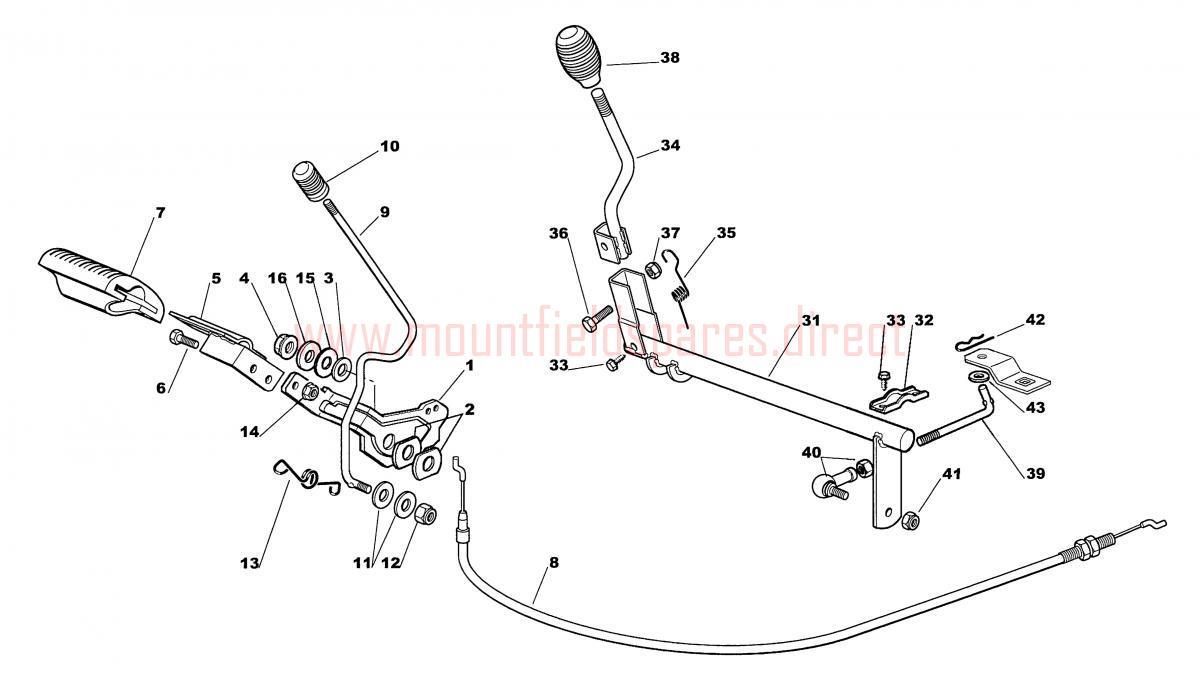

BRAKE CONTROL assembly details for Mountfield 625M-725M 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1136-0968-01	Pedal (OBSOLETE)	N/A
002	327670054/0	WASHER	£10.09	Add to
003	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
004	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
005	1136-1089-01	Pedal-upper (OBSOLETE)	N/A
006	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
007	125110269/0	BRAKE PEDAL COVER	£4.10	Add to
008	384207105/0	BRAKE CONTROL CABLE	£20.04	Add to
009	1136-0933-01	Rod (OBSOLETE)	N/A
010	127395050/1	BLACK BRAKE KNOB RIDER/TCJ	£3.40	Add to
011	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
013	1136-0959-01	Spring (OBSOLETE)	N/A
014	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
015	1136-1204-01	Washer (OBSOLETE)	N/A
016	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
031	1136-1062-01	Gear shift axle (OBSOLETE)	N/A
032	327546015/2	WZ FLAT FULCR.AXLE FIX PLATE	£2.06	Add to
033	1136-1634-01	Screw (OBSOLETE)	N/A
034	1136-1080-01	Gear shift lever (OBSOLETE)	N/A
035	1136-0963-01	Spring (OBSOLETE)	N/A
036	112674700/0	SCREW M6 X 35	£2.06	Add to
037	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
038	125394510/0	CONTROL KNOB [BLACK]	£4.35	Add to
039	1136-0932-01	Rod (OBSOLETE)	N/A
040	122746610/0	ANGULAR JOINT NS13 M8	£17.86	Add to
041	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
042	124487997/0	SPRING CLIP D=1.8	£2.06	Add to
