TRANSMISSION (1)

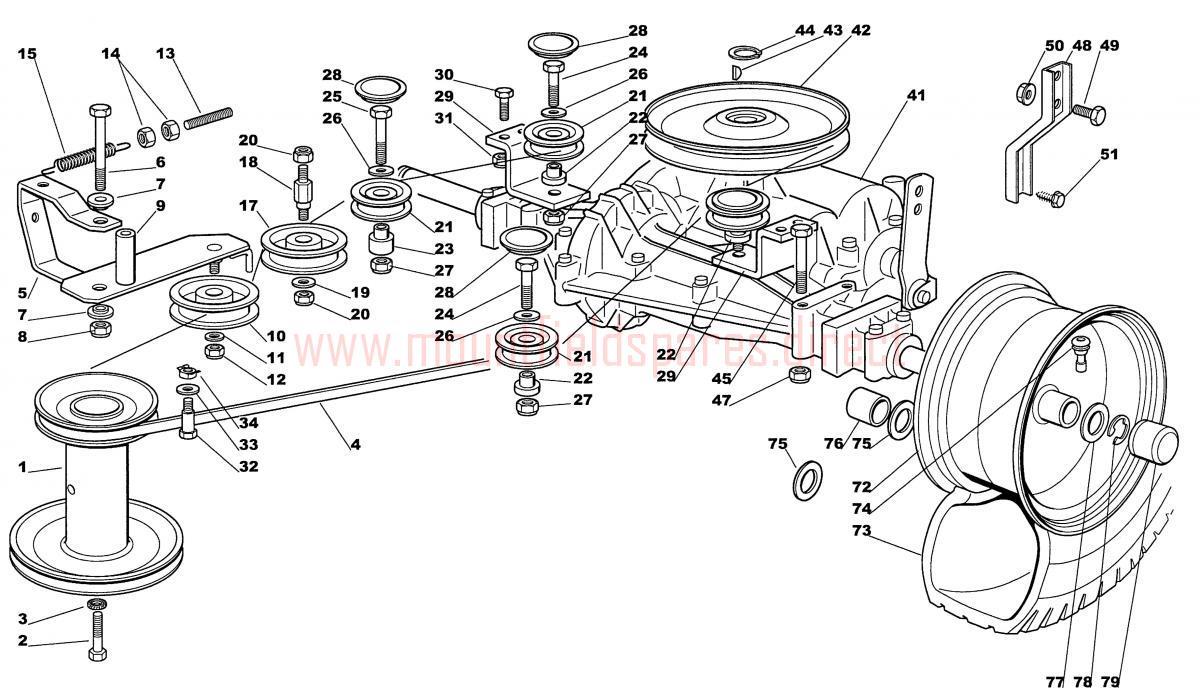

TRANSMISSION (1) assembly details for Mountfield 1440H-1840M-1840H-2040H-2248H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125601569/0MOTOR PULLEY£98.40 Add to
002112737310/0HEX-HEAD SCREW 7/16" x 2" 20 UNF£1.90 Add to
003120001173/0SPRING£4.01 Add to
004135062011/0TRANSMISSION BELT A98 ES£69.78 Add to
005382318165/2LEVER£26.62 Add to
006112692000/0SCREW M8 x 75£2.06 Add to
007125038002/1BUSH£2.06 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
009125160027/0SPACER£2.87 Add to
010125601554/0PULLEY£26.18 Add to
011112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
013125840010/1TIE ROD£2.32 Add to
014112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
015125430219/1SPRING£3.96 Add to
017125601555/0PULLEY£30.26 Add to
0181136-0234-01Stud bolt (OBSOLETE)N/A
021325601570/1BELT PULLEY£24.95 Add to
022125160018/1PULLEY SPACER£6.71 Add to
023125160024/2PULLEY SPACER£8.21 Add to
024119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
0259997-0850-16SCREW M6S M8 x 50£4.52 Add to
028125109521/1COVER£2.06 Add to
029125840010/1TIE ROD£2.32 Add to
0309997-0620-16SCREW M6S M6 x 20£2.06 Add to
031112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
032125580018/0TRANSMISSION BELT GUIDE PIN£4.52 Add to
034112360425/0SQUARE NUT M8£2.18 Add to
041118400940/1TRANSAXLE MST 205-554C PEERLESS£1,226.70 Add to
042182601503/0MOBILE PULLEY£102.48 Add to
043112139430/0KEY 3/16" x 3/4"£2.06 Add to
044112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
045112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
047112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
04825774285/0TRANSAXLE GROUP SUPPORT CLAMP£8.70 Add to
049112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
0511136-0017-01Screw (OBSOLETE)N/A
072182000592/0REAR WHEEL RIM£103.58 Add to
0731136-2132-01Tire (Kenda) (OBSOLETE)N/A
074125950000/0PNEUMATIC VALVE£5.73 Add to
075112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
0761136-1131-01Spacer (OBSOLETE)N/A
077125670005/2SPINDLE WASHER£3.69 Add to
078112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
079122110230/0HUB COVER£2.06 Add to
