MOWER DECK LIFT

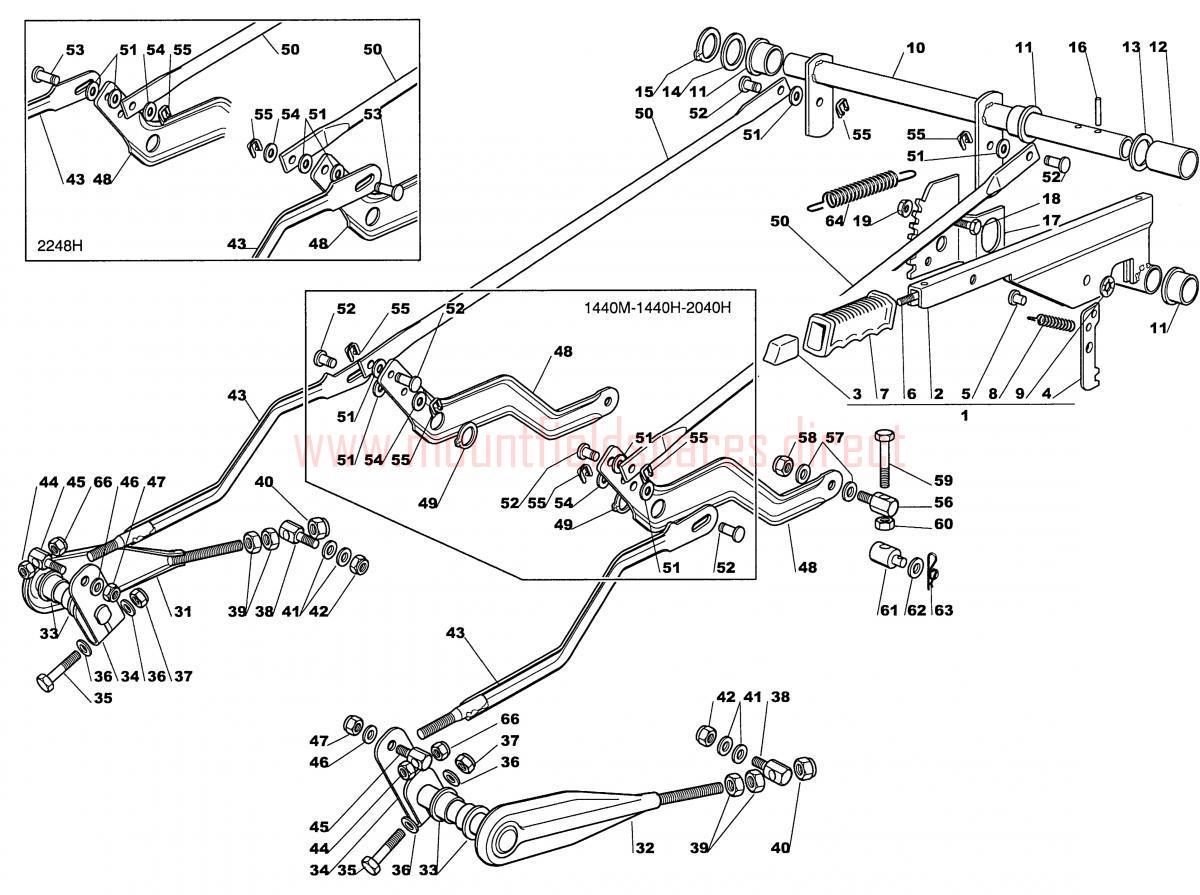

MOWER DECK LIFT assembly details for Mountfield 1440H-1840M-1840H-2040H-2248H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
382300002/1LEVER£55.10 Add to
1136-0493-01Lift lever (OBSOLETE)N/A
125605000/1BUTTON£2.74 Add to
1136-0222-01Dog (OBSOLETE)N/A
1136-0227-01Pin (OBSOLETE)N/A
125033002/1PUSH ROD£4.52 Add to
125394504/1KNOB£2.87 Add to
1136-0203-01Spring (OBSOLETE)N/A
112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
1136-0450-01Lift axle (OBSOLETE)N/A
1136-0078-01Bushing (OBSOLETE)N/A
125160025/1SPACER£6.55 Add to
322672153/0ANTI-FRICTION WASHER 20.2 x 30 x 0.8£2.06 Add to
112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
112609260/0CIRCLIP D=20£2.02 Add to
9595-0235-00LOCATING PIN£2.47 Add to
1136-0319-01HEIGHT ADJUST SECTOR£11.04 Add to
112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
382318155/0FRONT R/H FULCRUM LEVER£25.75 Add to
1136-1041-01Lift lever front-RH (OBSOLETE)N/A
1136-0498-01Lift lever front-LH (OBSOLETE)N/A
1136-1042-01Lift lever front-LH (OBSOLETE)N/A
125040605/0BUSH£2.06 Add to
325318161/1LEVER£7.92 Add to
112692080/0HEX-HEAD SCREW M8 x 90£2.06 Add to
112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
112295200/0HEXAGON NUT M10£1.79 Add to
112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
382000477/3CONNECTING ROD£17.80 Add to
1136-0242-01Pivot bolt (OBSOLETE)N/A
325318153/2REAR CUTTER DECK LEVER£12.40 Add to
112609255/0CIRCLIP D=19£2.06 Add to
1136-0112-01Connecting rod-rear (OBSOLETE)N/A
325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
125510053/2PIN£2.06 Add to
125510048/1FIXING PIN£2.32 Add to
112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
112794980/0SCREW 10 x 100£2.06 Add to
125510070/1PIN£5.46 Add to
112523090/0WASHER M10 11 x 40 x 2.5£1.91 Add to
124487998/0R CLIP D=2£2.06 Add to
1136-0207-01Spring (OBSOLETE)N/A
112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
