CONTROLS (2)

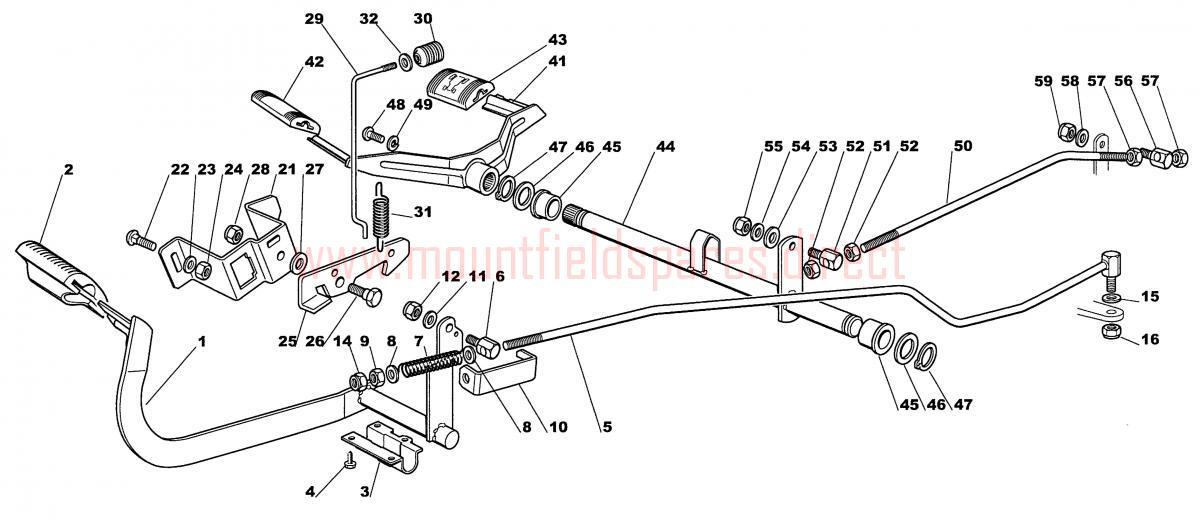

CONTROLS (2) assembly details for Mountfield 1440H-1840M-1840H-2040H-2248H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500011/2BRAKE PEDAL£70.68 Add to
002125110267/0BRAKE PEDAL COVER£4.23 Add to
00325547081/1PLATE£8.70 Add to
0049847-8016-16SCREW RXS B10 x 16£2.32 Add to
0051136-0453-01Brake rod (OBSOLETE)N/A
006125510052/1PIN£5.46 Add to
007125430236/0BRAKE ROD SPRING£6.79 Add to
008112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
009112295200/0HEXAGON NUT M10£1.79 Add to
010325774275/1CLAMP BRACKET£3.83 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0211136-0341-01Support (OBSOLETE)N/A
022112815210/0SCREW M6 x 20£2.06 Add to
023112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
025325253001/0HOOK£4.52 Add to
026122524970/2SEAT FULCRUM PIN£2.18 Add to
027325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
0291136-2067-01Rod£9.38 Add to
0301136-0196-01Knob (OBSOLETE)N/A
031125430213/0SPRING£2.06 Add to
032112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
0411136-0509-01Drive pedal (OBSOLETE)N/A
0421136-0149-01Pedal cover-front (OBSOLETE)N/A
0431136-0150-01Pedal cover-rear (OBSOLETE)N/A
0441136-0451-01Pedal axle (OBSOLETE)N/A
0451136-0078-01Bushing (OBSOLETE)N/A
046322672153/0ANTI-FRICTION WASHER 20.2 x 30 x 0.8£2.06 Add to
047112609260/0CIRCLIP D=20£2.02 Add to
0489939-0816-16SCREW MC6S M8X16£7.23 Add to
049112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
05025033031/0ROD£11.87 Add to
0511136-0241-01PIVOT BOLT£4.99 Add to
052112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
