CHASSIS

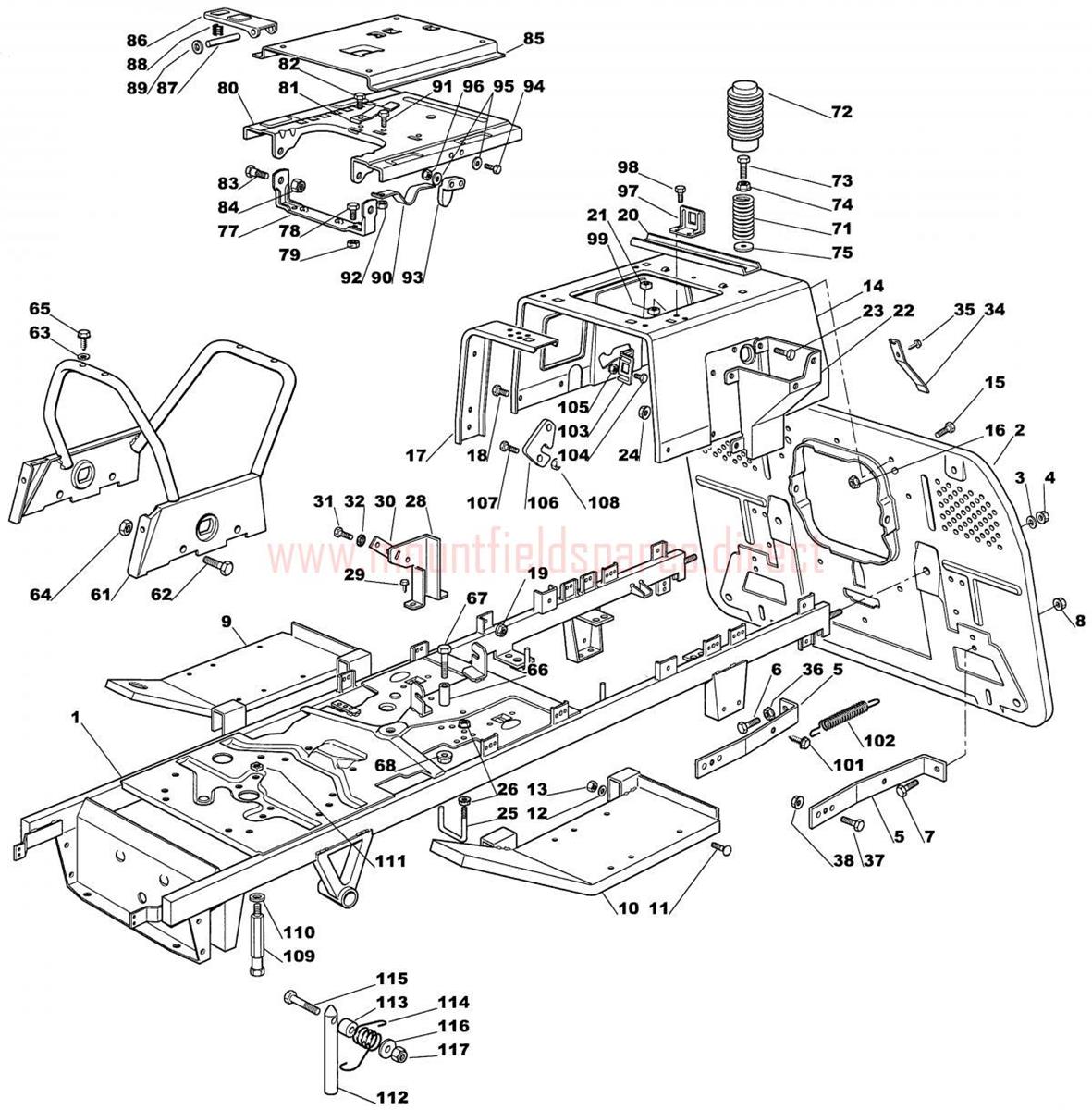

CHASSIS assembly details for Mountfield 1440H-1840M-1840H-2040H-2248H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382800075/1	CHASSIS FRAME	£724.50	Add to
002	1136-0514-01	Plate-rear (OBSOLETE)	N/A
003	112585100/0	WASHER GROWER M10 UNI 1751	£2.06	Add to
004	112295200/0	HEXAGON NUT M10	£1.79	Add to
005	325774273/2	REINFORCING BRACKET	£9.28	Add to
006	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
007	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
008	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
009	82510041/1	RIGHT FOOTBOARD ASS'Y TC 2000. 2008	£180.33	Add to
010	82510043/1	LEFT FOOTBOARD ASS.Y TC	£61.79	Add to
011	112815245/0	SCREW M6 x 45	£2.06	Add to
012	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
013	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
014	1136-0338-01	Seat support (OBSOLETE)	N/A
015	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
016	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
017	325650065/1	REINFORCING BRACKET	£9.54	Add to
020	325650067/1	REINFORCING PLATE	£6.27	Add to
021	1136-0003-01	Square nut (OBSOLETE)	N/A
022	25785137/0	LIFTING LEVER SUPPORT	£16.86	Add to
025	125580019/1	BELT GUIDE	£4.37	Add to
028	1136-0340-01	Support (OBSOLETE)	N/A
029	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
030	327546019/0	WZ MICRO NEUTRAL FIX PLATE	£1.79	Add to
031	112735602/0	"SELF-FORMING SCREW M3 x 20 ""TAPTITE""	£2.06	Add to
032	112581100/0	WASHER GROWER M3 UNI 1751 WZ	£1.79	Add to
034	1136-0220-01	Spring (OBSOLETE)	N/A
035	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
036	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
061	82650041/1	CENTRAL STIFFENING 2009	£51.89	Add to
062	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
063	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
065	112731350/0	SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15	£2.06	Add to
066	122167840/0	SPACER	£2.06	Add to
067	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
071	125430205/1	SEAT SHOCK ABSORBER SPRING	£6.01	Add to
072	325737002/0	PROTECTION COVER	£6.01	Add to
073	125943001/1	SCREW	£2.06	Add to
075	112523070/0	WASHER M8 8.5 x 32 x 2.5	£2.06	Add to
077	1136-0530-01	Seat clamp (OBSOLETE)	N/A
080	325785149/2	FIXED SEAT SUPPORT TC/TCP	£27.27	Add to
081	125430203/1	SPRING	£3.69	Add to
083	122524970/2	SEAT FULCRUM PIN	£2.18	Add to
084	112155010/0	SELF-LOCKING NUT M8 A-LOK ACC.6S	£2.47	Add to
085	1136-0342-01	Seat support (OBSOLETE)	N/A
086	25318109/0	STOP LEVER	£2.86	Add to
087	125510000/0	PIN	£1.79	Add to
088	1136-0200-01	Spring (OBSOLETE)	N/A
089	9675-0008-02	STARLOCK WASHER D=5	£4.01	Add to
090	125430223/2	SEAT LIFTING SPRING	£6.55	Add to
091	112789000/0	SCREW TE M5 x 12	£2.06	Add to
092	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
093	325060033/0	SEAT SWITCH CAM	£2.06	Add to
094	112789020/0	HEX-HEAD SCREW M5 x 25	£2.06	Add to
095	9699-0024-02	WASHER 2011	£3.64	Add to
096	112372550/0	NUT WITH WING M5	£2.06	Add to
097	325755025/2	SEAT SWITCH SUPPORT	£6.27	Add to
099	112437502/0	PLATE	£2.06	Add to
101	9847-8216-16	SCREW (OBSOLETE)	N/A
102	1136-1138-01	Spring (OBSOLETE)	N/A
103	382500011/2	BRAKE PEDAL	£70.68	Add to
106	1136-1140-01	Shoe (OBSOLETE)	N/A
109	1136-1146-01	Belt guide (OBSOLETE)	N/A
110	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
111	112360425/0	SQUARE NUT M8	£2.18	Add to
112	1136-1148-01	Belt guide (OBSOLETE)	N/A
113	1136-1132-01	Spacer (OBSOLETE)	N/A
114	1136-1139-01	Spring (OBSOLETE)	N/A
115	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
116	112523050/0	WASHER M6 6.6 x 24 x 2	£2.06	Add to
