CHASSIS

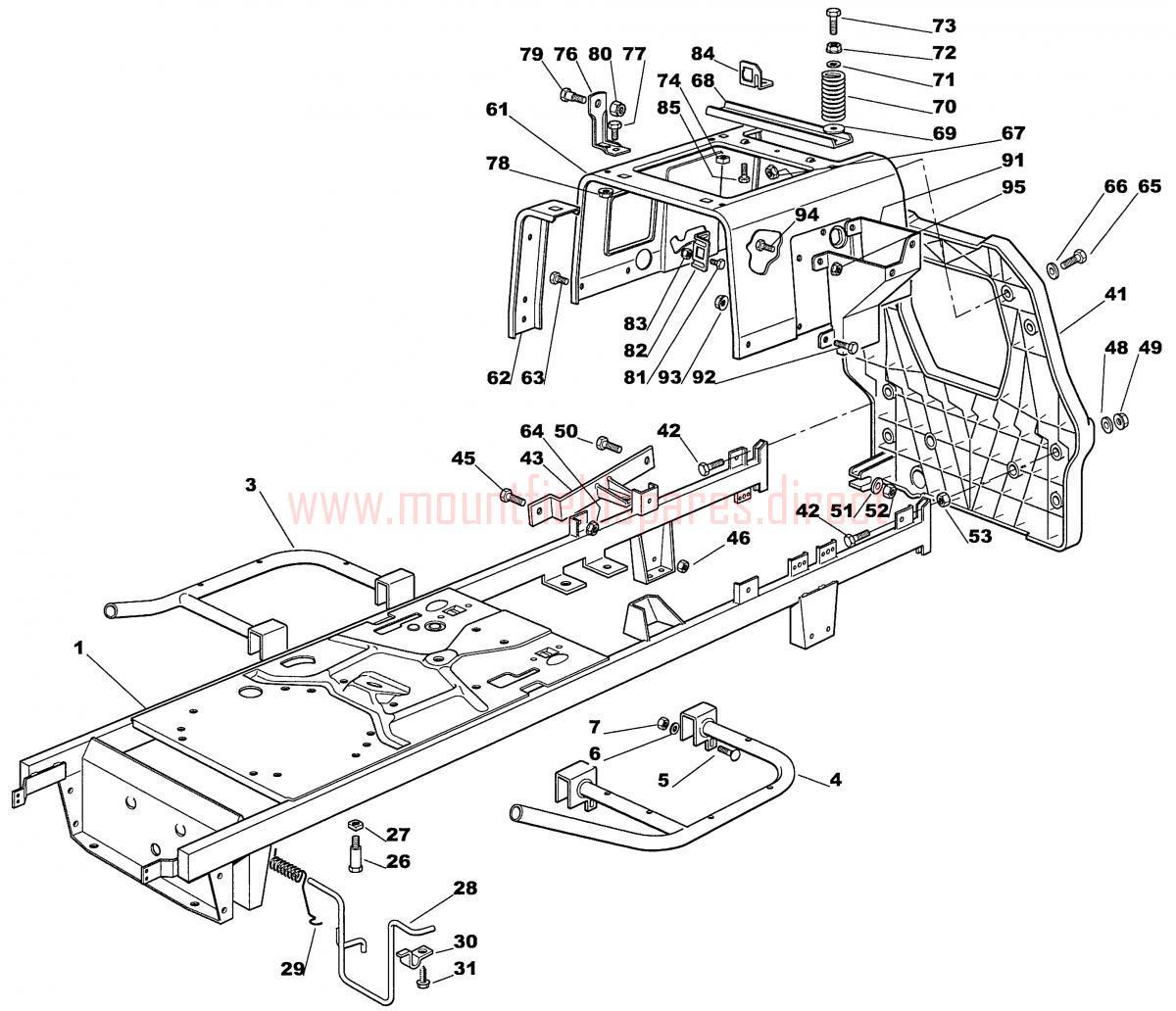

CHASSIS assembly details for Mountfield 1438M 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1136-1499-01	Frame (OBSOLETE)	N/A
003	1136-0548-01	Footboard support-RH (OBSOLETE)	N/A
004	1136-0549-01	Footboard support-LH (OBSOLETE)	N/A
005	112815245/0	SCREW M6 x 45	£2.06	Add to
006	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
007	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
026	1136-0907-01	Belt guide (OBSOLETE)	N/A
027	112360425/0	SQUARE NUT M8	£2.18	Add to
028	1136-0881-01	Belt guide (OBSOLETE)	N/A
029	1136-0896-01	Spring (OBSOLETE)	N/A
030	1136-1247-01	Plate (OBSOLETE)	N/A
031	9847-8216-16	SCREW (OBSOLETE)	N/A
041	125547106/0	PLASTIC REAR PLATE	£82.05	Add to
042	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
043	1136-1051-01	Reinforcement (OBSOLETE)	N/A
045	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
046	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
048	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
049	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
050	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
051	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
061	1136-0337-01	Seat support (OBSOLETE)	N/A
062	25650055/0	FRONT SEAT STIFFENING 2007	£8.70	Add to
063	9997-0614-16	SCREW M6S [M6X35]	£5.21	Add to
064	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
065	9997-0620-16	SCREW M6S M6 x 20	£2.06	Add to
068	25650056/0	REAR SEAT STIFFENING 2007	£8.70	Add to
070	125430205/1	SEAT SHOCK ABSORBER SPRING	£6.01	Add to
073	125943001/1	SCREW	£2.06	Add to
074	1136-0003-01	Square nut (OBSOLETE)	N/A
076	1136-0321-01	Bracket (OBSOLETE)	N/A
079	122524970/2	SEAT FULCRUM PIN	£2.18	Add to
080	112155010/0	SELF-LOCKING NUT M8 A-LOK ACC.6S	£2.47	Add to
081	112789000/0	SCREW TE M5 x 12	£2.06	Add to
082	382500011/2	BRAKE PEDAL	£70.68	Add to
083	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
084	325755025/2	SEAT SWITCH SUPPORT	£6.27	Add to
085	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
091	25785057/0	BRACKET 2007	£18.81	Add to
