TRANSMISSION (2)

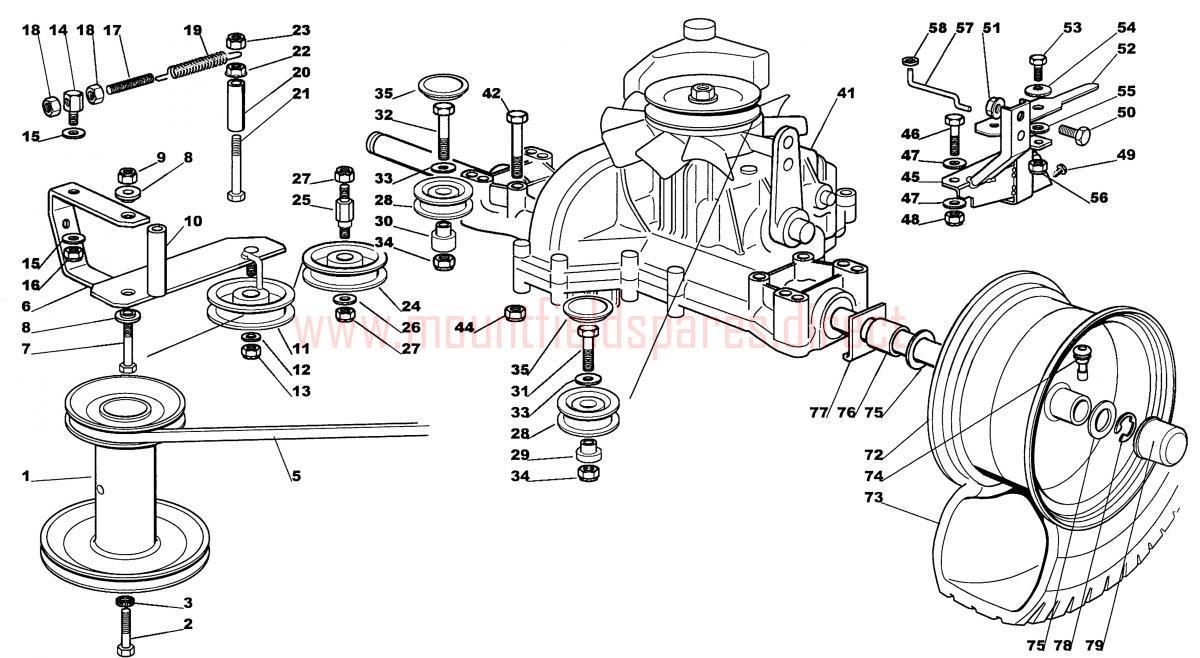

TRANSMISSION (2) assembly details for Mountfield 1236M-1436S-1436H-1636M-1636H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	25601548/1	MOTOR PULLEY 2007	£124.27	Add to
002	112737310/0	HEX-HEAD SCREW 7/16" x 2" 20 UNF	£1.90	Add to
003	120001173/0	SPRING	£4.01	Add to
005	135061980/0	TRANSMISSION BELT A94	£42.21	Add to
006	1136-0489-01	Tension arm (OBSOLETE)	N/A
007	112792099/0	HEX HEAD SCREW M6 x 30	£1.79	Add to
008	125038002/1	BUSH	£2.06	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	1136-0166-01	Spacer (OBSOLETE)	N/A
011	125601554/0	PULLEY	£26.18	Add to
012	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
015	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
017	125840005/0	TIE ROD	£2.87	Add to
018	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
019	125430219/1	SPRING	£3.96	Add to
020	1136-0162-01	Spacer (OBSOLETE)	N/A
021	112692050/0	HEX-HEAD SCREW	£1.91	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
024	125601555/0	PULLEY	£30.26	Add to
025	1136-0234-01	Stud bolt (OBSOLETE)	N/A
028	325601570/1	BELT PULLEY	£24.95	Add to
029	1136-0174-01	Spacer-LH (OBSOLETE)	N/A
030	125160024/2	PULLEY SPACER	£8.21	Add to
031	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
032	9997-0850-16	SCREW M6S M8 x 50	£4.52	Add to
035	125109521/1	COVER	£2.06	Add to
041	118400960/0	HYDRO TRANSAXLE K46S	£1,492.43	Add to
042	112793900/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
045	1136-0543-01	Support (OBSOLETE)	N/A
046	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
047	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
049	9847-8216-16	SCREW (OBSOLETE)	N/A
050	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
052	325318157/0	LEVER	£5.73	Add to
053	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
054	112369500/0	SPRING WASHER D=8	£1.79	Add to
057	125033033/1	ROD	£2.47	Add to
058	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
072	182000592/0	REAR WHEEL RIM	£103.58	Add to
073	1136-2132-01	Tire (Kenda) (OBSOLETE)	N/A
074	125950000/0	PNEUMATIC VALVE	£5.73	Add to
075	112521410/0	WASHER M20 21 x 37 x 3	£1.91	Add to
076	125160031/0	WHEEL SPACER	£3.69	Add to
077	325670025/0	SPACER WASHER TT	£4.27	Add to
078	112001000/0	CIRCLIP ID=15 TH=1.5	£1.83	Add to
079	122110230/0	HUB COVER	£2.06	Add to
