GRASS CATCHER (fixed part)

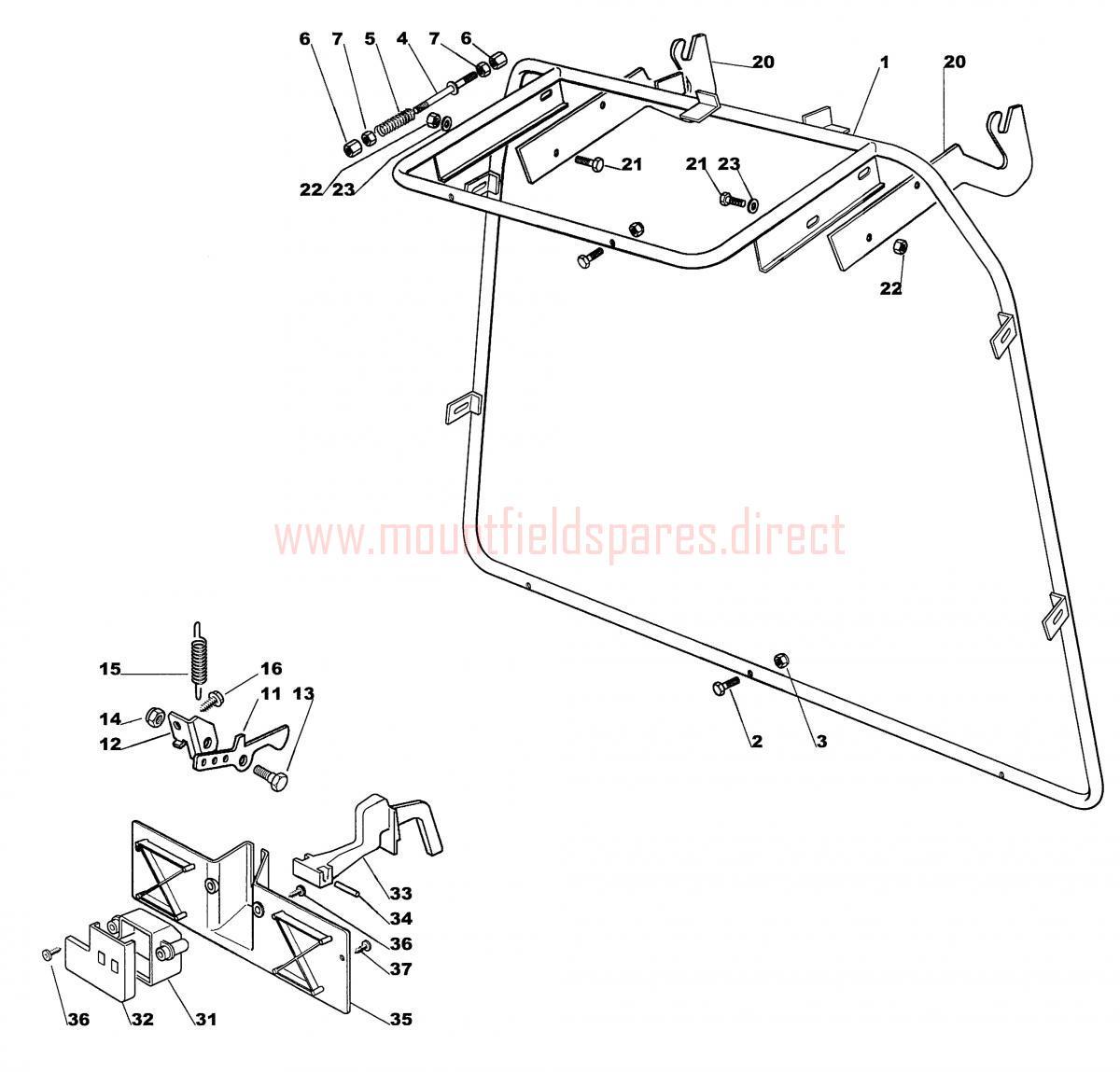

GRASS CATCHER (fixed part) assembly details for Mountfield 1236M-1436S-1436H-1636M-1636H 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382800017/1	GRASSCATCHER FRAME	£143.37	Add to
002	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
003	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
004	1136-0445-01	Push rod (OBSOLETE)	N/A
005	1136-0216-01	Spring (OBSOLETE)	N/A
006	1136-0236-01	Push nut (OBSOLETE)	N/A
007	112292100/0	HEXAGON NUT M6	£1.47	Add to
011	1136-1476-01	Bracket (OBSOLETE)	N/A
012	325755031/1	CLAMP BRACKET (OBSOLETE) (OBSOLETE)	N/A
013	1136-1470-01	Pin (OBSOLETE)	N/A
014	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
015	125430220/0	SPRING	£4.52	Add to
016	112735122/0	HEX-HEAD SELF-TAP SCREW 6.3 x 16	£2.06	Add to
020	1136-0334-01	Support (OBSOLETE)	N/A
021	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
023	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
031	125600041/0	MICRO PROTECTION COVER	£2.32	Add to
032	125600042/0	MICRO PROTECTION COVER	£3.41	Add to
033	125318124/0	MICRO CONTROL LEVER	£2.32	Add to
034	112400030/0	PIN D=3 L=30	£1.91	Add to
035	1136-0326-01	Bracket (OBSOLETE)	N/A
036	9847-8013-16	Screw (OBSOLETE)	N/A
037	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
