CHASSIS

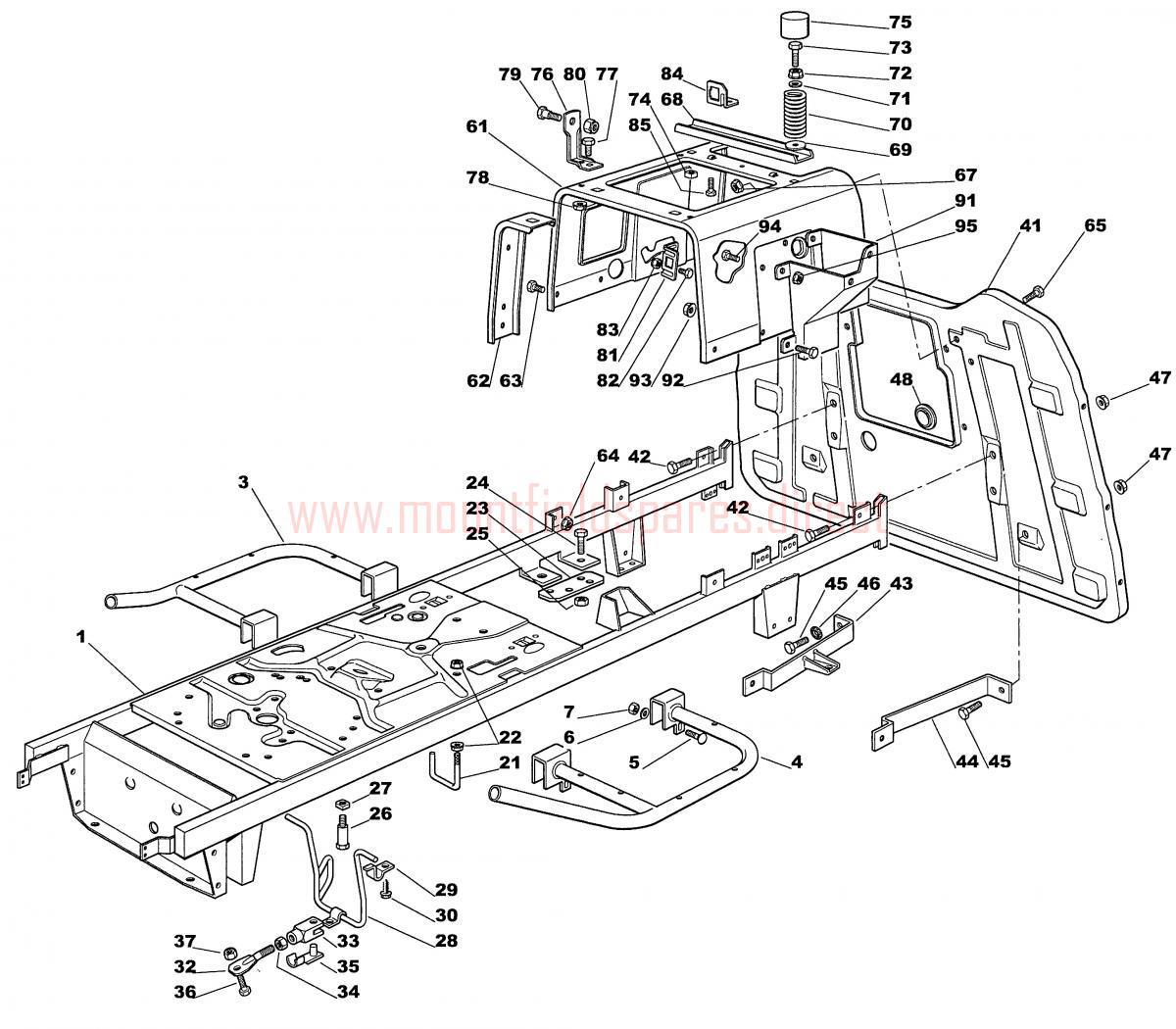

CHASSIS assembly details for Mountfield 1236M-1436S-1436H-1636M-1636H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1136-1499-01	Frame (OBSOLETE)	N/A
003	1136-0548-01	Footboard support-RH (OBSOLETE)	N/A
004	1136-0549-01	Footboard support-LH (OBSOLETE)	N/A
005	112815245/0	SCREW M6 x 45	£2.06	Add to
006	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
007	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
021	125580019/1	BELT GUIDE	£4.37	Add to
022	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
023	25547101/0	LEFT PLATE 2007	£8.70	Add to
024	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
025	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
026	1136-0907-01	Belt guide (OBSOLETE)	N/A
027	112360425/0	SQUARE NUT M8	£2.18	Add to
028	325270320/0	BELT GUIDE	£37.49	Add to
029	1136-1247-01	Plate (OBSOLETE)	N/A
030	9847-8216-16	SCREW (OBSOLETE)	N/A
032	1136-1281-01	Tie rod (OBSOLETE)	N/A
033	118399000/0	FORK M6 x 24	£14.58	Add to
034	112292100/0	HEXAGON NUT M6	£1.47	Add to
035	118210200/0	CLIPS M6 x 24	£6.95	Add to
037	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
041	1136-0515-01	Plate-rear (OBSOLETE)	N/A
042	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
043	82650201/0	RIGHT STIFFENING 2004	£11.46	Add to
044	1136-0300-01	Reinforcement plate-L (OBSOLETE)	N/A
046	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
048	1136-0082-01	Cap (OBSOLETE)	N/A
061	1136-0337-01	Seat support (OBSOLETE)	N/A
062	25650055/0	FRONT SEAT STIFFENING 2007	£8.70	Add to
063	9997-0614-16	SCREW M6S [M6X35]	£5.21	Add to
068	25650056/0	REAR SEAT STIFFENING 2007	£8.70	Add to
069	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
070	125430205/1	SEAT SHOCK ABSORBER SPRING	£6.01	Add to
071	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
073	125943001/1	SCREW	£2.06	Add to
074	1136-0003-01	Square nut (OBSOLETE)	N/A
075	325122000/2	PROTECTION CAP	£2.06	Add to
076	1136-0321-01	Bracket (OBSOLETE)	N/A
079	122524970/2	SEAT FULCRUM PIN	£2.18	Add to
080	112155010/0	SELF-LOCKING NUT M8 A-LOK ACC.6S	£2.47	Add to
081	382500011/2	BRAKE PEDAL	£70.68	Add to
082	112789000/0	SCREW TE M5 x 12	£2.06	Add to
083	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
084	325755025/2	SEAT SWITCH SUPPORT	£6.27	Add to
085	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
091	25785057/0	BRACKET 2007	£18.81	Add to
