GRASS CATCHER

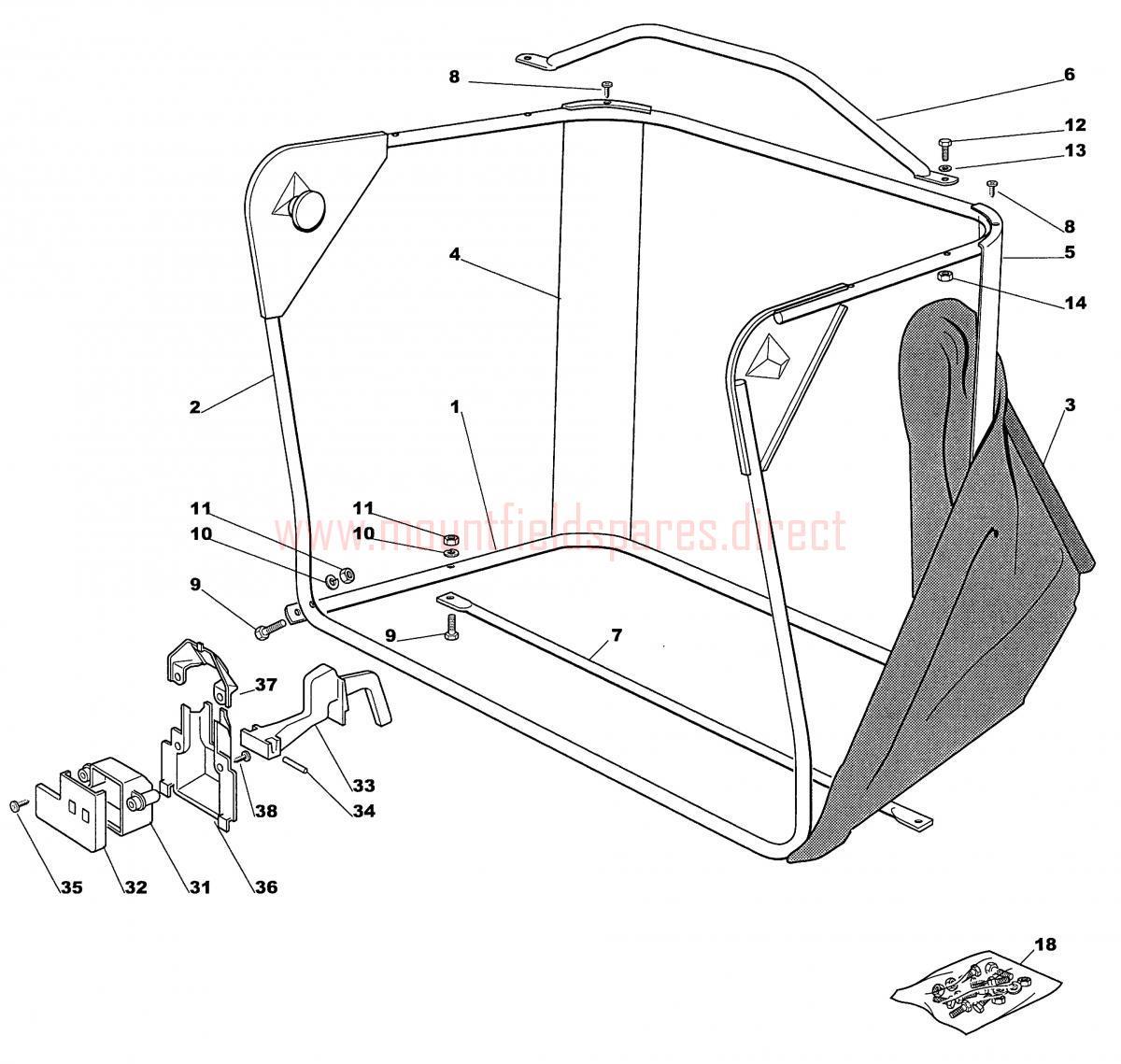

GRASS CATCHER assembly details for Mountfield 1228M-1228H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384801103/0LOWER GRASSCATCHER FRAME£21.67 Add to
002384801105/1UPPER GRASSCATCHER FRAME£84.77 Add to
0031136-0569-0Grasbag (OBSOLETE)N/A
004327010205/0RIGHT ANGLE SUPPORT£14.27 Add to
005327010207/0LEFT ANGLE SUPPORT£14.27 Add to
006384869051/0GRASSCATCHER HANDLE [BLACK]£10.77 Add to
007384650100/0LOWER FRAME REINFORCEMENT BAR£10.95 Add to
008112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
009112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
01019683-0010-0Washer (OBSOLETE)N/A
01119799-0631-0Nut (OBSOLETE)N/A
01219997-0635-1Screw (OBSOLETE)N/A
01319699-0035-0Flat washer (OBSOLETE)N/A
01419747-0631-0Locnut (OBSOLETE)N/A
01811136-0601-0Screse (OBSOLETE)N/A
03131136-0280-0Micrprotection (OBSOLETE)N/A
03231136-0281-0Protectiocover (OBSOLETE)N/A
03331136-0186-0Switclever (OBSOLETE)N/A
03431136-0007-0Pin (OBSOLETE)N/A
03539847-8013-1Screw (OBSOLETE)N/A
03631136-0282-0Micrprotection (OBSOLETE)N/A
03731136-0283-0Protectiocover (OBSOLETE)N/A
03839847-8019-1Screw (OBSOLETE)N/A
