CHASSIS

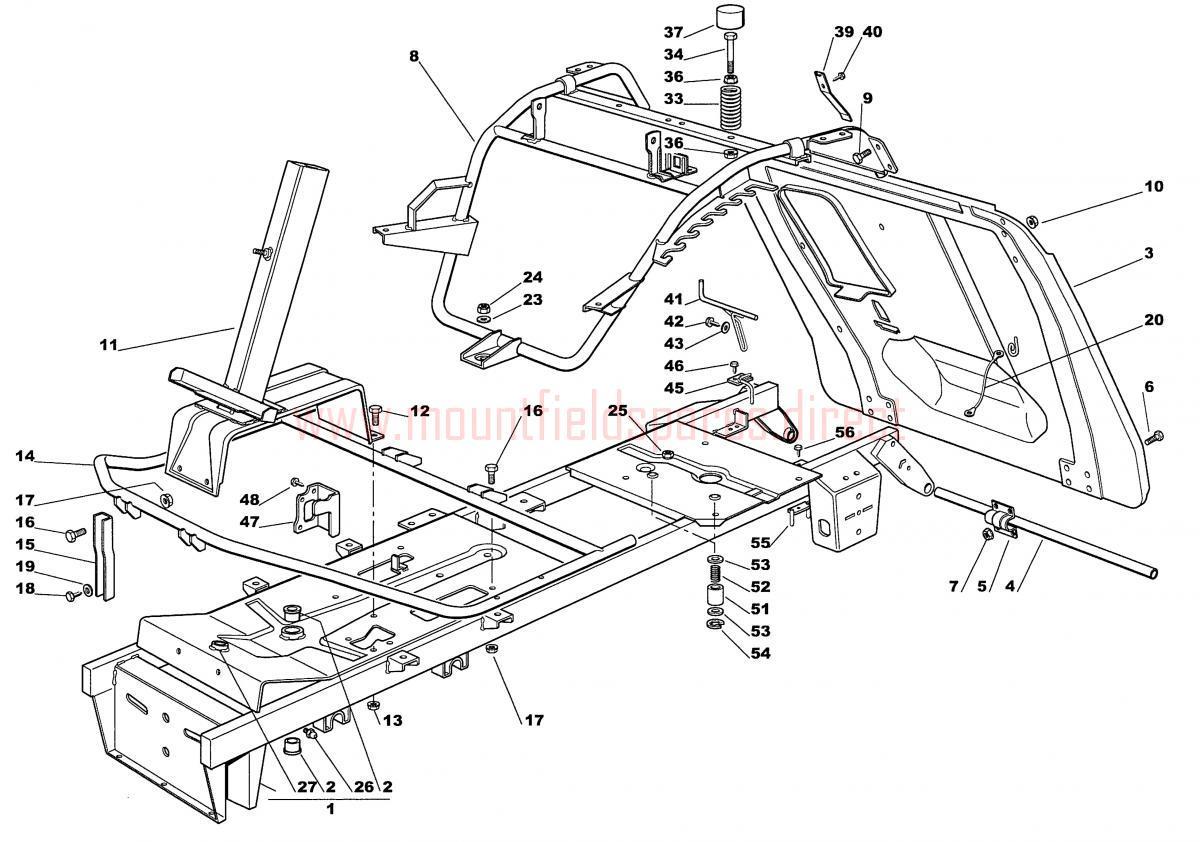

CHASSIS assembly details for Mountfield 1228M-1228H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1136-1505-01	Frame (OBSOLETE)	N/A
002	125034002/1	BUSH	£3.96	Add to
003	384545057/3	REAR PLATE [BLACK]	£170.61	Add to
004	1136-0371-01	Pivot (OBSOLETE)	N/A
005	325547012/1	BRAKE PEDAL PLATE	£4.52	Add to
006	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
007	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
008	384801127/0	SEAT SUPPORT FRAME	£159.45	Add to
009	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
010	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
011	1136-1504-01	Support (OBSOLETE)	N/A
014	1136-0595-01	Footboard holder (OBSOLETE)	N/A
015	327787025/0	FRAME SUPPORT	£3.55	Add to
018	9847-8216-16	SCREW (OBSOLETE)	N/A
019	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
020	384040300/0	CORD	£3.64	Add to
023	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
024	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
025	12500090/0	RIVET RIDER 2008	£4.01	Add to
026	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
027	125034001/0	BUSH	£4.23	Add to
033	1136-1240-01	Spring (OBSOLETE)	N/A
034	1136-1493-01	Screw (OBSOLETE)	N/A
037	325122000/2	PROTECTION CAP	£2.06	Add to
039	1136-0395-01	Spring (OBSOLETE)	N/A
040	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
041	127294001/0	REAR CONVEYOR GUIDE	£20.72	Add to
043	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
045	1136-0388-01	Belt guide (OBSOLETE)	N/A
047	327772095/0	SUPPORT BRACKET	£2.06	Add to
048	9847-7809-16	SCREW ST 3.5X9.5	£5.21	Add to
051	127047012/0	BUSH	£13.49	Add to
052	127430577/0	RETURN SPRING	£6.27	Add to
053	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
054	112000955/0	CIRCLIP D=8	£1.79	Add to
055	1136-1501-01	Belt guide (OBSOLETE)	N/A
