Mower Deck Lift

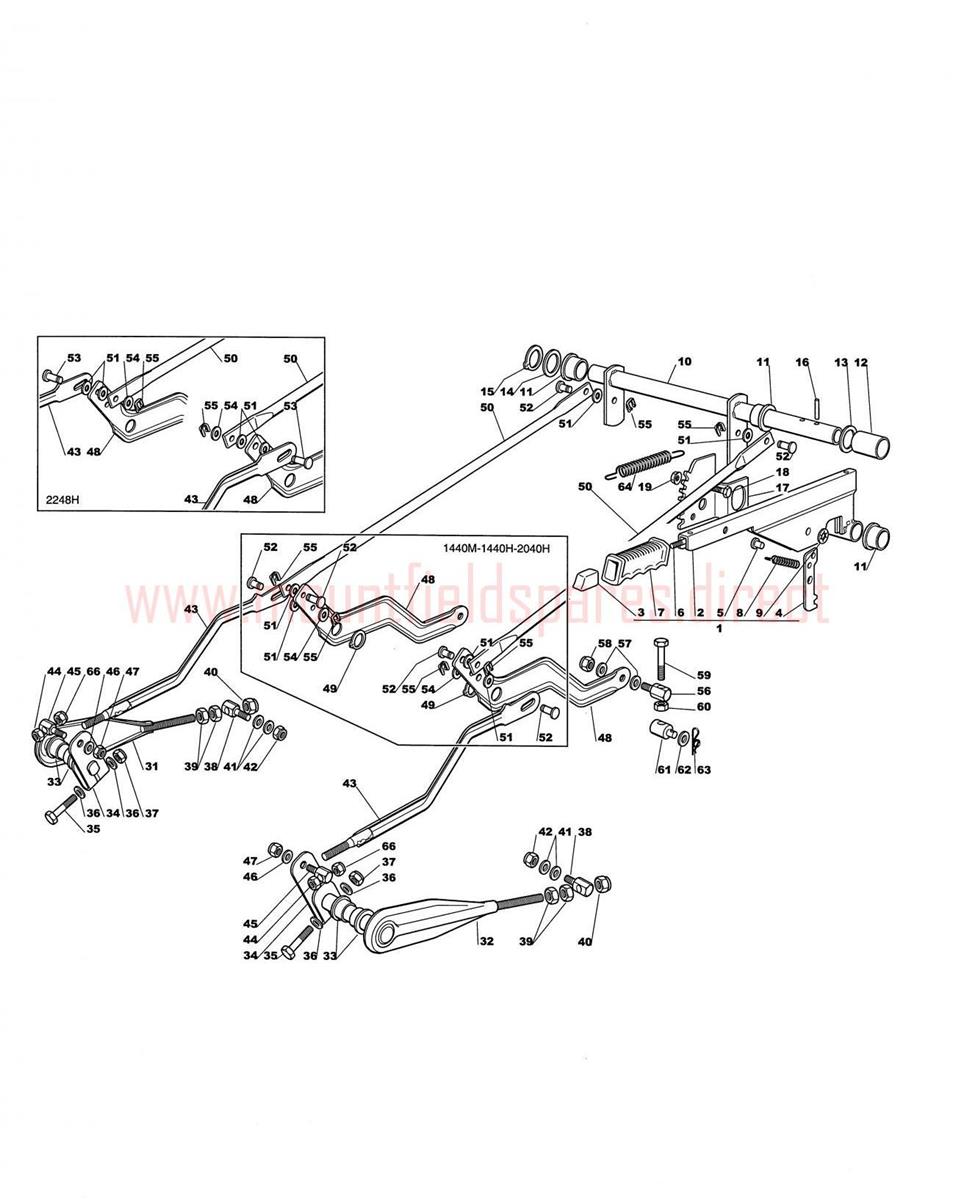

Mower Deck Lift assembly details for Mountfield 1440M-1440H-2040H-2248H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382300002/1	LEVER	£55.10	Add to
002	1136-0493-01	Lift lever (OBSOLETE)	N/A
003	125605000/1	BUTTON	£2.74	Add to
004	1136-0222-01	Dog (OBSOLETE)	N/A
005	1136-0227-01	Pin (OBSOLETE)	N/A
006	125033002/1	PUSH ROD	£4.52	Add to
007	125394504/1	KNOB	£2.87	Add to
008	1136-0203-01	Spring (OBSOLETE)	N/A
009	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
010	1136-0450-01	Lift axle (OBSOLETE)	N/A
011	1136-0078-01	Bushing (OBSOLETE)	N/A
012	125160025/1	SPACER	£6.55	Add to
013	322672153/0	ANTI-FRICTION WASHER 20.2 x 30 x 0.8	£2.06	Add to
014	112521410/0	WASHER M20 21 x 37 x 3	£1.91	Add to
015	112609260/0	CIRCLIP D=20	£2.02	Add to
016	112620310/0	PIN	£2.06	Add to
017	1136-0319-01	HEIGHT ADJUST SECTOR	£11.04	Add to
018	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
019	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
031	382318155/0	FRONT R/H FULCRUM LEVER	£25.75	Add to
031	1136-1041-01	Lift lever front-RH (OBSOLETE)	N/A
032	1136-0498-01	Lift lever front-LH (OBSOLETE)	N/A
032	1136-1042-01	Lift lever front-LH (OBSOLETE)	N/A
033	125040605/0	BUSH	£2.06	Add to
034	325318161/1	LEVER	£7.92	Add to
035	112692080/0	HEX-HEAD SCREW M8 x 90	£2.06	Add to
036	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
037	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
039	112295200/0	HEXAGON NUT M10	£1.79	Add to
040	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
041	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
043	382000477/3	CONNECTING ROD	£17.80	Add to
045	1136-0242-01	Pivot bolt (OBSOLETE)	N/A
048	325318153/2	REAR CUTTER DECK LEVER	£12.40	Add to
049	112609255/0	CIRCLIP D=19	£2.06	Add to
050	1136-0112-01	Connecting rod-rear (OBSOLETE)	N/A
051	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
052	125510053/2	PIN	£2.06	Add to
053	125510048/1	FIXING PIN	£2.32	Add to
055	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
059	112794980/0	SCREW 10 x 100	£2.06	Add to
061	125510070/1	PIN	£5.46	Add to
062	112523090/0	WASHER M10 11 x 40 x 2.5	£1.91	Add to
063	124487998/0	R CLIP D=2	£2.06	Add to
064	1136-0207-01	Spring (OBSOLETE)	N/A
066	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
