Mower Deck Lift

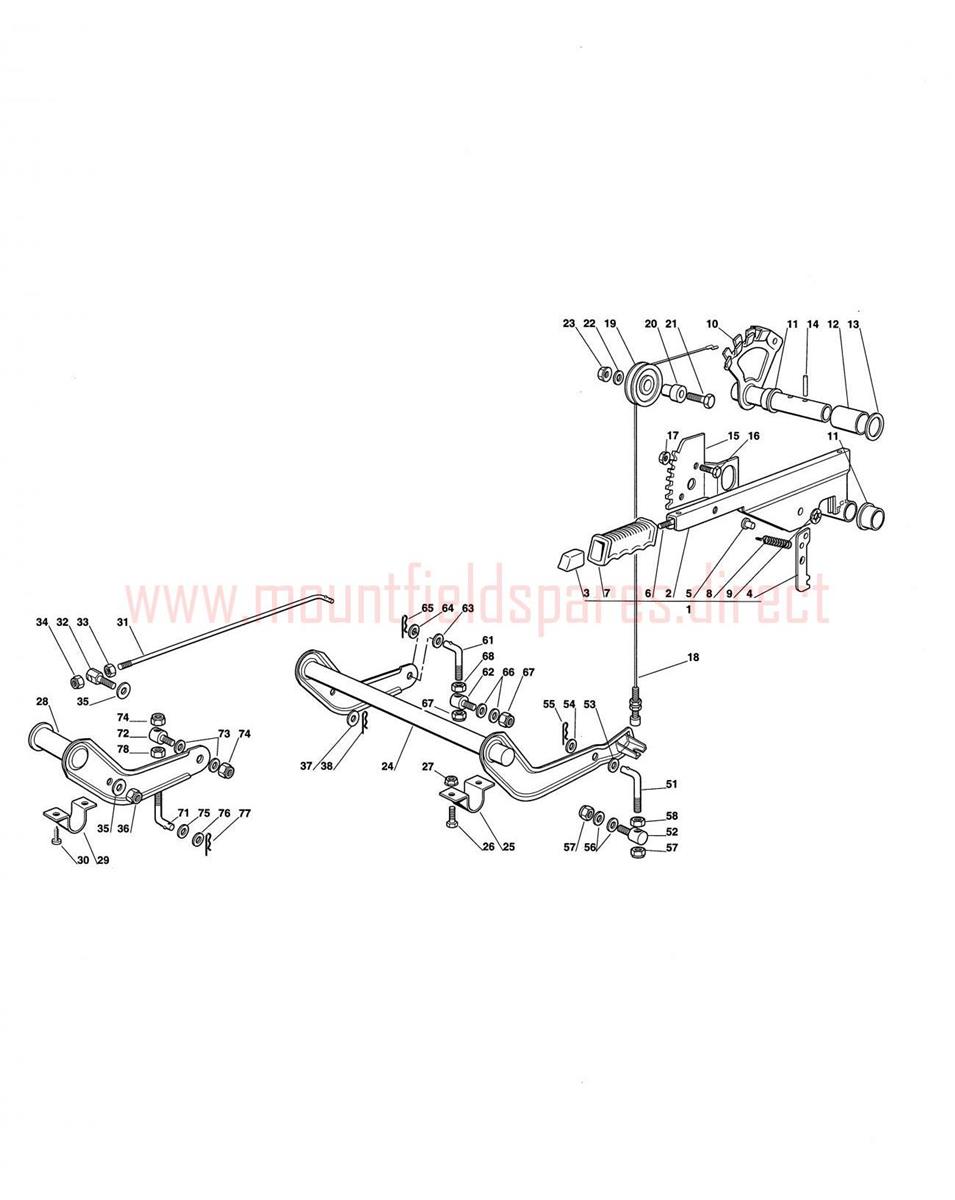

Mower Deck Lift assembly details for Mountfield 1438M SD (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382300002/1	LEVER	£55.10	Add to
002	1136-0493-01	Lift lever (OBSOLETE)	N/A
003	125605000/1	BUTTON	£2.74	Add to
004	1136-0222-01	Dog (OBSOLETE)	N/A
005	1136-0227-01	Pin (OBSOLETE)	N/A
006	125033002/1	PUSH ROD	£4.52	Add to
007	125394504/1	KNOB	£2.87	Add to
008	1136-0203-01	Spring (OBSOLETE)	N/A
009	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
010	1136-0444-01	Axle (OBSOLETE)	N/A
011	1136-0078-01	Bushing (OBSOLETE)	N/A
012	1136-0163-01	Spacer (OBSOLETE)	N/A
013	112521410/0	WASHER M20 21 x 37 x 3	£1.91	Add to
014	112620310/0	PIN	£2.06	Add to
015	1136-0319-01	HEIGHT ADJUST SECTOR	£11.04	Add to
016	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
017	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
018	182004603/0	DECK LIFT CABLE	£23.58	Add to
019	125601557/0	PULLEY	£7.63	Add to
020	1136-0232-01	Spacer (OBSOLETE)	N/A
021	9997-0850-16	SCREW M6S M8 x 50	£4.52	Add to
022	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
024	382000381/2	LIFT AXLE	£76.59	Add to
025	325547037/2	FIXING CLAMP	£3.69	Add to
026	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
027	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
028	1136-0492-01	Lift arm (OBSOLETE)	N/A
029	1136-0255-01	Clamp (OBSOLETE)	N/A
030	9847-8016-16	SCREW RXS B10 x 16	£2.32	Add to
031	125033013/0	CONNECTING ROD	£38.44	Add to
033	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
034	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
035	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
037	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
038	124487997/0	SPRING CLIP D=1.8	£2.06	Add to
051	125840003/2	TIE ROD	£12.82	Add to
052	125510024/1	PIN	£5.46	Add to
053	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
054	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
057	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
058	112295200/0	HEXAGON NUT M10	£1.79	Add to
071	125840012/1	CUTTING DECK TIE ROD	£14.73	Add to
