Brake and Gear Shifter Control

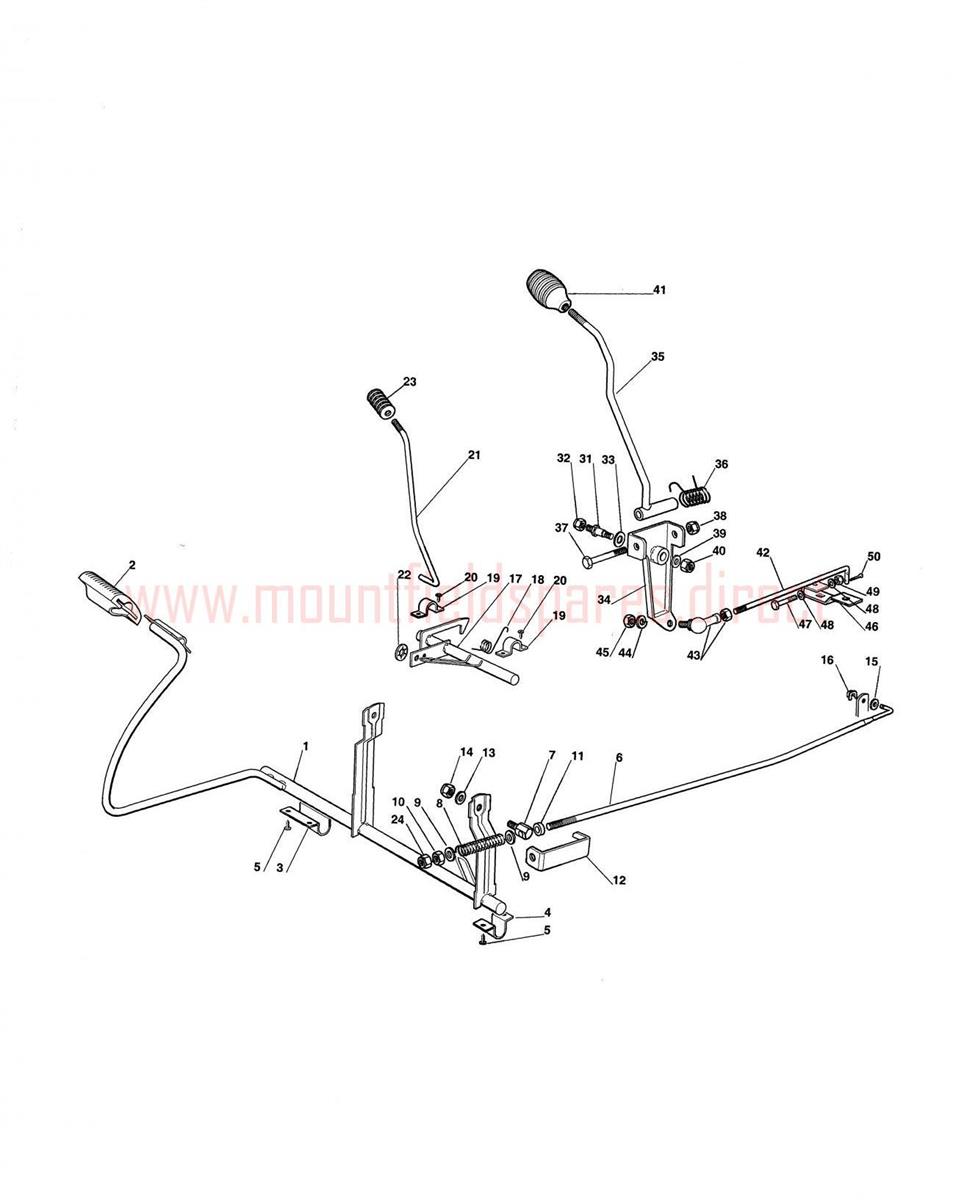

Brake and Gear Shifter Control assembly details for Mountfield 1438M SD (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-0506-01Brake pedal (OBSOLETE)N/A
002125110269/0BRAKE PEDAL COVER£4.10 Add to
00325547039/0RIGHT PLATE 2007£8.70 Add to
0041136-0255-01Clamp (OBSOLETE)N/A
0059847-8016-16SCREW RXS B10 x 16£2.32 Add to
0061136-0116-01Brake rod (OBSOLETE)N/A
0071136-0244-01Pivot bolt (OBSOLETE)N/A
008125430236/0BRAKE ROD SPRING£6.79 Add to
009112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
010112295200/0HEXAGON NUT M10£1.79 Add to
0111136-0172-01Spacer (OBSOLETE)N/A
012325774275/1CLAMP BRACKET£3.83 Add to
013112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
015112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
016112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
0171136-0441-01Axle (OBSOLETE)N/A
0181136-0217-01Spring (OBSOLETE)N/A
019325547049/0AXLE FIXING PLATE£3.55 Add to
02125033043/0BRAKE ROD TC2000 2007£9.94 Add to
022112604898/0STARLOCK WASHER D=7£2.02 Add to
023127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
024112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
031125510035/0FULCRUM PIN£4.10 Add to
032112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
033322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
0341136-0529-01Gear lever bracket (OBSOLETE)N/A
0351136-0490-01Gear lever (OBSOLETE)N/A
036125430226/0DRIVE CONTROL LEVER SPRING WZ TCJ£2.18 Add to
037112692050/0HEX-HEAD SCREW£1.91 Add to
038112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
039112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
041125394510/0CONTROL KNOB [BLACK]£4.35 Add to
042125033012/0GEAR CONNECTING ROD£9.85 Add to
043122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
044112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
045112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
0461136-0187-01Gearshift arm (OBSOLETE)N/A
047112689500/0SCREW M6 x 40£2.06 Add to
050112141418/0SPLIT PIN 3 x 20£1.76 Add to
