Electrical Equipment

Electrical Equipment assembly details for Mountfield 1228M - 1228H (20100406) 2005 model

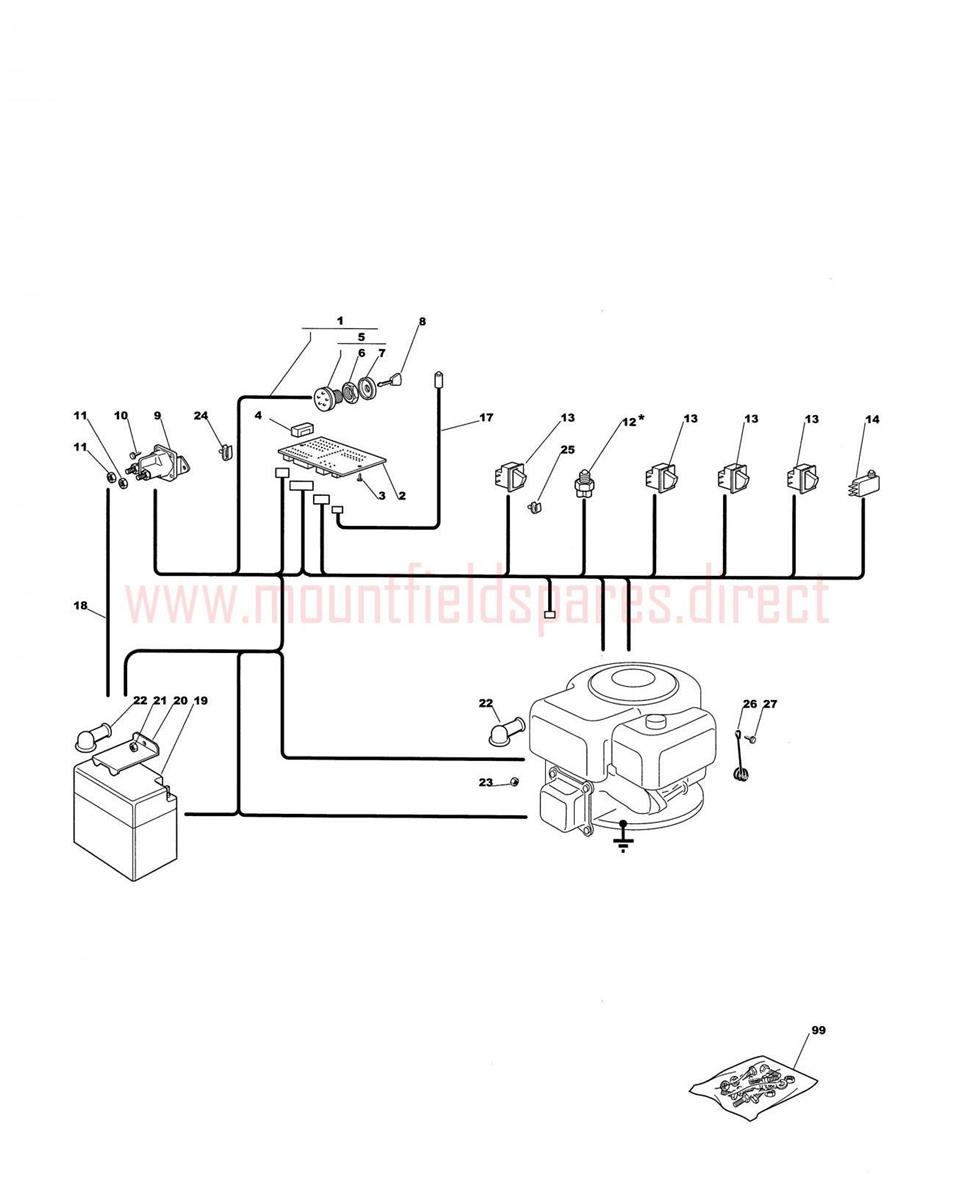

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1136-1814-01	Harness (OBSOLETE)	N/A
002	125722415/1	PC BOARD [ THIS ITEM CANNOT BE RETURNED ]	£105.95	Add to
003	112727810/0	SELF-TAP SCREW 3.5 x 13	£2.06	Add to
004	133340033/0	FUSE 6.3A	£5.05	Add to
005	118450065/1	STARTING SWITCH	£32.99	Add to
006	118400861/0	LOCKING RING	£5.32	Add to
007	118565351/0	LOCKING RING COVER	£6.14	Add to
008	1134-2848-01	IGNITION KEY (2 PCS)	£13.77	Add to
009	118736113/0	SOLENOID	£39.22	Add to
010	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
011	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
012	786201	Neutral start switch (OBSOLETE)	N/A
013	119410622/1	MICRO SWITCH N.O.	£7.10	Add to
014	119410605/1	MICRO SWITCH	£36.77	Add to
017	125065014/1	CARD ALARM SIGNAL CABLE	£13.23	Add to
018	127065050/0	STARTER CONNECT CABLE	£6.69	Add to
019	118120007/0	BATTERY 12V 18AH [No Returns on This item]	£103.58	Add to
020	327772099/1	BATTERY FIXING CLAMP	£5.05	Add to
021	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
022	118564861/1	RED RUBBER TERMINAL COVER	£7.90	Add to
023	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
024	133320506/0	CABLE CLIP	£1.79	Add to
025	133320504/0	CABLE CLIP	£2.06	Add to
026	1136-1484-01	Spring (OBSOLETE)	N/A
027	112735122/0	HEX-HEAD SELF-TAP SCREW 6.3 x 16	£2.06	Add to
099	1136-1238-01	Key outfit Schraubensatz (OBSOLETE)	N/A
