STEERING 4WD

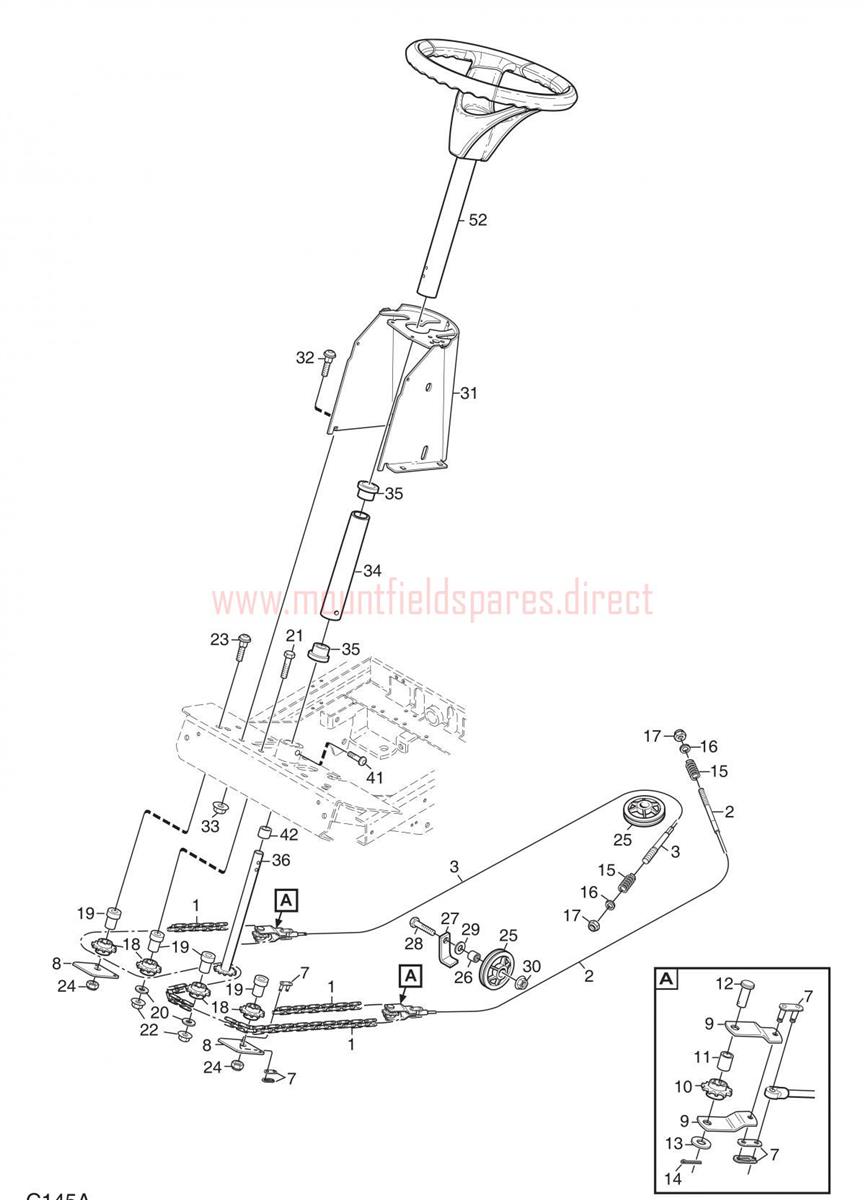

STEERING 4WD assembly details for Mountfield MSPL2011_20110321_4155H 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6374-10	CHAIN (129 LINKS)	£27.27	Add to
002	1134-2817-03	STEERING CABLE L/H	£24.95	Add to
003	1134-2817-04	STEERING CABLE R/H	£24.95	Add to
007	187060100/0	STEERING CHAIN LINK	£6.01	Add to
008	1134-5652-01	ATTACHMENT PLATE	£5.46	Add to
009	1134-5651-01	BRACKET	£4.35	Add to
010	1134-2816-01	SPROCKET	£10.77	Add to
011	1134-0041-02	BUSH	£10.09	Add to
012	1134-4817-01	PIN	£12.96	Add to
013	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
014	9599-0054-02	SPLIT PIN	£2.32	Add to
015	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
016	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
017	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
019	1134-5653-01	SPACER	£9.14	Add to
021	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
022	9739-1031-22	NUT M10	£2.32	Add to
023	9897-1060-12	SCREW M10 x 60	£3.28	Add to
024	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
025	1134-0072-02	STEERING PULLEY	£7.78	Add to
026	1134-0041-01	BUSH	£9.41	Add to
027	1134-3022-01	BRACKET	£62.97	Add to
028	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
031	1134-5349-04	STEERING CONSOLE [BLACK]	£134.62	Add to
032	9897-0820-16	SCREW M8 x 20	£2.32	Add to
033	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
034	1134-1305-05	LOWER STEERING COLUMN	£47.97	Add to
035	1134-1901-01	PLASTIC BUSH	£12.27	Add to
036	1137-0079-04	STEERING ROD ASSEMBLY	£46.61	Add to
041	9893-0616-16	SCREW M6 x 16	£2.47	Add to
042	1134-2837-03	SPACER	£11.46	Add to
052	1134-5496-03	STEERING WHEEL ASSY	£143.37	Add to
