BODY WORK

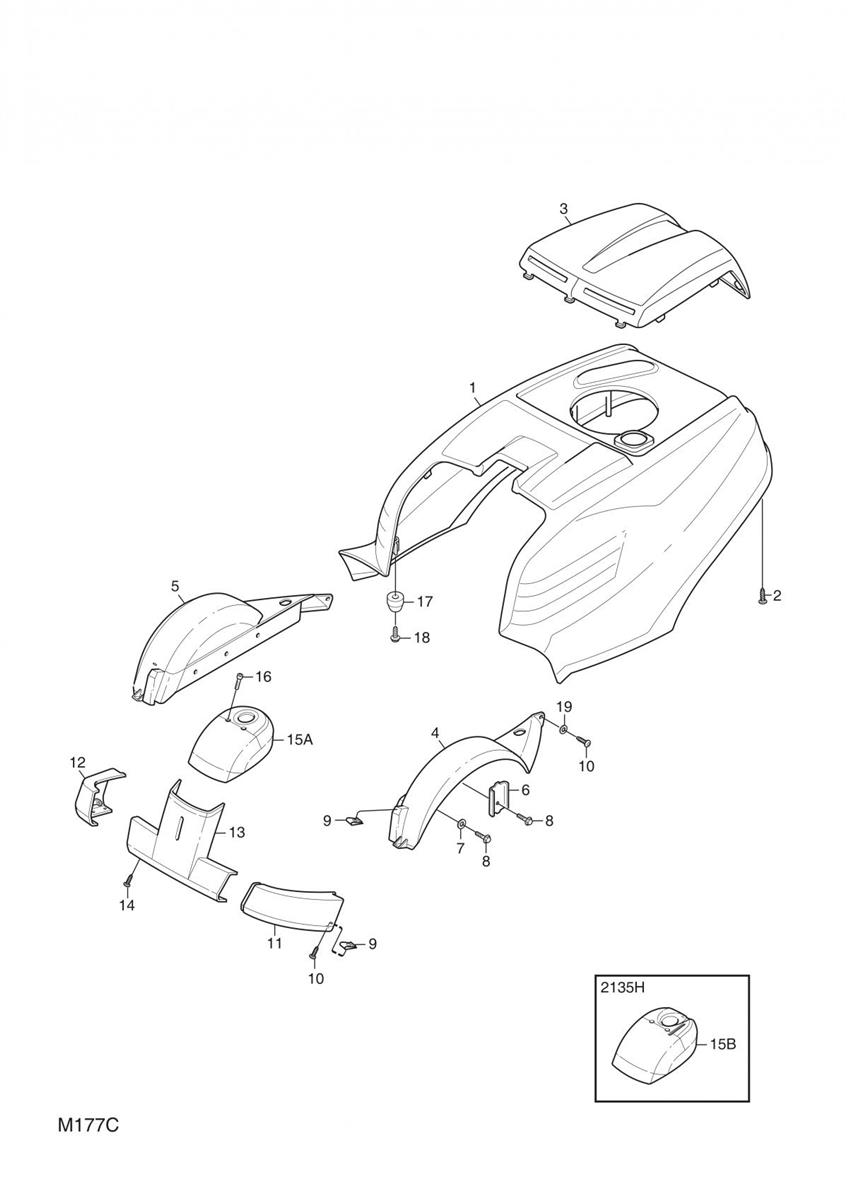

BODY WORK assembly details for Mountfield 2125M-2135H 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5392-01	ENGINE HOOD (RED)	£362.50	Add to
002	9838-9530-12	SCREW K50 x 30	£2.47	Add to
003	1134-5393-02	ENGINE COVER	£81.55	Add to
004	1134-5307-03	Mud guard-LH, black (OBSOLETE)	N/A
005	1134-5307-04	Mud guard-RH, black (OBSOLETE)	N/A
006	1137-0088-01	SUPPORT PLATE	£2.74	Add to
007	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
008	1134-4242-01	SPACER WASHER	£4.78	Add to
009	1134-4176-01	CLIP	£5.19	Add to
010	9893-0616-16	SCREW M6 x 16	£2.47	Add to
011	1134-5306-03	BUMPER FRONT-LH (BLACK)	£45.10	Add to
012	1134-5306-04	BUMPER FRONT-RH (BLACK)	£45.10	Add to
013	1134-5305-02	FRONT LOWER (RED)	£90.98	Add to
014	9893-0616-16	SCREW M6 x 16	£2.47	Add to
015	1134-5304-02	FRONT UPPER (RED)	£63.60	Add to
016	9946-0525-16	SCREW M5 x 25	£2.47	Add to
017	1134-4790-02	HOOD GUIDE	£3.55	Add to
018	9838-9530-12	SCREW K50 x 30	£2.47	Add to
019	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
15A	1134-5304-02	FRONT UPPER (RED)	£63.60	Add to
15B	1134-5320-04	FRONT UPPER PART [RED] HST	£58.87	Add to
