FRAME

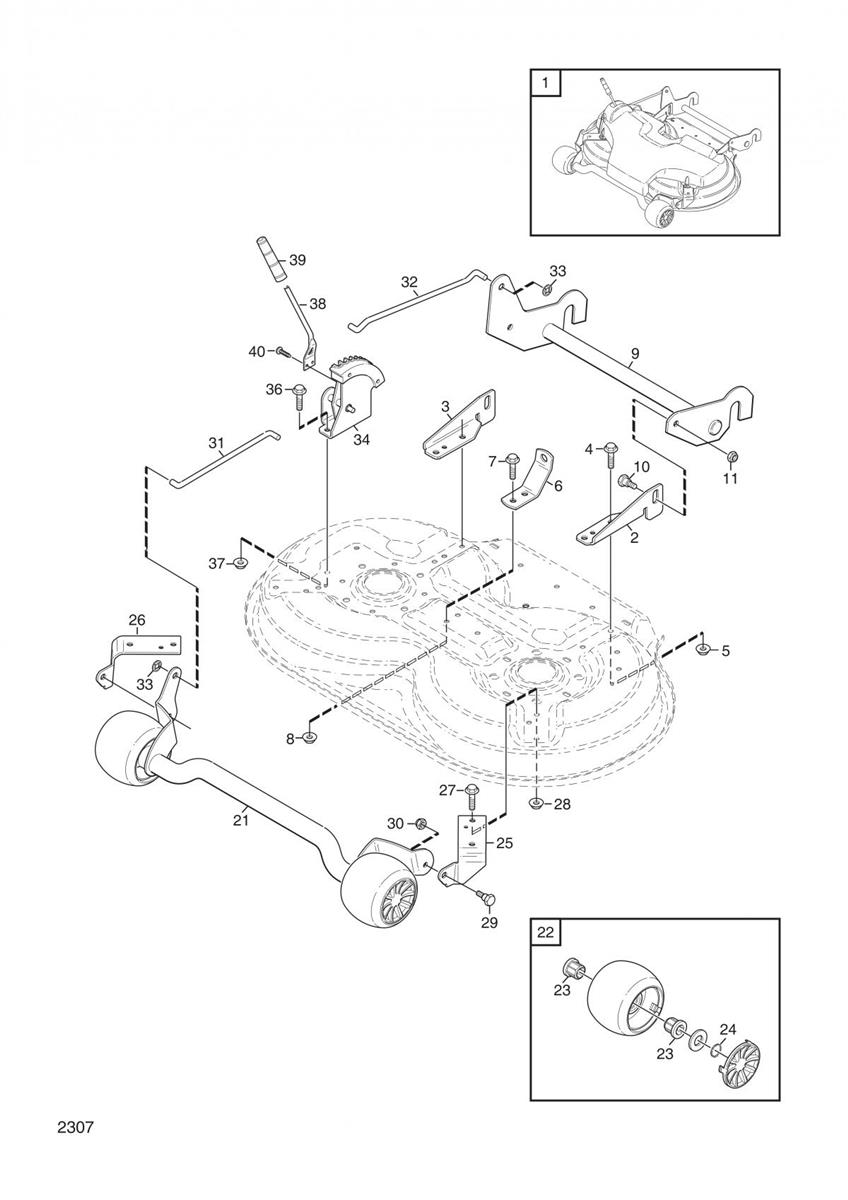

FRAME assembly details for Mountfield 1125M 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7383-02	MOWER DECK ASSY-RED (PRIMO) 2011	£915.71	Add to
002	1134-6587-01	HOLDER-LH	£15.52	Add to
003	1134-6587-02	HOLDER-RH	£15.52	Add to
004	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	1134-6591-01	LIFT LOOP	£9.49	Add to
009	1134-6598-01	MOUNTING FRAME ASSY	£55.89	Add to
010	1134-0240-00	SCREW	£9.14	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
021	1134-6735-01	FRONT WHEEL AXLE	£184.24	Add to
022	1134-9139-01	SUPPORT WHEEL KIT	£77.29	Add to
023	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
024	112609260/0	CIRCLIP D=20	£2.02	Add to
025	1134-6594-01	BRACKET-LH	£16.11	Add to
026	1134-6594-02	BRACKET-RH	£16.11	Add to
031	1134-6599-01	Strut (OBSOLETE)	N/A
032	1134-6600-01	STRUT	£10.95	Add to
033	MX585	PUSH ON FIXING	£3.64	Add to
034	1134-6755-01	LEVEL BRACKET ASSEMBLY	£53.06	Add to
038	1111-2816-01	HEIGHT ADJUST LEVER	£10.50	Add to
039	322399808/0	HEIGHT ADJUST KNOB	£2.87	Add to
040	9893-0616-16	SCREW M6 x 16	£2.47	Add to
