ELECTRIC SYSTEM

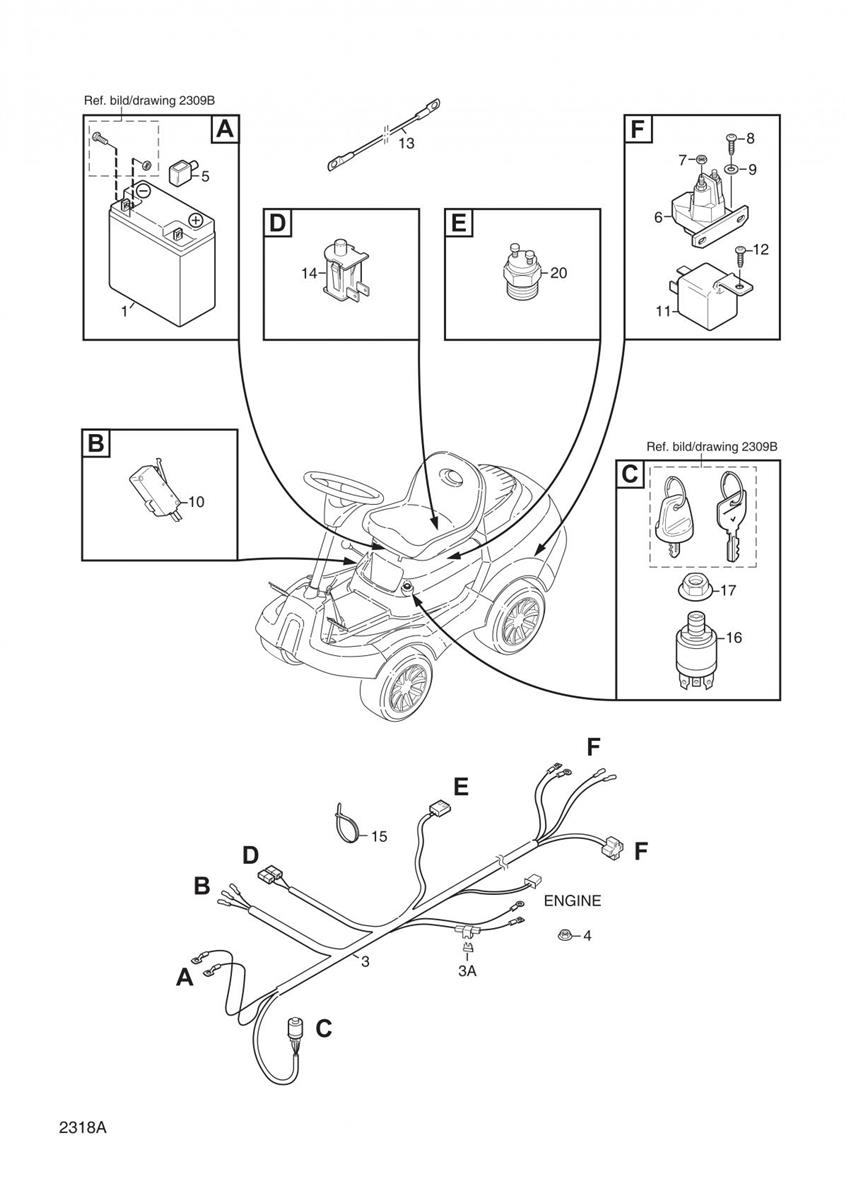

ELECTRIC SYSTEM assembly details for Mountfield 1125M 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6677-01Battery (OBSOLETE)N/A
0031134-6498-01WIRE HARNESS (PRIMO)£150.18 Add to
004112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0051134-2310-01GUARD CAP (+)£9.28 Add to
006118736112/0SOLENOID£39.80 Add to
0079743-5121-32LOCK NUT 5/16"£1.79 Add to
0089838-8822-19SCREW K60 x 22£2.06 Add to
009112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0109400-0360-01MICRO SWITCH£8.60 Add to
0111134-2871-03STARTER RELAY [5 SPADE]£45.26 Add to
0131134-4702-01CABLE (+)£26.18 Add to
0141134-3156-02SEAT SWITCH [GREY]£47.97 Add to
0159579-0003-00CABLE HOLDER£2.06 Add to
0161134-4093-01IGNITION SWITCH£67.05 Add to
0171134-4749-01NUT£5.05 Add to
0201134-7381-01SWITCH-NEUTRAL£42.53 Add to
03A1134-3496-06FUSE 20A£2.06 Add to
