CHASSIS

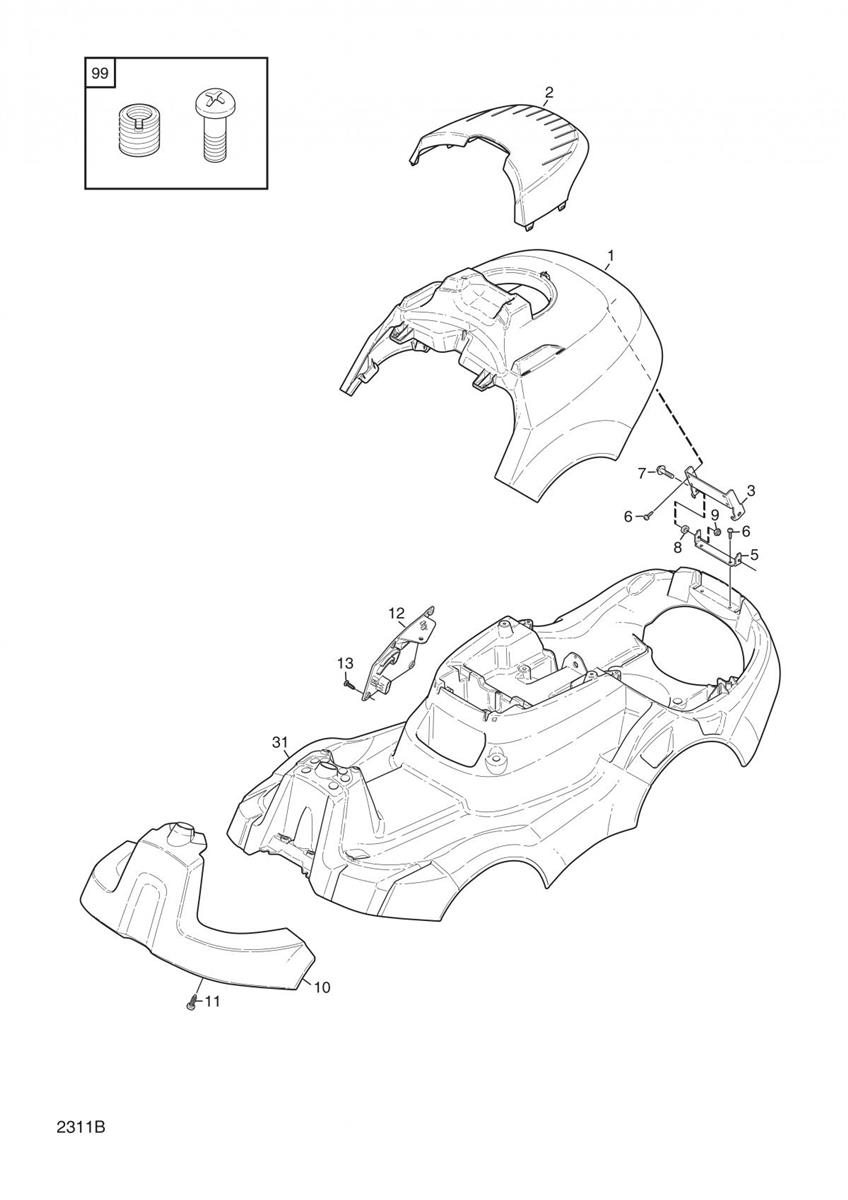

CHASSIS assembly details for Mountfield 1125M 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6711-02	ENGINE HOOD-RED	£143.37	Add to
002	1134-6712-01	ENGINE COVER	£52.06	Add to
003	1134-6583-01	BRACKET-LH	£5.66	Add to
005	1134-6584-01	BRACKET	£5.66	Add to
006	9838-8822-19	SCREW K60 x 22	£2.06	Add to
007	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
008	1134-5114-01	SPACER	£9.54	Add to
009	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
010	1134-6708-02	FRONT COVER-RED	£46.75	Add to
012	1134-6581-04	PTO-COVER (BLACK)	£50.70	Add to
031	1137-0022-01	Chassis (OBSOLETE)	N/A
099	1134-7498-01	REPAIR KIT-THREAD INSERT	£29.55	Add to
