ASSEMBLY PARTS

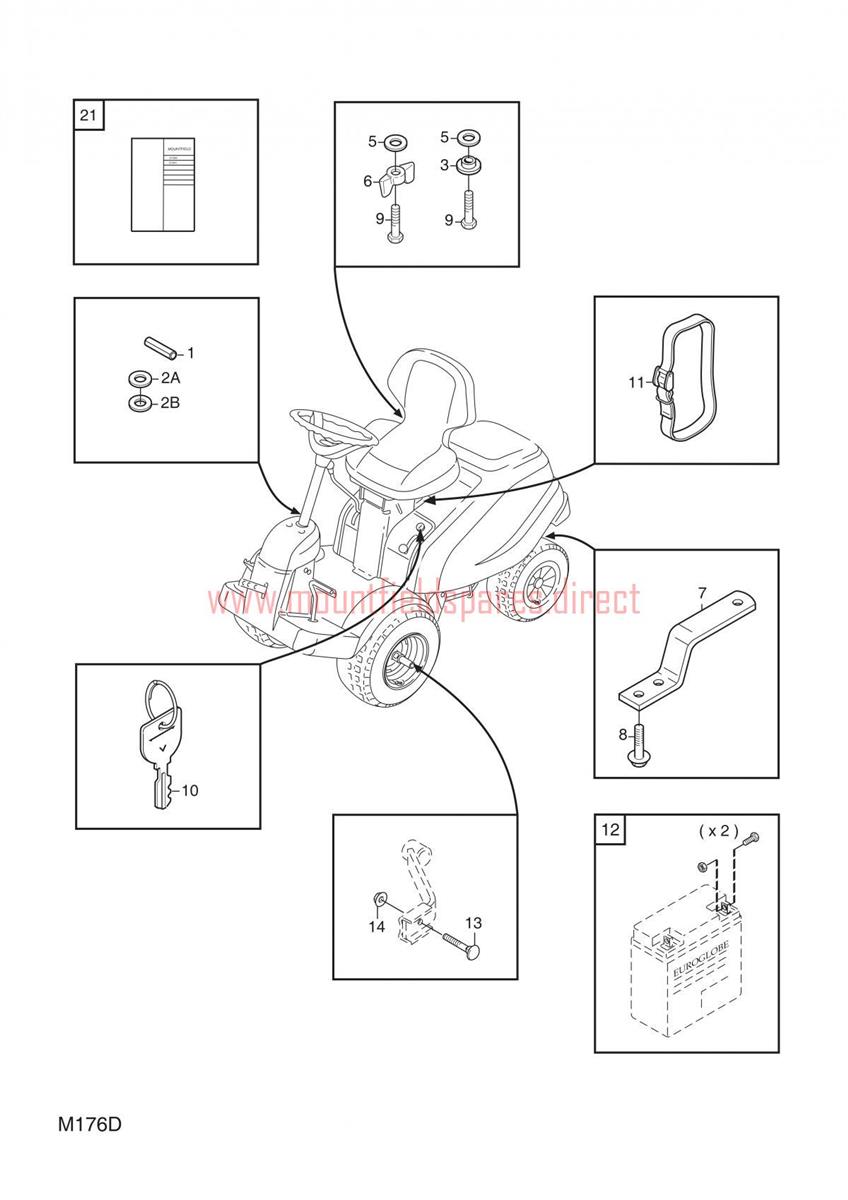

ASSEMBLY PARTS assembly details for Mountfield 2125M-2135H 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019595-0262-00LOCATING PIN£2.06 Add to
0031134-4185-01FLANGE WASHER£6.71 Add to
005112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0061134-4481-01WING NUT (M8)£2.06 Add to
0071134-4627-01TOWING STRAP£17.45 Add to
0089959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
009112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
0101134-4734-01IGNITION KEY£17.72 Add to
0111134-5245-01BATTERY STRAP£22.91 Add to
0121134-6113-01BATTERY SCREW PACK£12.82 Add to
0139898-1035-16SCREW 10 x 35£3.15 Add to
0149739-1031-22NUT M10£2.32 Add to
0218211-0090-90Owner’s manual (OBSOLETE)N/A
02A9699-0103-02WASHER£2.47 Add to
02B9699-0114-02WASHER 16 x 38 x 1£2.32 Add to
