WHEELS

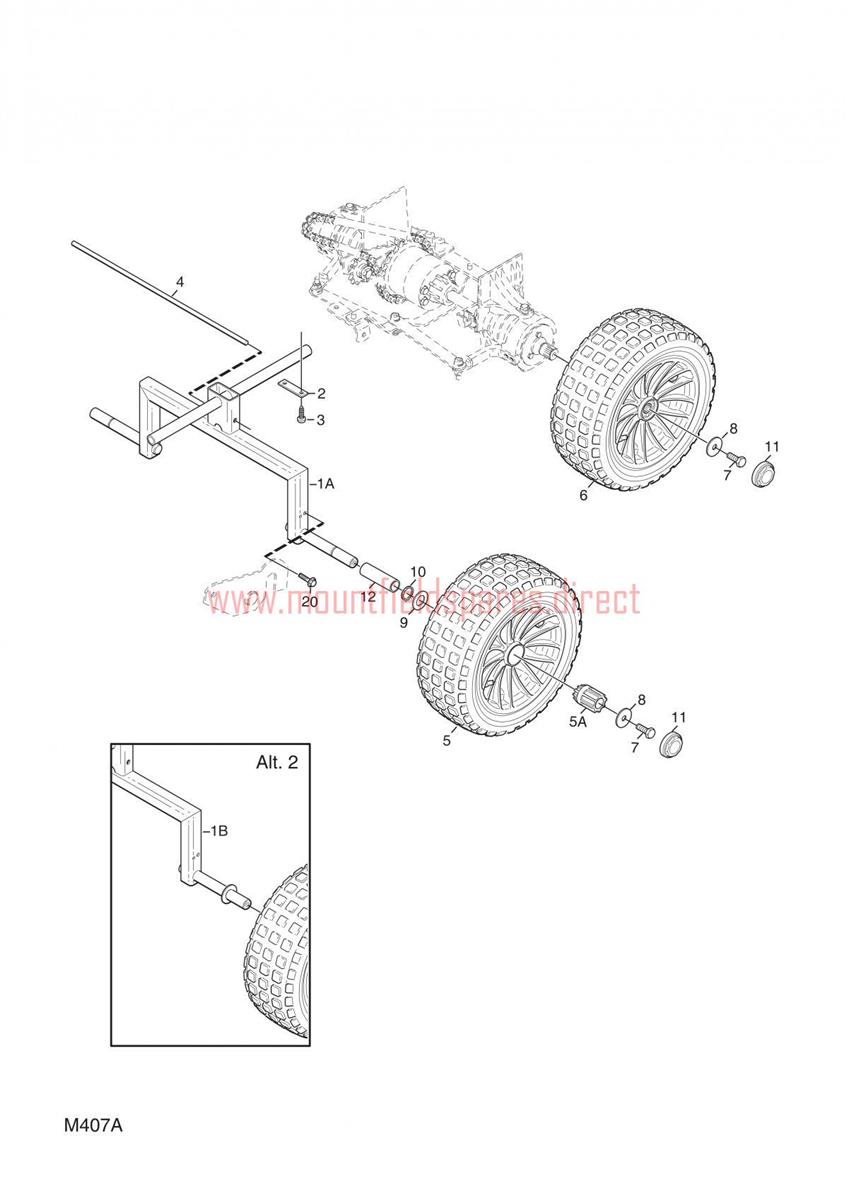

WHEELS assembly details for Mountfield 1125M 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1134-6527-01	CLAMP	£5.66	Add to
003	9838-8822-19	SCREW K60 x 22	£2.06	Add to
004	1134-6569-01	WHEEL AXLE SPRING	£9.54	Add to
005	1134-7244-01	FRONT WHEEL ASSEMBLY	£101.13	Add to
006	1134-7243-01	REAR WHEEL ASSEMBLY (OBSOLETE) (OBSOLETE)	N/A
007	9997-1020-16	SCREW M6S M10 x 20	£2.06	Add to
008	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
009	1134-0341-01	WASHER	£7.10	Add to
010	112609260/0	CIRCLIP D=20	£2.02	Add to
011	1134-6510-01	HUB CAP	£7.10	Add to
012	1134-7791-01	SERVICE KIT FRONTWHEEL PRIMO	£24.26	Add to
01A	1134-6540-01	FRONT WHEEL AXLE	£97.05	Add to
01B	1134-7787-01	FRONT AXLE ASSY	£77.85	Add to
020	1134-4242-01	SPACER WASHER	£4.78	Add to
05A	1134-9140-01	WHEEL BUSH KIT (2 Pieces)	£11.59	Add to
